NCP92L-BEPHKC (2008)

Toyota Vios (China)

Production Feb 2008 - Aug 2010
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

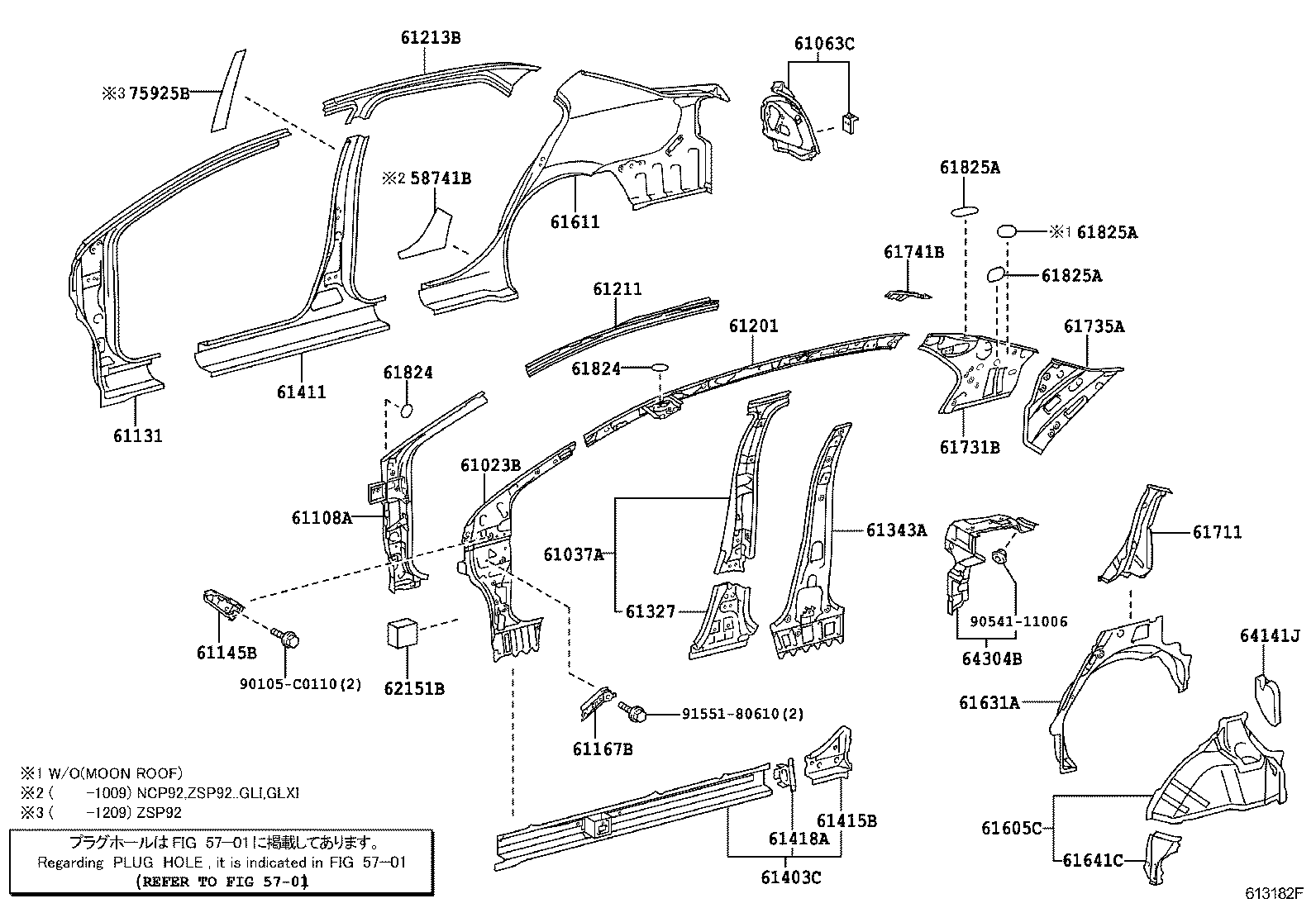

ILLUST NO. 1 OF 2(0802- )

Click highlighted areas on diagram

RH

diagram 5701 58741B 61023B 61037A 61063C 61108A 61131 61145B 61167B 61201 61211 61213B 61327 61343A 61403C 61411 61415B 61418A 61605C 61611 61631A 61641C 61711 61731B 61735A 61741B 61824 61824 61825A 61825A 61825A 62151B 64141J 64304B 75925B 90105C0110 9054111006 9155180610
Part # Description Qty Price
58741B - PROTECTOR, QUARTER PANEL, RH
58741-52210

NCP92,ZSP92..GLI,GLXI

 1
58741-0D100

NCP92,ZSP92..GLI,GLXI

 1
61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH
61023-0D130

NCP92,ZSP92

 1
61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61037-0D906

NCP92,ZSP92

 1
61063C - TROUGH SUB-ASSY, LUGGAGE DOOR OPENING, FRONT RH
61063-0D010

NCP92,ZSP92

 1
61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61108-0D070

NCP92,ZSP92

 1
61131 - PILLAR, FRONT BODY, UPPER OUTER RH
61131-0D120

NCP92,ZSP92..GLI,GLXI

 1
61145B - GUSSET, FRONT BODY PILLAR, LOWER RH
61145-0D040

NCP92,ZSP92

 1
61167B - BRACE, FRONT BODY PILLAR, LOWER
61167-0D020

NCP92,ZSP92

 2
61201 - RAIL SUB-ASSY, ROOF SIDE, RH
61201-0D050

NCP92,ZSP92

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-0D090

NCP92,ZSP92

 1
61213B - RAIL, ROOF SIDE, OUTER NO.2 RH
61213-0D090

NCP92,ZSP92

 1
61327 - REINFORCEMENT, CENTER BODY PILLAR, OUTER RH
61327-0D100

NCP92,ZSP92

 1
61343A - PILLAR, CENTER BODY, INNER RH
61032-0D040

NCP92,ZSP92

 1
61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH
61403-0D100

NCP92,ZSP92

 1
61411 - PANEL, ROCKER, OUTER RH
61411-0D140

NCP92,ZSP92..GLI,GLXI

 1
61415B - EXTENSION, ROCKER, OUTER RH
61415-0D020

NCP92,ZSP92

 1
61418A - REINFORCEMENT, ROCKER PANEL, RH
61418-0D030

NCP92,ZSP92

 1
61605C - PANEL SUB-ASSY, QUATER, REAR INNER RH
61605-0D010

NCP92,ZSP92

 1
61611 - PANEL, QUARTER, RH
61601-0D180

NCP92,ZSP92..GLI,GLXI

 1
61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH
61631-52140

NCP92,ZSP92

 1
61641C - GUSSET, QUARTER WHEEL HOUSE, FRONT RH
61641-0D070

NCP92,ZSP92

 1
61711 - PANEL, ROOF SIDE, OUTER RH
61711-52150

NCP92,ZSP92

 1
61731B - PANEL, ROOF SIDE, INNER RH
61731-0D090

NCP92,ZSP92

 1
61735A - PANEL, ROOF SIDE, INNER REAR RH
61735-0D030

NCP92,ZSP92

 1
61741B - REINFORCEMENT, BACK WINDOW OPENING, RH
61741-0D040

NCP92,ZSP92

 1
61824 - PLATE, NOISE CONTROL, NO.1
61824-0D020

NCP92,ZSP92

 4
61824 - PLATE, NOISE CONTROL, NO.1
61824-0D020

NCP92,ZSP92

 4
61825A - PLATE, NOISE CONTROL, NO.2
61825-0D020

NCP92,ZSP92

 6
61825A - PLATE, NOISE CONTROL, NO.2
61825-0D020

NCP92,ZSP92

 6
61825A - PLATE, NOISE CONTROL, NO.2
61825-0D020

NCP92,ZSP92

 6
62151B - PAD, COWL SIDE SILENCER
62151-0D020

NCP92,ZSP92

 2
64141J - SILENCER, QUATER PANEL, RH
64141-0D010

NCP92,ZSP92

 1
64304B - REINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, RH
64304-0D060

NCP92,ZSP92

 1
Common parts
90105-C0110
90541-11006
91551-80610
Linked diagrams
5701

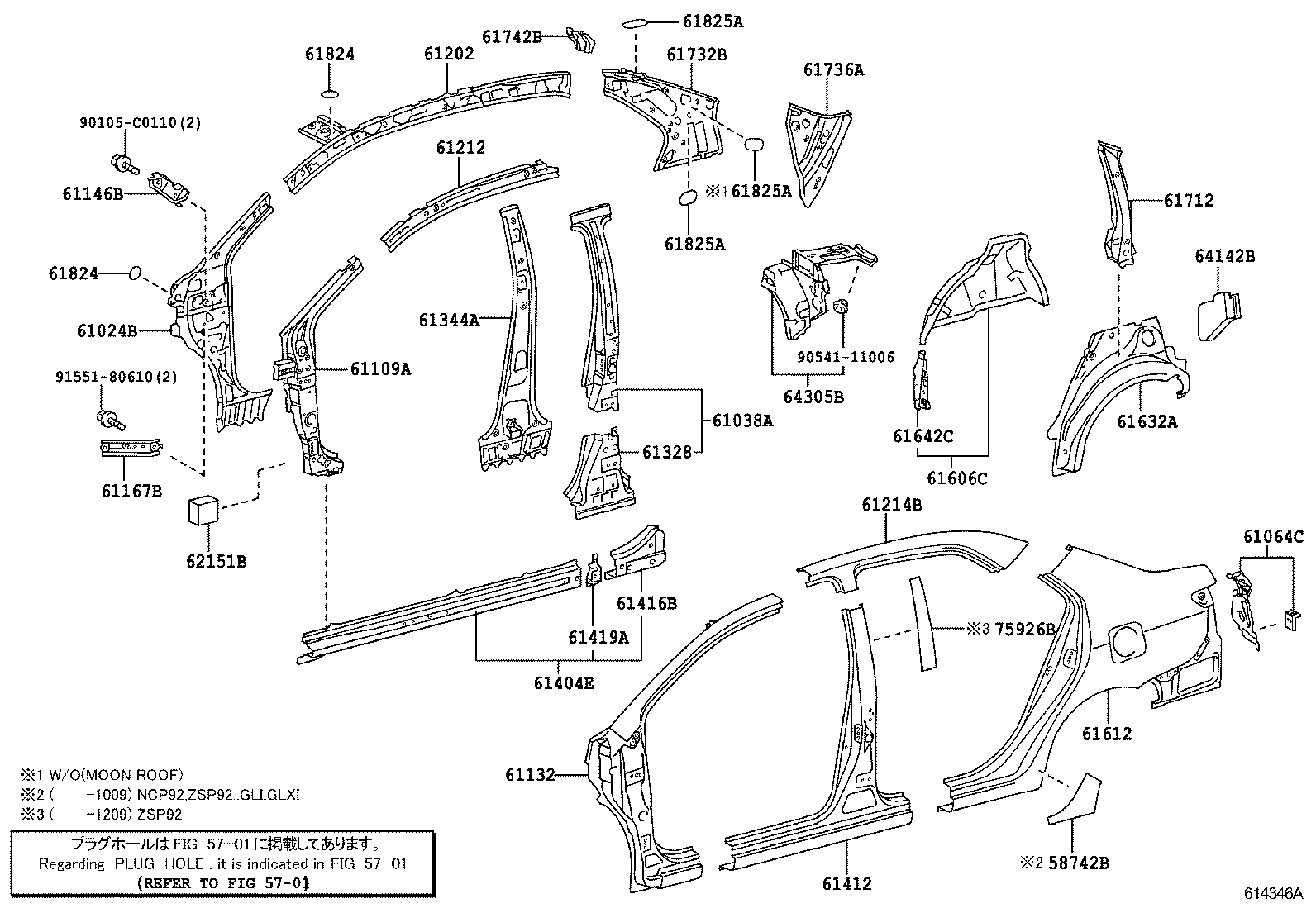

ILLUST NO. 2 OF 2(0802- )

Click highlighted areas on diagram

LH

diagram 5701 58742B 61024B 61038A 61064C 61109A 61132 61146B 61167B 61202 61212 61214B 61328 61344A 61404E 61412 61416B 61419A 61606C 61612 61632A 61642C 61712 61732B 61736A 61742B 61824 61824 61825A 61825A 61825A 62151B 64142B 64305B 75926B 90105C0110 9054111006 9155180610
Part # Description Qty Price
58742B - PROTECTOR, QUARTER PANEL, LH
58742-0D100

NCP92,ZSP92..GLI,GLXI

 1
58742-52240

NCP92,ZSP92..GLI,GLXI

 1
61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH
61024-0D130

NCP92,ZSP92

 1
61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61038-0D906

NCP92,ZSP92

 1
61064C - TROUGH SUB-ASSY, LUGGAGE DOOR OPENING, FRONT LH
61064-0D010

NCP92,ZSP92

 1
61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61109-0D070

NCP92,ZSP92

 1
61132 - PILLAR, FRONT BODY, UPPER OUTER LH
61132-0D120

NCP92,ZSP92..GLI,GLXI

 1
61146B - GUSSET, FRONT BODY PILLAR, LOWER LH
61146-0D040

NCP92,ZSP92

 1
61167B - BRACE, FRONT BODY PILLAR, LOWER
61167-0D020

NCP92,ZSP92

 2
61202 - RAIL SUB-ASSY, ROOF SIDE, LH
61202-0D050

NCP92,ZSP92

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-0D090

NCP92,ZSP92

 1
61214B - RAIL, ROOF SIDE, OUTER NO.2 LH
61214-0D090

NCP92,ZSP92

 1
61328 - REINFORCEMENT, CENTER BODY PILLAR, OUTER LH
61328-0D100

NCP92,ZSP92

 1
61344A - PILLAR, CENTER BODY, INNER LH
61042-0D040

NCP92,ZSP92

 1
61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH
61404-0D100

NCP92,ZSP92

 1
61412 - PANEL, ROCKER, OUTER LH
61412-0D140

NCP92,ZSP92..GLI,GLXI

 1
61416B - EXTENSION, ROCKER, OUTER LH
61416-0D020

NCP92,ZSP92

 1
61419A - REINFORCEMENT, ROCKER PANEL, LH
61419-0D030

NCP92,ZSP92

 1
61606C - PANEL SUB-ASSY, QUATER, REAR INNER LH
61606-0D010

NCP92,ZSP92

 1
61612 - PANEL, QUARTER, LH
61602-0D200

NCP92,ZSP92..GLI,GLXI

 1
61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH
61632-52140

NCP92,ZSP92

 1
61642C - GUSSET, QUARTER WHEEL HOUSE, FRONT LH
61642-0D070

NCP92,ZSP92

 1
61712 - PANEL, ROOF SIDE, OUTER LH
61712-52180

NCP92,ZSP92

 1
61732B - PANEL, ROOF SIDE, INNER LH
61732-0D090

NCP92,ZSP92

 1
61736A - PANEL, ROOF SIDE, INNER REAR LH
61736-0D030

NCP92,ZSP92

 1
61742B - REINFORCEMENT, BACK WINDOW OPENING, LH
61742-0D040

NCP92,ZSP92

 1
61824 - PLATE, NOISE CONTROL, NO.1
61824-0D020

NCP92,ZSP92

 4
61824 - PLATE, NOISE CONTROL, NO.1
61824-0D020

NCP92,ZSP92

 4
61825A - PLATE, NOISE CONTROL, NO.2
61825-0D020

NCP92,ZSP92

 6
61825A - PLATE, NOISE CONTROL, NO.2
61825-0D020

NCP92,ZSP92

 6
61825A - PLATE, NOISE CONTROL, NO.2
61825-0D020

NCP92,ZSP92

 6
62151B - PAD, COWL SIDE SILENCER
62151-0D020

NCP92,ZSP92

 2
64142B - SILENCER, QUATER PANEL, LH
64142-0D010

NCP92,ZSP92

 1
64305B - REINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, LH
64305-0D060

NCP92,ZSP92

 1
Common parts
90105-C0110
90541-11006
91551-80610
Linked diagrams
5701
