NCP92L-BEPHKC (2008)
Toyota Vios (China)
Production
Feb 2008
-
Aug 2010
Engine
2NZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0802- )

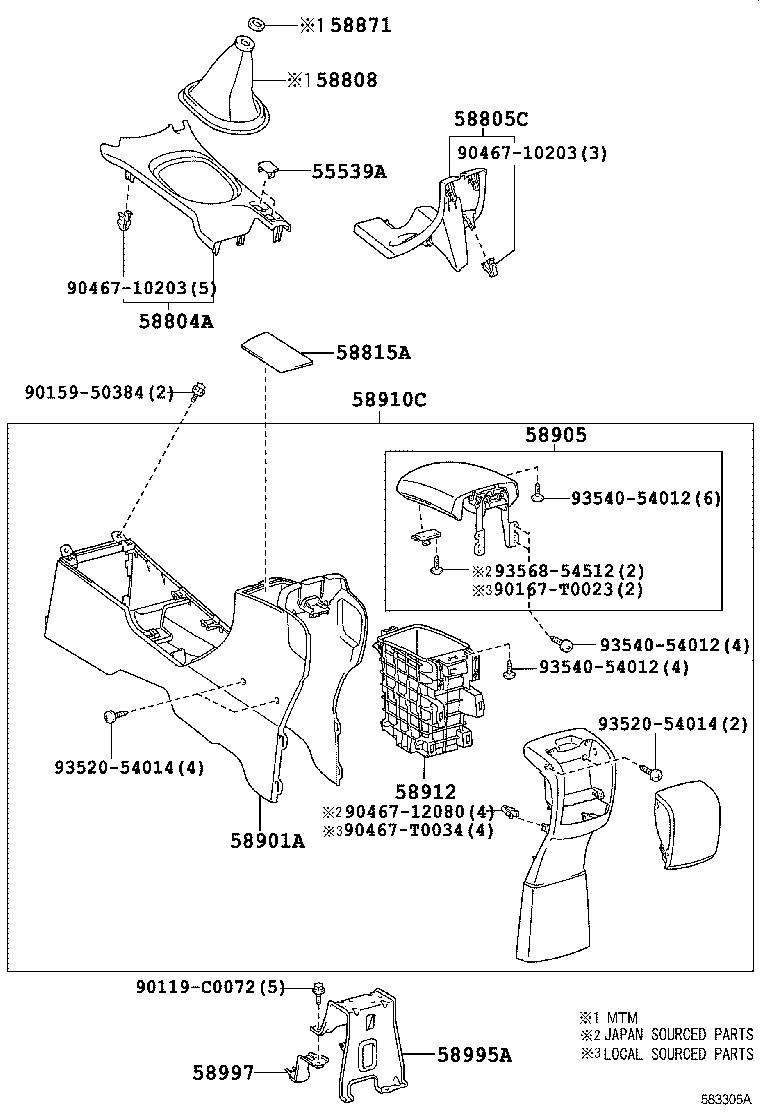

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060E0 |
NCP92,ZSP92..GLI,GLXI GREGE,TRIM4# |
2 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-0D031E0 |
NCP92,ZSP92..4FC..(GLI,GLXI) GREGE,TRIM4# |
1 | ||
| 58805C - PANEL SUB-ASSY, CONSOLE, UPPER REAR | ||||
| 58805-0D010E0 |
NCP92,ZSP92..GLI,GLXI GREGE,TRIM4# |
1 | ||
| 58815A - CARPET, CONSOLE BOX | ||||
| 58815-0D110 |
NCP92,ZSP92 |
1 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58911-0D141E0 |
NCP92,ZSP92..GLI,GLXI GREGE,TRIM4# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-0D030E0 |
NCP92,ZSP92..GLI,GLXI GREGE,TRIM4# |
1 | ||
| 58910C - BOX ASSY, CONSOLE, REAR | ||||
| 58910-0D041E0 |
NCP92,ZSP92..GLI,GLXI GREGE,TRIM4# |
1 | ||
| 58912 - BOX, REAR CONSOLE, NO.2 | ||||
| 58912-0D010 |
NCP92,ZSP92 |
1 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-0D060 |
NCP92,ZSP92 |
1 | ||
| 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58997-0D010 |
NCP92,ZSP92 |
1 | ||
| Common parts | ||||
| 90119-C0072 | ||||
| 90159-50384 | ||||
| 90167-T0023 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 90467-T0034 | ||||
| 93520-54014 | ||||
| 93540-54012 | ||||
| 93568-54512 | ||||
