NCP92L-BEPHKC (2008)

Toyota Vios (China)

Production Feb 2008 - Aug 2010
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0802- )

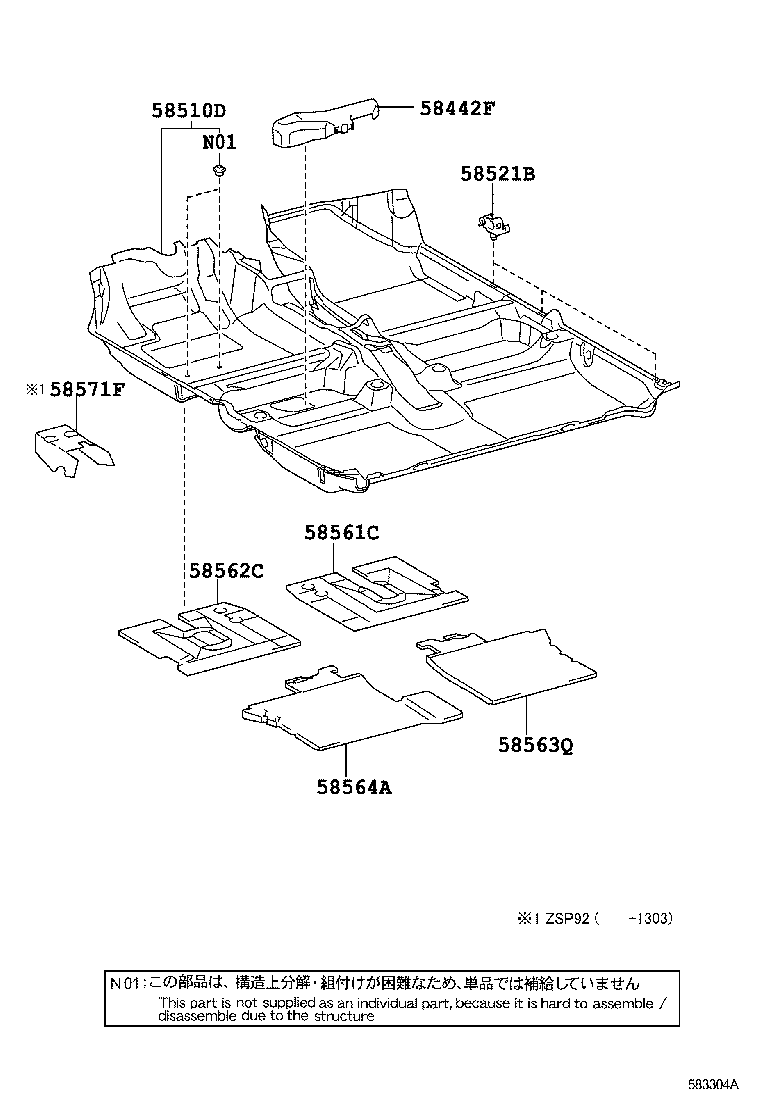

Click highlighted areas on diagram

diagram 58442F 58510D 58521B 58561C 58562C 58563Q 58564A 58571F
Part # Description Qty Price
58442F - COVER, JACK
58442-0D070

NCP92,ZSP92

 1
58510D - CARPET ASSY, FLOOR, FRONT
58510-0D580B2

NCP92,ZSP92..GLI,GLXI

DK.GRAY,TRIM4#

 1
58521B - HOOK, FLOOR CARPET
58521-0D100

NCP92,ZSP92

 6
58561C - SILENCER, FRONT FLOOR, NO.1
58561-0D110

NCP92,ZSP92

 1
58562C - SILENCER, FRONT FLOOR, NO.2
58562-0D110

NCP92,ZSP92

 1
58563Q - SILENCER, FRONT FLOOR, NO.3
58563-0D110

NCP92,ZSP92

 1
58564A - SILENCER, FRONT FLOOR, NO.4
58564-0D120

NCP92,ZSP92

 1
