NCP92L-BEPHKC (2008)

Toyota Vios (China)

Production Feb 2008 - Aug 2010
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0802- )

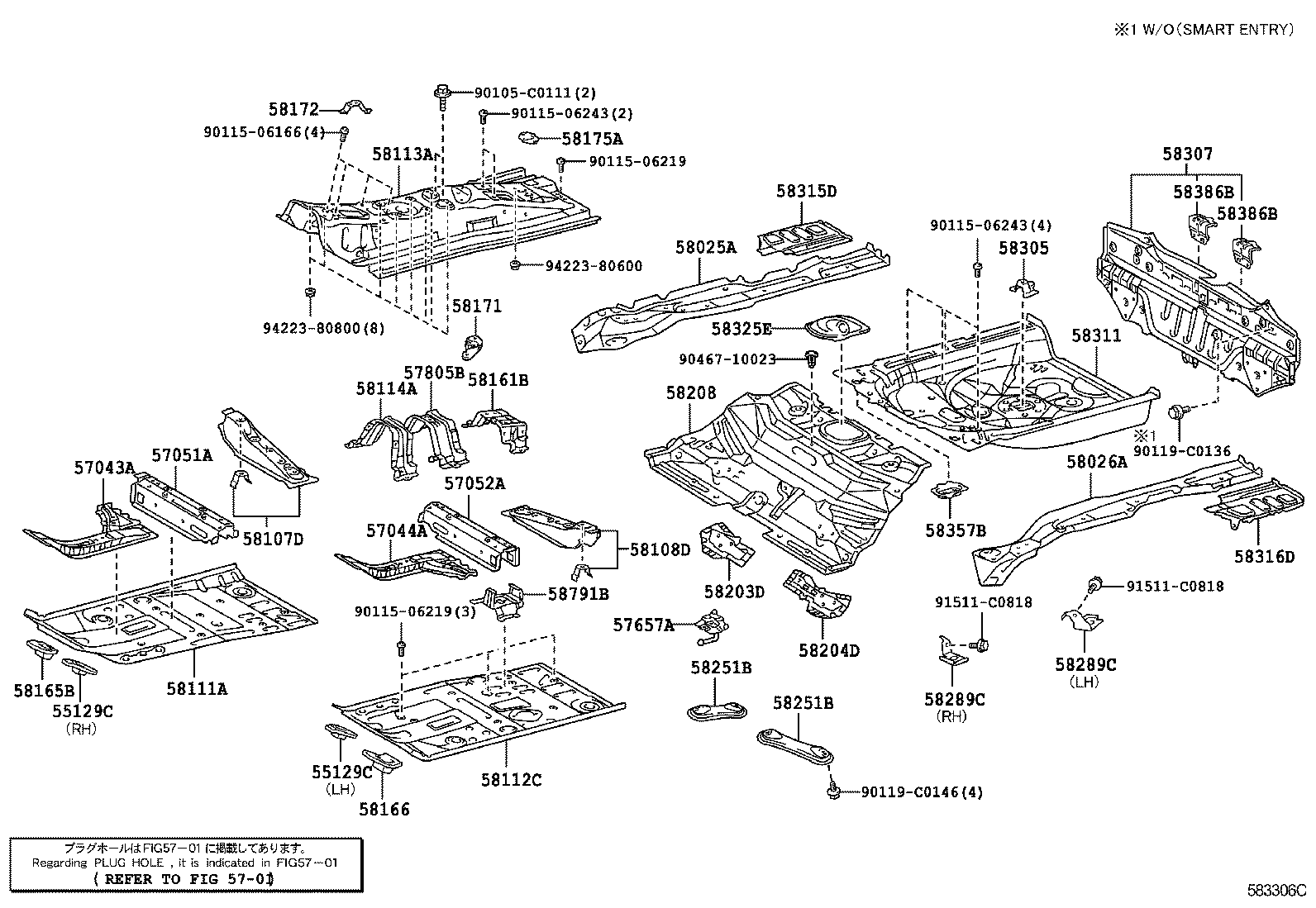

Click highlighted areas on diagram

diagram 55129C 55129C 5701 57043A 57044A 57051A 57052A 57657A 57805B 58025A 58026A 58107D 58108D 58111A 58112C 58113A 58114A 58161B 58165B 58166 58171 58172 58175A 58203D 58204D 58208 58251B 58251B 58289C 58289C 58305 58307 58311 58315D 58316D 58325E 58357B 58386B 58386B 58791B 90105C0111 9011506166 9011506219 9011506219 9011506243 9011506243 90119C0136 90119C0146 9046710023 91511C0818 91511C0818 9422380600 9422380800
Part # Description Qty Price
55129C - COVER, DASH PANEL HOLE
55129-0D110

NCP92,ZSP92

RH

 1
55139-0D030

NCP92,ZSP92

LH

 1
55129C - COVER, DASH PANEL HOLE
55129-0D110

NCP92,ZSP92

RH

 1
55139-0D030

NCP92,ZSP92

LH

 1
57043A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57043-0D020

NCP92,ZSP92

 1
57044A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57044-0D050

NCP92,ZSP92

 1
57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57051-0D030

NCP92,ZSP92

 1
57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57052-0D030

NCP92,ZSP92

 1
57657A - BRACKET, EXHAUST PIPE MOUNTING, NO.2
51904-0D020

NCP92,ZSP92

 1
57805B - REINFORCEMENT SUB-ASSY, BELT ANCHOR, RH
57805-0D070

NCP92,ZSP92

 1
58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH
58025-0D020

NCP92,ZSP92

 1
58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH
58026-0D020

NCP92,ZSP92

 1
58107D - REINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH
58107-0D010

NCP92,ZSP92

 1
58108D - REINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH
58108-0D010

NCP92,ZSP92

 1
58111A - PAN, FRONT FLOOR, RH
58111-52170

NCP92,ZSP92

 1
58112C - PAN, FRONT FLOOR, LH
58112-52904

NCP92,ZSP92

 1
58113A - PANEL, FRONT FLOOR, CENTER
58113-52904

NCP92,ZSP92

 1
58114A - REINFORCEMENT, FRONT FLOOR PANEL
58114-0D060

NCP92,ZSP92

 1
58161B - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN
58161-0D060

NCP92,ZSP92

 1
58165B - COVER, FRONT FLOOR, RH
58165-0D010

NCP92,ZSP92

 1
58166 - COVER, FRONT FLOOR, LH
58166-0D010

NCP92,ZSP92

 1
58171 - REINFORCEMENT, PARKING BRAKE BASE
58171-0D040

NCP92,ZSP92

 1
58172 - BRACKET, COMPUTER MOUNTING, NO.3
58172-0D020

NCP92,ZSP92

 1
58175A - REINFORCEMENT, PARKING BRAKE BASE, NO.1
58175-0D010

NCP92,ZSP92

 1
58203D - BRACKET SUB-ASSY, REAR SEAT HINGE, OUTER RH
58203-0D010

NCP92,ZSP92

 1
58204D - BRACKET SUB-ASSY, REAR SEAT HINGE, OUTER LH
58204-0D010

NCP92,ZSP92

 1
58208 - PAN, CENTER FLOOR
58211-52220

NCP92,ZSP92

 1
58251B - BRACE, FLOOR PANEL, FRONT
58251-0D040

NCP92,ZSP92

 2
58251B - BRACE, FLOOR PANEL, FRONT
58251-0D040

NCP92,ZSP92

 2
58289C - BRACKET, FLOOR BRAKE HOSE, REAR
58299-0D050

NCP92,ZSP92

LH

 1
58289-0D050

NCP92,ZSP92

RH

 1
58289C - BRACKET, FLOOR BRAKE HOSE, REAR
58299-0D050

NCP92,ZSP92

LH

 1
58289-0D050

NCP92,ZSP92

RH

 1
58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58351-0D041

NCP92,ZSP92

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-0D101

NCP92,ZSP92

 1
58311 - PAN, REAR FLOOR
58311-52210

NCP92,ZSP92

 1
58315D - EXTENSION, REAR FLOOR PAN, RH
58315-52170

NCP92,ZSP92

 1
58316D - EXTENSION, REAR FLOOR PAN, LH
58316-52190

NCP92,ZSP92

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-0D040

NCP92,ZSP92

 1
58357B - BRACKET, ACTUATOR COVER, NO.3 RH
58357-0D030

NCP92,ZSP92

 1
58386B - BRACKET, REAR BUMPER COVER, NO.2
58386-0D020

NCP92,ZSP92

 2
58386B - BRACKET, REAR BUMPER COVER, NO.2
58386-0D020

NCP92,ZSP92

 2
58791B - CARRIER, JACK
58791-0D070

NCP92,ZSP92

 1
Common parts
90105-C0111
90115-06166
90115-06219
90115-06243
90119-C0136
90119-C0146
90467-10023
91511-C0818
94223-80600
94223-80800
Linked diagrams
5701
