NCP92L-BEPHKC (2008)
Toyota Vios (China)
Production
Feb 2008
-
Aug 2010
Engine
2NZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0802- )

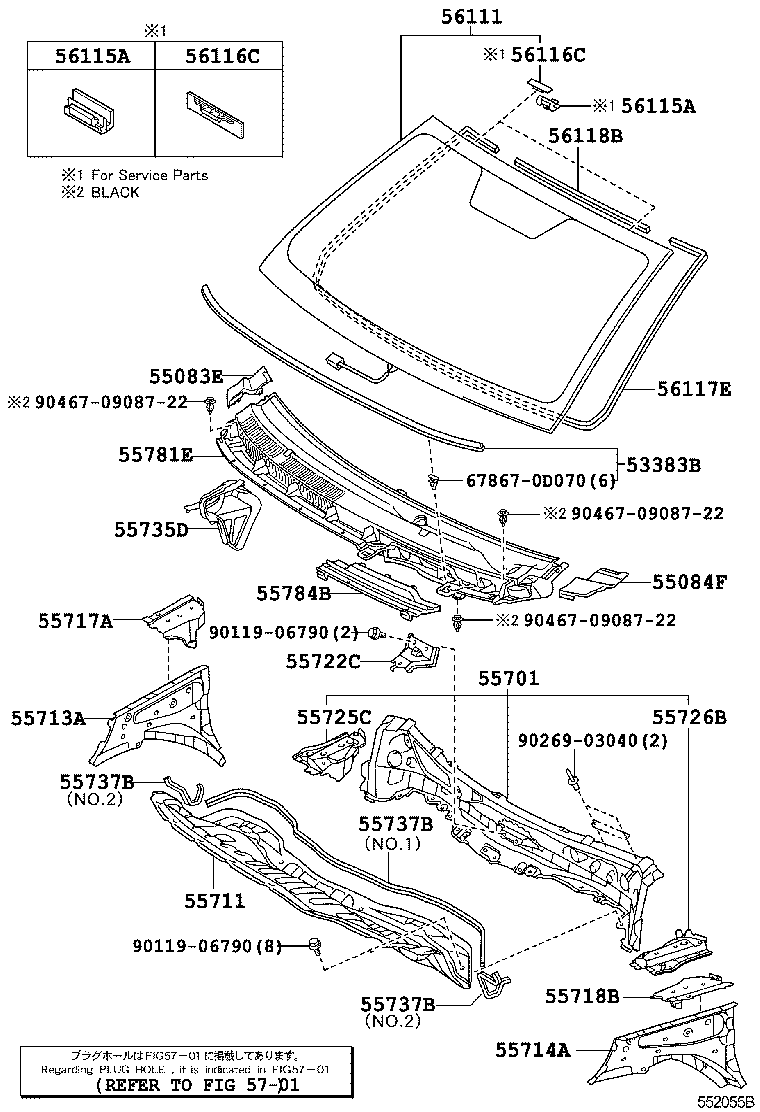

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53383B - SEAL, HOOD TO COWL TOP | ||||
| 53383-0D090 |
NCP92,ZSP92 |
1 | ||
| 55083E - VENTILATOR SUB-ASSY, COWL SIDE, RH | ||||
| 55083-0D040 |
NCP92,ZSP92 |
1 | ||
| 55084F - VENTILATOR SUB-ASSY, COWL SIDE, LH | ||||
| 55084-0D010 |
NCP92,ZSP92 |
1 | ||
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-0D140 |
NCP92,ZSP92 |
1 | ||
| 55711 - PANEL, COWL TOP, OUTER | ||||
| 55701-0D140 |
NCP92,ZSP92 |
1 | ||
| 55713A - PANEL, COWL TOP SIDE, RH | ||||
| 55713-0D070 |
NCP92,ZSP92 |
1 | ||
| 55714A - PANEL, COWL TOP SIDE, LH | ||||
| 55714-0D070 |
NCP92,ZSP92 |
1 | ||
| 55717A - PANEL, COWL TOP SIDE, INNER RH | ||||
| 55717-0D070 |
NCP92,ZSP92 |
1 | ||
| 55718B - PANEL, COWL TOP SIDE, INNER LH | ||||
| 55718-0D070 |
NCP92,ZSP92 |
1 | ||
| 55722C - BRACE, COWL TOP TO COWL, INNER | ||||
| 55722-0D070 |
NCP92,ZSP92 |
1 | ||
| 55725C - REINFORCEMENT, HOOD HINGE MOUNTING, RH | ||||
| 55725-0D902 |
NCP92,ZSP92 |
1 | ||
| 55726B - REINFORCEMENT, HOOD HINGE MOUNTING, LH | ||||
| 55726-0D902 |
NCP92,ZSP92 |
1 | ||
| 55735D - SEAL, FRONT AIR SHUTTER, RH | ||||
| 55735-0D020 |
NCP92,ZSP92 |
1 | ||
| 55737B - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1 | ||||
| 55737-0D050 |
NCP92,ZSP92 NO.2 |
2 | ||
| 55737-0D020 |
NCP92,ZSP92 NO.1 |
1 | ||
| 55737B - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1 | ||||
| 55737-0D050 |
NCP92,ZSP92 NO.2 |
2 | ||
| 55737-0D020 |
NCP92,ZSP92 NO.1 |
1 | ||
| 55737B - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1 | ||||
| 55737-0D050 |
NCP92,ZSP92 NO.2 |
2 | ||
| 55737-0D020 |
NCP92,ZSP92 NO.1 |
1 | ||
| 55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR | ||||
| 55708-0D140 |
NCP92,ZSP92 |
1 | ||
| 55784B - LOUVER, COWL TOP VENTILATOR, CENTER NO.2 | ||||
| 55784-0D040 |
NCP92,ZSP92 |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56101-0D140 |
NCP92,ZSP92 *LAM,T=4.56,GREEN |
1 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-30100 |
NCP92,ZSP92 |
2 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-30100 |
NCP92,ZSP92 |
2 | ||
| 56116C - STOPPER, WINDSHIELD GLASS, NO.2 | ||||
| 56116-22050 |
NCP92,ZSP92 |
2 | ||
| 56116C - STOPPER, WINDSHIELD GLASS, NO.2 | ||||
| 56116-22050 |
NCP92,ZSP92 |
2 | ||
| 56117E - DAM, WINDOW GLASS ADHESIVE | ||||
| 56117-52150 |
NCP92,ZSP92 L=3141 |
1 | ||
| 56118B - DAM, WINDOW GLASS ADHESIVE, NO.2 | ||||
| 56118-52100 |
NCP92,ZSP92 L=601 |
1 | ||
| Common parts | ||||
| 67867-0D070 | ||||
| 90119-06790 | ||||
| 90269-03040 | ||||
| 90467-0908722 | ||||
| Linked diagrams | ||||
| 5701 | ||||
