NCP92L-BEPHKC (2008)
Toyota Vios (China)

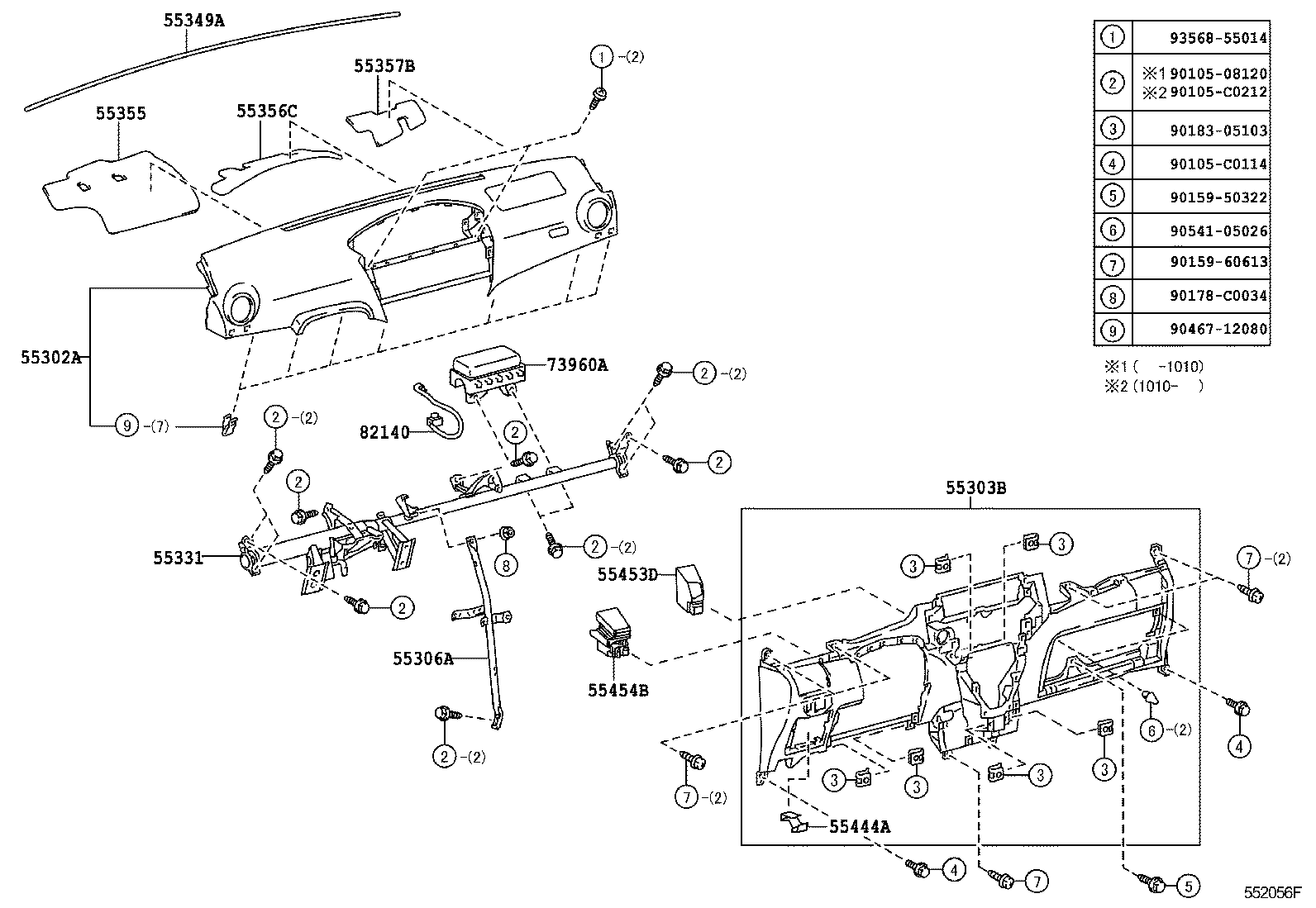

ILLUST NO. 1 OF 2(0802- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-0D110B0 |
NCP92,ZSP92..GLI,GLXI DK.GRAY,TRIM4# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-0D111E0 |
NCP92,ZSP92..GLI,GLXI GREGE,TRIM4# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-0D140 |
NCP92,ZSP92 |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-0D280 |
NCP92,ZSP92 |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-0D100 |
NCP92,ZSP92 |
1 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-52260 |
NCP92,ZSP92 |
1 | ||
| 55453D - PAD, INSTRUMENT PANEL SAFETY, NO.1 | ||||
| 55453-0D030 |
NCP92,ZSP92 |
1 | ||
| 55454B - PAD, INSTRUMENT PANEL SAFETY, NO.2 | ||||
| 55454-0D030 |
NCP92,ZSP92 |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-0D060 |
NCP92,ZSP92 |
1 | ||
| 82140 - WIRE ASSY, INSTRUMENT PANEL | ||||
| 82140-0D020 |
NCP92,ZSP92 |
1 | ||
| 82140-0D020 |
NCP92,ZSP92 |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90105-C0114 | ||||
| 90105-C0212 | ||||
| 90159-50322 | ||||
| 90159-60613 | ||||
| 90178-C0034 | ||||
| 90183-05103 | ||||
| 90467-12080 | ||||
| 90541-05026 | ||||
| 93568-55014 | ||||

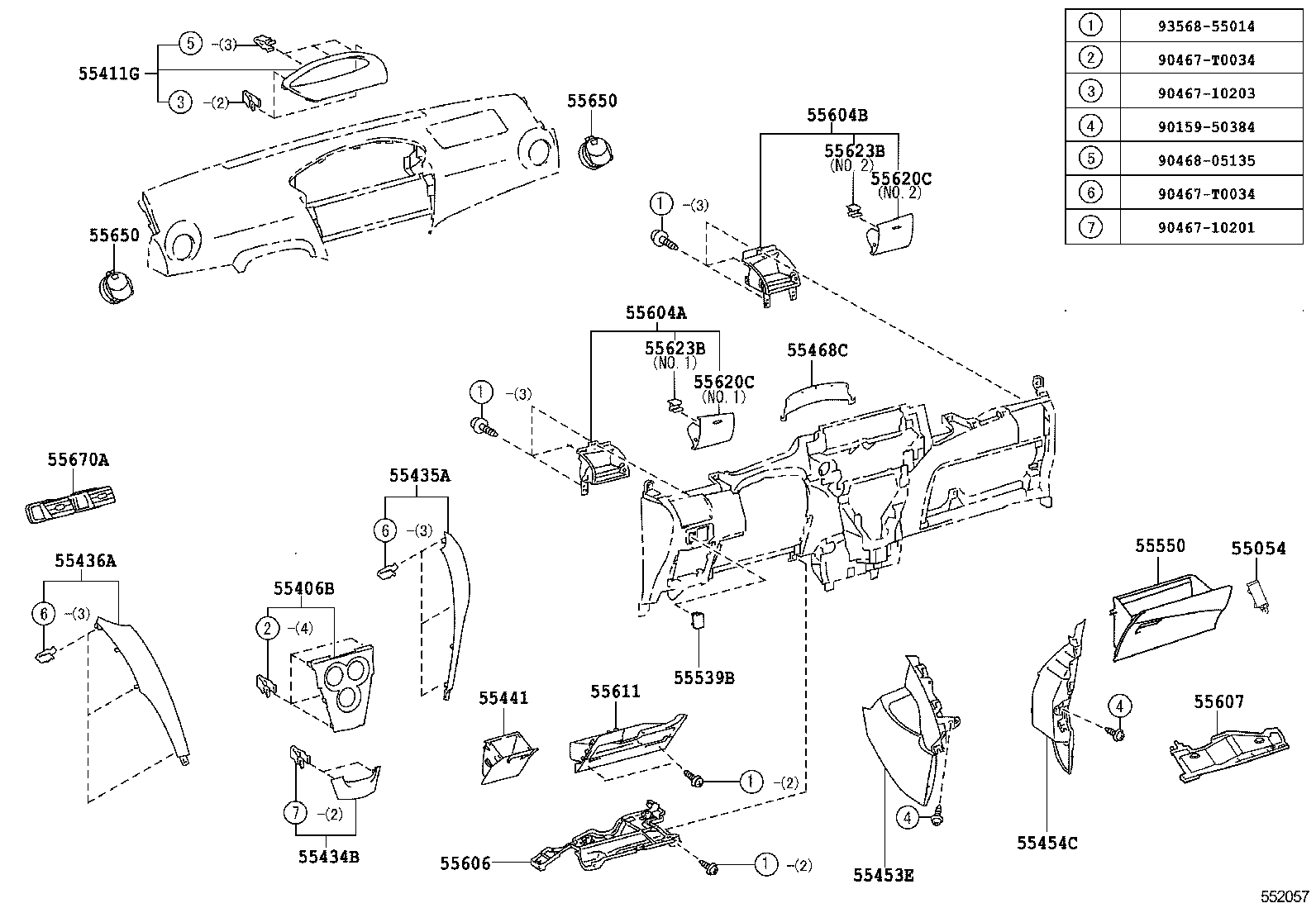

ILLUST NO. 2 OF 2(0802- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-52020 |
NCP92,ZSP92 |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-0D260 |
NCP92,ZSP92 |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-0D111B0 |
NCP92,ZSP92..GLI,GLXI DK.GRAY,TRIM4# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-0D060B2 |
NCP92,ZSP92..GLI,GLXI DK.GRAY,TRIM4# |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-0D061B2 |
NCP92,ZSP92..GLI,GLXI DK.GRAY,TRIM4# |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-0D061B2 |
NCP92,ZSP92..GLI,GLXI DK.GRAY,TRIM4# |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55441-0D130E0 |
NCP92,ZSP92..GLI,GLXI GREGE,TRIM4# |
1 | ||
| 55453E - PAD, INSTRUMENT, LOWER RH | ||||
| 55480-0D021E0 |
NCP92,ZSP92..GLI,GLXI GREGE,TRIM4# |
1 | ||
| 55454C - PAD, INSTRUMENT, LOWER LH | ||||
| 55470-0D021E0 |
NCP92,ZSP92..GLI,GLXI GREGE,TRIM4# |
1 | ||
| 55468C - SEAL, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55468-0D040 |
NCP92,ZSP92 |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-52060E0 |
NCP92,ZSP92..GLI,GLXI HEADLAMP LEVELING DEVICE-WITHOUT,GREGE,TRIM4# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-0D111E0 |
NCP92,ZSP92..GLI,GLXI GREGE,TRIM4# |
1 | ||
| 55604A - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP | ||||
| 55618-0D040E0 |
NCP92,ZSP92..GLI,GLXI GREGE,TRIM4# |
1 | ||
| 55604B - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP | ||||
| 55619-0D040E0 |
NCP92,ZSP92..GLI,GLXI GREGE,TRIM4# |
1 | ||
| 55611 - TRAY, INSTRUMENT PANEL UNDER | ||||
| 55611-0D140E0 |
NCP92,ZSP92..GLI,GLXI GREGE,TRIM4# |
1 | ||
| 55620C - HOLDER, INSTRUMENT PANEL CUP | ||||
| 55620-0D040E0 |
NCP92,ZSP92..GLI,GLXI GREGE,TRIM4#,NO.2 |
1 | ||
| 55620-0D030E0 |
NCP92,ZSP92..GLI,GLXI GREGE,TRIM4#,NO.1 |
1 | ||
| 55620C - HOLDER, INSTRUMENT PANEL CUP | ||||
| 55620-0D040E0 |
NCP92,ZSP92..GLI,GLXI GREGE,TRIM4#,NO.2 |
1 | ||
| 55620-0D030E0 |
NCP92,ZSP92..GLI,GLXI GREGE,TRIM4#,NO.1 |
1 | ||
| 55623B - SPRING, INSTRUMENT PANEL CUP HOLDER | ||||
| 55623-52040 |
NCP92,ZSP92 NO.1 |
1 | ||
| 55623-52050 |
NCP92,ZSP92 NO.2 |
1 | ||
| 55623B - SPRING, INSTRUMENT PANEL CUP HOLDER | ||||
| 55623-52040 |
NCP92,ZSP92 NO.1 |
1 | ||
| 55623-52050 |
NCP92,ZSP92 NO.2 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-0D090B0 |
NCP92,ZSP92..GLI,GLXI DK.GRAY,TRIM4# |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-0D090B0 |
NCP92,ZSP92..GLI,GLXI DK.GRAY,TRIM4# |
2 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-0D040B0 |
NCP92,ZSP92..GLI,GLXI DK.GRAY,TRIM4# |
1 | ||
| 55670-0D110B0 |
NCP92,ZSP92..GLI,GLXI DK.GRAY,TRIM4# |
1 | ||
| Common parts | ||||
| 90159-50384 | ||||
| 90467-10201 | ||||
| 90467-10203 | ||||
| 90467-T0034 | ||||
| 90468-05135 | ||||
| 93568-55014 | ||||
