NCP92L-BEPHKC (2008)
Toyota Vios (China)
(0802- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51401C - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51401-0D020 |
NCP92,ZSP92 |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51402-0D020 |
NCP92,ZSP92 |
1 | ||
| 51403D - BRACKET SUB-ASSY, ENGINE REAR MOUNTING | ||||
| 51403-0D020 |
NCP92,ZSP92 |
1 | ||
| 51902B - HANGER SUB-ASSY, EXHAUST PIPE, NO.2 | ||||
| 51902-0D020 |
NCP92,ZSP92 |
1 | ||
| 51963F - HOOK, TRANSPORT | ||||
| 51963-0D030 |
NCP92,ZSP92 |
1 | ||
| 51963F - HOOK, TRANSPORT | ||||
| 51963-0D030 |
NCP92,ZSP92 |
1 | ||
| 57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57016-0D070 |
NCP92,ZSP92 |
1 | ||
| 57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57017-0D130 |
NCP92,ZSP92 |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57016-0D902 |
NCP92,ZSP92 |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57017-0D902 |
NCP92,ZSP92 |
1 | ||
| 57105G - SPACER SUB-ASSY, SUSPENSION MEMBER, FRONT RH | ||||
| 57105-0D040 |
NCP92,ZSP92 |
1 | ||
| 57106E - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO | ||||
| 57106-0D020 |
NCP92,ZSP92 |
1 | ||
| 57107A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57107-0D060 |
NCP92,ZSP92 |
1 | ||
| 57108F - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REA | ||||
| 57108-0D060 |
NCP92,ZSP92 |
1 | ||
| 57119 - PLATE, FRONT SIDE MEMBER, FRONT | ||||
| 57119-0D020 |
NCP92,ZSP92 RH |
1 | ||
| 57129-0D020 |
NCP92,ZSP92 LH |
1 | ||
| 57119 - PLATE, FRONT SIDE MEMBER, FRONT | ||||
| 57119-0D020 |
NCP92,ZSP92 RH |
1 | ||
| 57129-0D020 |
NCP92,ZSP92 LH |
1 | ||
| 57123 - SUPPORT, FRONT SIDE MEMBER, RH | ||||
| 57123-0D020 |
NCP92,ZSP92 |
1 | ||
| 57124 - SUPPORT, FRONT SIDE MEMBER, LH | ||||
| 57124-0D020 |
NCP92,ZSP92 |
1 | ||
| 57191A - MEMBER, FRONT SIDE, INNER REAR RH | ||||
| 57191-52020 |
NCP92,ZSP92 |
1 | ||
| 57192A - MEMBER, FRONT SIDE, INNER REAR LH | ||||
| 57192-52020 |
NCP92,ZSP92 |
1 | ||
| 57195A - REINFORCEMENT, FRONT SIDE MEMBER, FRONT RH | ||||
| 57195-0D020 |
NCP92,ZSP92 |
1 | ||
| 57196A - REINFORCEMENT, FRONT SIDE MEMBER, FRONT LH | ||||
| 57196-0D020 |
NCP92,ZSP92 |
1 | ||
| 57197 - BOX, TORQUE, FRONT RH | ||||
| 57197-0D040 |
NCP92,ZSP92 |
1 | ||
| 57198 - BOX, TORQUE, FRONT LH | ||||
| 57198-0D040 |
NCP92,ZSP92 |
1 | ||
| 57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH | ||||
| 57401-0D130 |
NCP92,ZSP92 |
1 | ||
| 57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH | ||||
| 57402-0D130 |
NCP92,ZSP92 |
1 | ||
| 57403B - REINFORCE SUB-ASSY, FLOOR SIDE, INNER RH | ||||
| 57403-0D010 |
NCP92,ZSP92 |
1 | ||
| 57404A - REINFORCE SUB-ASSY, FLOOR SIDE, INNER LH | ||||
| 57404-0D010 |
NCP92,ZSP92 |
1 | ||
| 57413A - MEMBER, FLOOR SIDE, INNER REAR RH | ||||
| 57413-52110 |
NCP92,ZSP92 |
1 | ||
| 57414A - MEMBER, FLOOR SIDE, INNER REAR LH | ||||
| 57414-52110 |
NCP92,ZSP92 |
1 | ||
| 57419B - REINFORCEMENT, FRONT FLOOR UNDER, REAR | ||||
| 57419-0D050 |
NCP92,ZSP92 |
1 | ||
| 57429D - REINFORCEMENT, FRONT FLOOR UNDER, REAR LH | ||||
| 57429-0D050 |
NCP92,ZSP92 |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-0D060 |
NCP92,ZSP92 |
1 | ||
| 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-0D060 |
NCP92,ZSP92 |
1 | ||
| 57611A - MEMBER, REAR FLOOR SIDE, RH | ||||
| 57611-52070 |
NCP92,ZSP92 |
1 | ||
| 57612A - MEMBER, REAR FLOOR SIDE, LH | ||||
| 57612-52100 |
NCP92,ZSP92 |
1 | ||
| 57616 - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-0D903 |
NCP92,ZSP92 |
1 | ||
| 57616C - MEMBER, REAR FLOOR SIDE, REAR LH | ||||
| 57616-0D903 |
NCP92,ZSP92 |
1 | ||
| 57631B - REINFORCEMENT, REAR FLOOR SIDE MEMBER, FRONT RH | ||||
| 57631-0D050 |
NCP92,ZSP92 |
1 | ||
| 57632B - REINFORCEMENT, REAR FLOOR SIDE MEMBER, FRONT LH | ||||
| 57632-0D050 |
NCP92,ZSP92 |
1 | ||
| 57705E - BRACKET SUB-ASSY, REAR SUSPENSHION MEMBER MOUNTING, RR | ||||
| 57705-0D021 |
NCP92,ZSP92 |
1 | ||
| 57705-0D020 |
NCP92,ZSP92 |
1 | ||
| 57706B - BRACKET SUB-ASSY, REAR SUSPENSION ARM, REAR LH | ||||
| 57706-0D020 |
NCP92,ZSP92 |
1 | ||
| 57706-0D021 |
NCP92,ZSP92 |
1 | ||
| 57771 - PLATE, REAR SPRING, RH | ||||
| 57771-0D050 |
NCP92,ZSP92 |
1 | ||
| 57772 - PLATE, REAR SPRING, LH | ||||
| 57771-0D050 |
NCP92,ZSP92 |
1 | ||
| 57801A - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, RH | ||||
| 57801-0D050 |
NCP92,ZSP92 |
1 | ||
| 57802A - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, LH | ||||
| 57802-0D040 |
NCP92,ZSP92 |
1 | ||

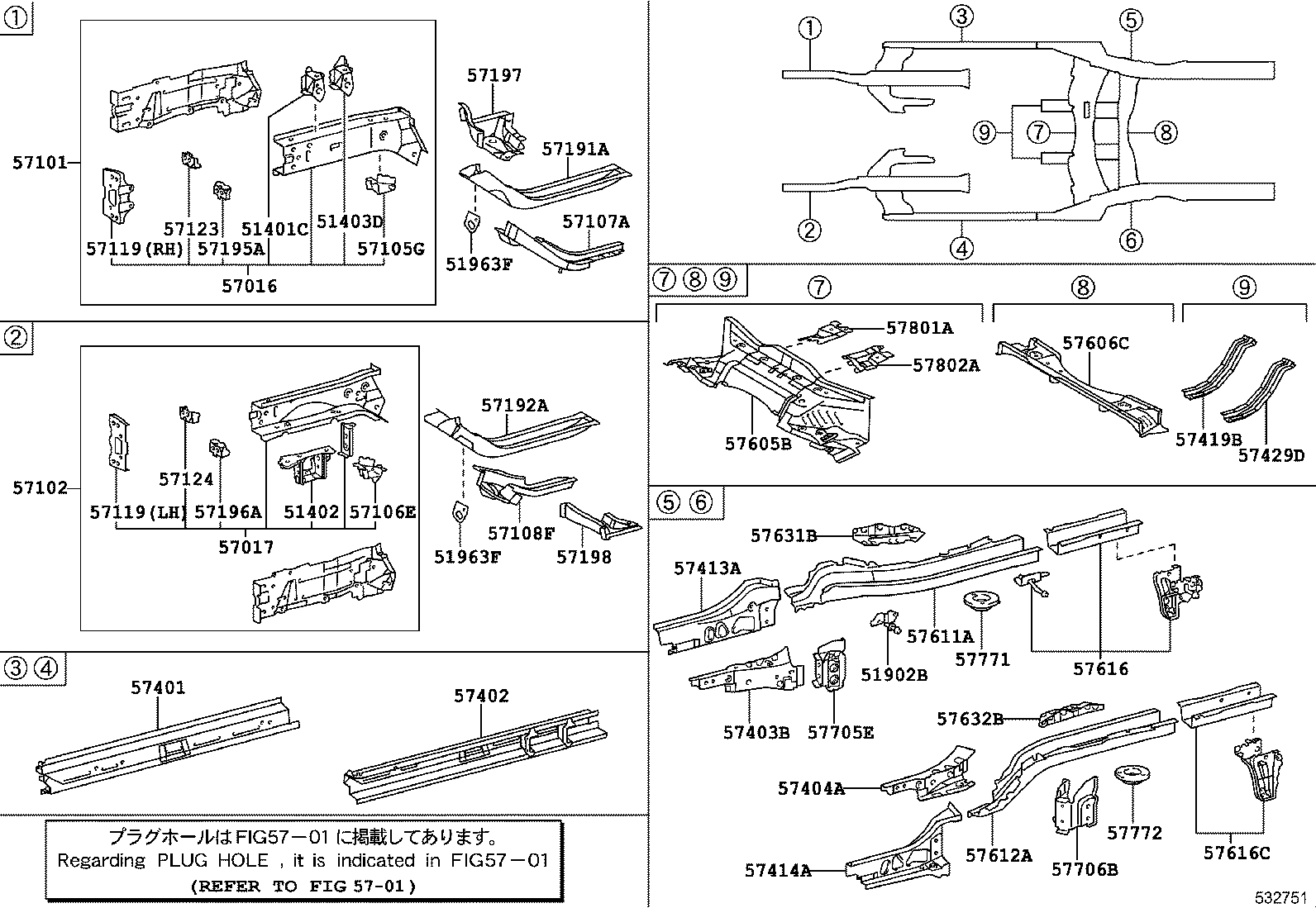

| Linked diagrams | ||||
| 5701 | ||||
