NCP92L-BEPHKC (2008)
Toyota Vios (China)
Production
Feb 2008
-
Aug 2010
Engine
2NZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0802- )

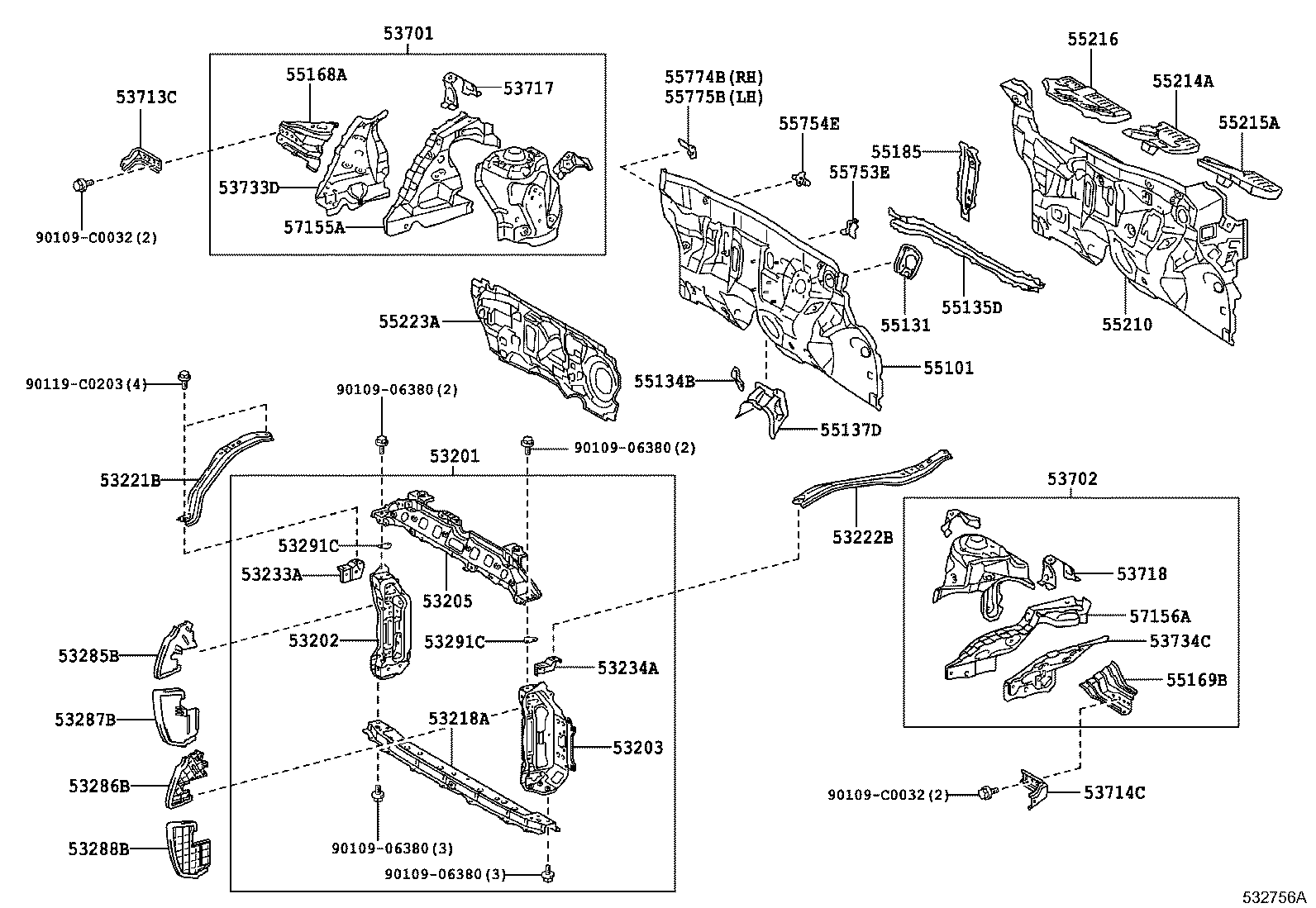

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-0D130 |
NCP92,ZSP92 |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-0D070 |
NCP92,ZSP92 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-0D070 |
NCP92,ZSP92 |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-0D050 |
NCP92,ZSP92 |
1 | ||
| 53218A - SUPPORT, RADIATOR, LOWER | ||||
| 53028-0D040 |
NCP92,ZSP92 |
1 | ||
| 53221B - BRACE, RADIATOR SUPPORT APRON, RH | ||||
| 53221-0D010 |
NCP92,ZSP92 |
1 | ||
| 53222B - BRACE, RADIATOR SUPPORT APRON, LH | ||||
| 53222-0D010 |
NCP92,ZSP92 |
1 | ||
| 53233A - BRACKET, HEADLAMP, NO.1 RH | ||||
| 53233-0D030 |
NCP92,ZSP92 |
1 | ||
| 53234A - BRACKET, HEADLAMP, NO.1 LH | ||||
| 53234-0D030 |
NCP92,ZSP92 |
1 | ||
| 53285B - SEAL, RADIATOR SIDE AIR, NO.1 | ||||
| 53285-0D090 |
NCP92 |
1 | ||
| 53286B - SEAL, RADIATOR SIDE AIR, NO.2 | ||||
| 53286-0D090 |
NCP92 |
1 | ||
| 53287B - EXTENSION, RADIATOR SUPPORT, RH | ||||
| 53287-0D060 |
NCP92 |
1 | ||
| 53288B - EXTENSION, RADIATOR SUPPORT, LH | ||||
| 53288-0D060 |
NCP92 |
1 | ||
| 53291C - SEAL, RADIATOR SUPPORT TO FRAME | ||||
| 53291-0D020 |
NCP92,ZSP92 |
2 | ||
| 53291C - SEAL, RADIATOR SUPPORT TO FRAME | ||||
| 53291-0D020 |
NCP92,ZSP92 |
2 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-0D170 |
NCP92,ZSP92 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-0D160 |
NCP92,ZSP92 |
1 | ||
| 53713C - EXTENSION, FRONT FENDER APRON, FRONT RH | ||||
| 53713-0D030 |
NCP92,ZSP92 |
1 | ||
| 53714C - EXTENSION, FRONT FENDER APRON, FRONT LH | ||||
| 53714-0D030 |
NCP92,ZSP92 |
1 | ||
| 53717 - PLATE, FENDER APRON, RH | ||||
| 53717-0D030 |
NCP92,ZSP92 |
1 | ||
| 53718 - PLATE, FENDER APRON, LH | ||||
| 53718-0D030 |
NCP92,ZSP92 |
1 | ||
| 53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH | ||||
| 53733-0D020 |
NCP92,ZSP92 |
1 | ||
| 53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH | ||||
| 53734-0D020 |
NCP92,ZSP92 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55111-52350 |
NCP92,ZSP92..4FC |
1 | ||
| 55131 - REINFORCEMENT, DASH PANEL | ||||
| 55131-0D080 |
NCP92,ZSP92..4FC |
1 | ||
| 55134B - SUPPORT, ACCEL CONTROL ROD | ||||
| 55134-0D050 |
NCP92,ZSP92 |
1 | ||
| 55135D - MEMBER, FRONT PANEL | ||||
| 55135-0D101 |
NCP92,ZSP92 |
1 | ||
| 55135-0D100 |
NCP92,ZSP92 |
1 | ||
| 55137D - REINFORCEMENT, FRONT PANEL MEMBER | ||||
| 55137-0D090 |
NCP92,ZSP92 |
1 | ||
| 55168A - BRACKET, FRONT FENDER MOUNTING, RH | ||||
| 55168-0D050 |
NCP92,ZSP92 |
1 | ||
| 55169B - BRACKET, FRONT FENDER MOUNTING, LH | ||||
| 55169-0D050 |
NCP92,ZSP92 |
1 | ||
| 55185 - BRACE, DASH PANEL TO COWL | ||||
| 55185-0D070 |
NCP92,ZSP92 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-0D200 |
NCP92,ZSP92 |
1 | ||
| 55214A - PAD, DASH PANEL INSULATOR, NO.2 | ||||
| 55214-0D100 |
NCP92,ZSP92 |
1 | ||
| 55215A - PAD, DASH PANEL INSULATOR, NO.3 | ||||
| 55215-0D100 |
NCP92,ZSP92 |
1 | ||
| 55216 - PAD, DASH PANEL INSULATOR, NO.4 | ||||
| 55216-0D090 |
NCP92,ZSP92 |
1 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-0D140 |
NCP92,ZSP92 |
1 | ||
| 55753E - BRACKET, INSTRUMENT PANEL TO COWL, NO.1 | ||||
| 55753-0D100 |
NCP92,ZSP92 |
1 | ||
| 55754E - BRACKET, INSTRUMENT PANEL TO COWL, NO.2 | ||||
| 55754-0D060 |
NCP92,ZSP92 |
1 | ||
| 55774B - BRACKET, COWL TOP INNER TO PILLAR BRACE, RH | ||||
| 55774-0D010 |
NCP92,ZSP92 |
1 | ||
| 55775B - BRACKET, COWL TOP INNER TO PILLAR BRACE, LH | ||||
| 55775-0D010 |
NCP92,ZSP92 |
1 | ||
| 57155A - REINFORCEMENT, FRONT SIDE MEMBER, NO.3 RH | ||||
| 57155-0D060 |
NCP92,ZSP92 |
1 | ||
| 57156A - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH | ||||
| 57156-0D020 |
NCP92,ZSP92 |
1 | ||
| Common parts | ||||
| 90109-06380 | ||||
| 90109-C0032 | ||||
| 90119-C0203 | ||||
