NCP92L-BEPHKC (2008)

Toyota Vios (China)

Production Feb 2008 - Aug 2010
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0802- )

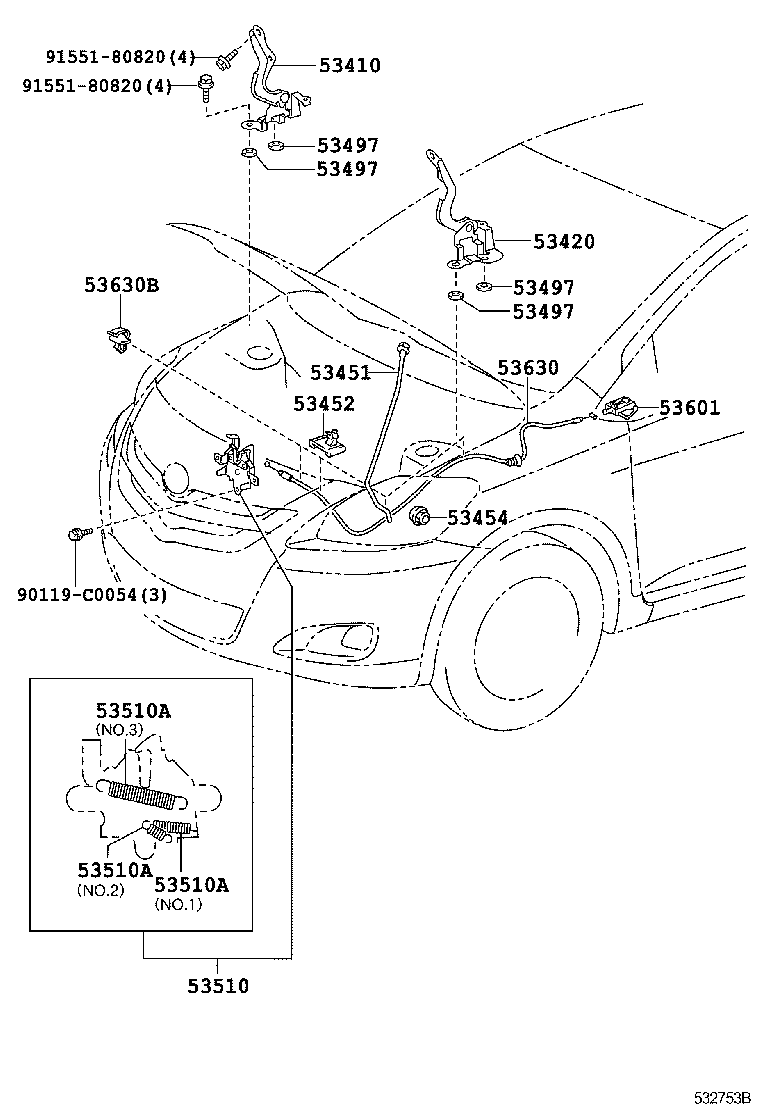

Click highlighted areas on diagram

diagram 53410 53420 53451 53452 53454 53497 53497 53497 53497 53510 53510A 53510A 53510A 53601 53630 53630B 90119C0054 9155180820 9155180820
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-0D170

NCP92,ZSP92

 1
53420 - HINGE ASSY, HOOD, LH
53420-0D170

NCP92,ZSP92

 1
53451 - ROD, HOOD SUPPORT
53440-0D060

NCP92,ZSP92

 1
53452 - HOLDER, HOOD STAY
53452-0D020

NCP92,ZSP92

 1
53454 - CLIP, HOOD SUPPORT ROD
53454-0D020

NCP92,ZSP92

 1
53497 - PAD, HOOD HINGE, NO.1
53497-10020

NCP92,ZSP92

T=1.5

 4
53497-42010

NCP92,ZSP92

T=0.5

 4
53497 - PAD, HOOD HINGE, NO.1
53497-10020

NCP92,ZSP92

T=1.5

 4
53497-42010

NCP92,ZSP92

T=0.5

 4
53497 - PAD, HOOD HINGE, NO.1
53497-10020

NCP92,ZSP92

T=1.5

 4
53497-42010

NCP92,ZSP92

T=0.5

 4
53497 - PAD, HOOD HINGE, NO.1
53497-10020

NCP92,ZSP92

T=1.5

 4
53497-42010

NCP92,ZSP92

T=0.5

 4
53510 - LOCK ASSY, HOOD
53510-0D210

NCP92,ZSP92

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-16077

NCP92,ZSP92

WD=1.6,CW=12,NO.3

 1
90506-09055

NCP92,ZSP92

WD=0.9,CW=21,NO.1

 1
90506-12063

NCP92,ZSP92

WD=1.2,CW=8.5,NO.2

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-16077

NCP92,ZSP92

WD=1.6,CW=12,NO.3

 1
90506-09055

NCP92,ZSP92

WD=0.9,CW=21,NO.1

 1
90506-12063

NCP92,ZSP92

WD=1.2,CW=8.5,NO.2

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-16077

NCP92,ZSP92

WD=1.6,CW=12,NO.3

 1
90506-09055

NCP92,ZSP92

WD=0.9,CW=21,NO.1

 1
90506-12063

NCP92,ZSP92

WD=1.2,CW=8.5,NO.2

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-0D010B2

NCP92,ZSP92..GLI,GLXI

DK.GRAY,TRIM41

 1
53601-0D010E2

NCP92,ZSP92..GLI,GLXI

GREGE,TRIM41

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-0D100

NCP92,ZSP92

 1
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90469-06005

NCP92,ZSP92

 4
Common parts
90119-C0054
91551-80820
