NCP92L-BEPHKC (2008)

Toyota Vios (China)

Production Feb 2008 - Aug 2010
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

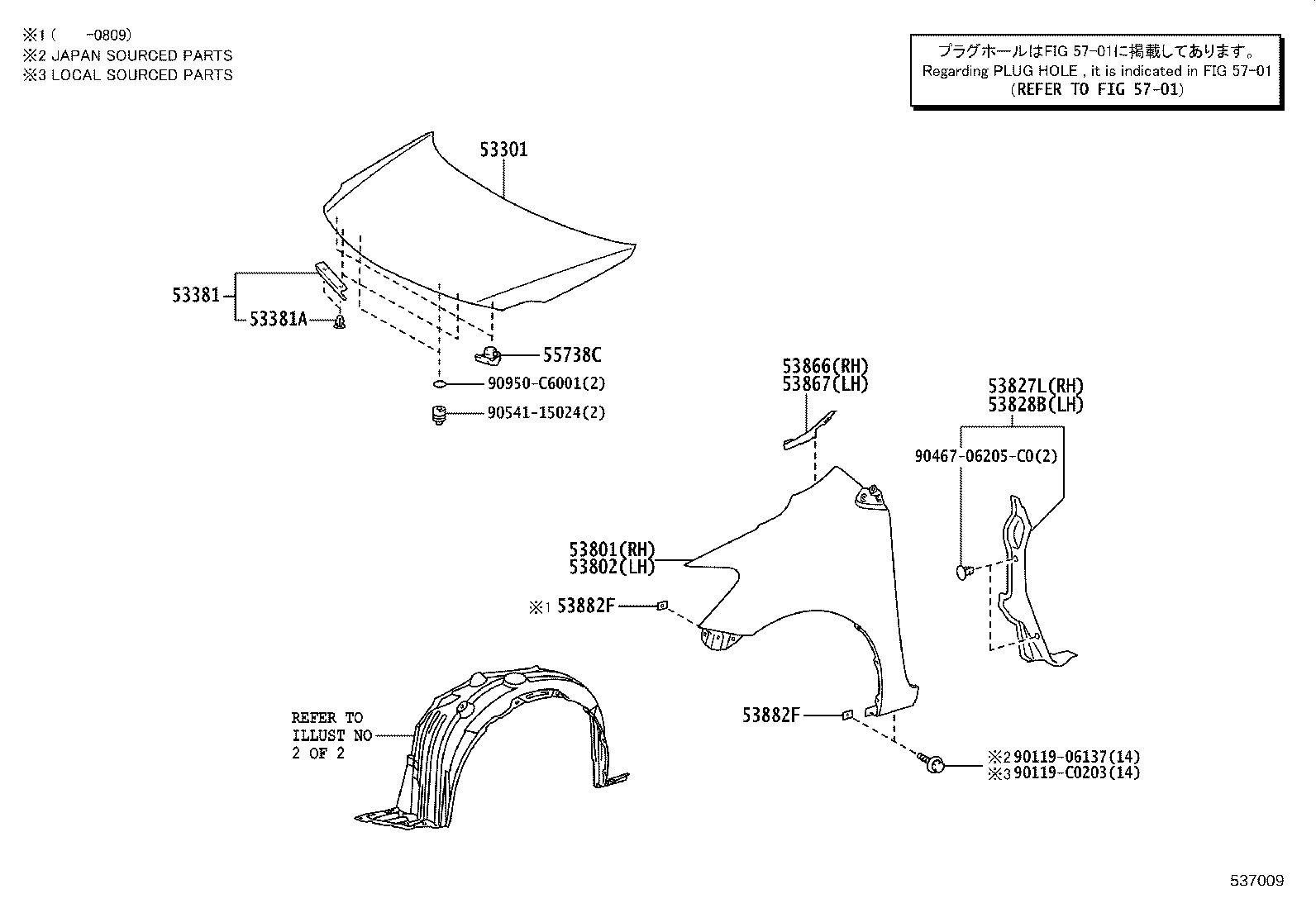

ILLUST NO. 1 OF 2(0802- )

Click highlighted areas on diagram

diagram 53301 53381 53381A 53801 53802 53827L 53828B 53866 53867 53882F 53882F 55738C 5701 9011906137 90119C0203 9046706205C0 9054115024 90950C6001
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-0D100

NCP92,ZSP92

 1
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-0D060

NCP92,ZSP92

 2
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08063

NCP92,ZSP92

 4
53801 - FENDER SUB-ASSY, FRONT RH
53811-52240

NCP92,ZSP92..GLI,GLS

 1
53802 - FENDER SUB-ASSY, FRONT LH
53812-52240

NCP92,ZSP92..GLI,GLS

 1
53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH
53827-0D060

NCP92,ZSP92

 1
53828B - PROTECTOR, FRONT FENDER SIDE PANEL, LH
53828-0D060

NCP92,ZSP92

 1
53866 - SEAL, FRONT FENDER TO COWL SIDE, RH
53866-0D050

NCP92,ZSP92

 1
53867 - SEAL, FRONT FENDER TO COWL SIDE, LH
53867-0D050

NCP92,ZSP92

 1
53882F - SEAL, FRONT FENDER
53882-16030

NCP92,ZSP92

 6
53882-16030

NCP92,ZSP92

 8
53882F - SEAL, FRONT FENDER
53882-16030

NCP92,ZSP92

 6
53882-16030

NCP92,ZSP92

 8
55738C - STOPPER, HOOD, RH
55738-52050

NCP92,ZSP92

 3
Common parts
90119-06137
90119-C0203
90467-06205C0
90541-15024
90950-C6001
Linked diagrams
5701

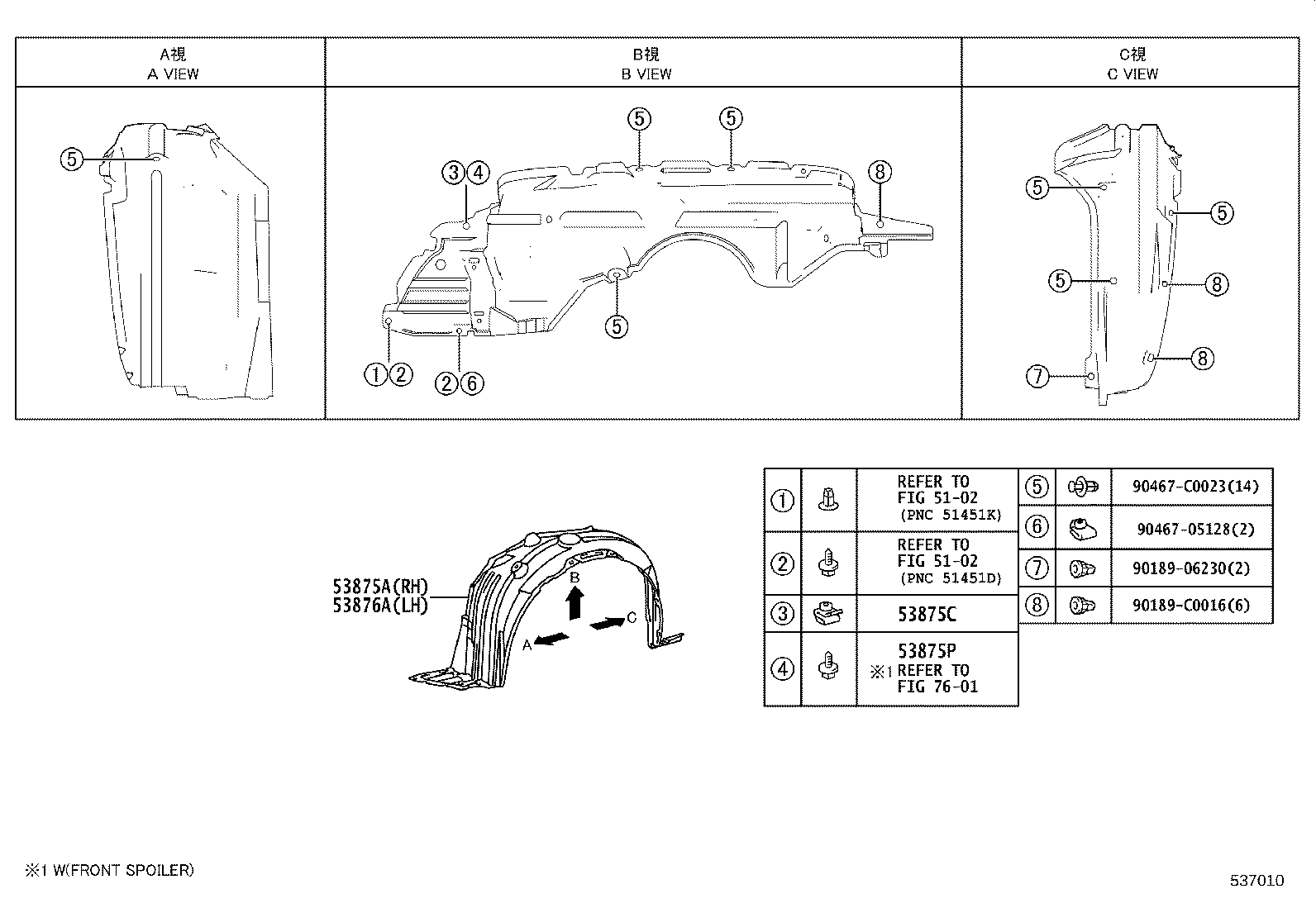

ILLUST NO. 2 OF 2(0802- )

Click highlighted areas on diagram

FENDER LINER

diagram 5102 5102 53875A 53875C 53875P 53876A 7601 9018906230 90189C0016 9046705128 90467C0023
Part # Description Qty Price
53875A - LINER, FRONT FENDER, RH
53875-0D110

NCP92,ZSP92

 1
53875C - CLIP, FRONT FENDER LINER
90467-05114

NCP92,ZSP92

 2
53875P - SCREW, NO.1
90159-60590

NCP92,ZSP92

 2
53876A - LINER, FRONT FENDER, LH
53876-0D100

NCP92,ZSP92

 1
Common parts
90189-06230
90189-C0016
90467-05128
90467-C0023
Linked diagrams
5102
7601
