NCP92L-BEPHKC (2008)

Toyota Vios (China)

Production Feb 2008 - Aug 2010
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0802- )

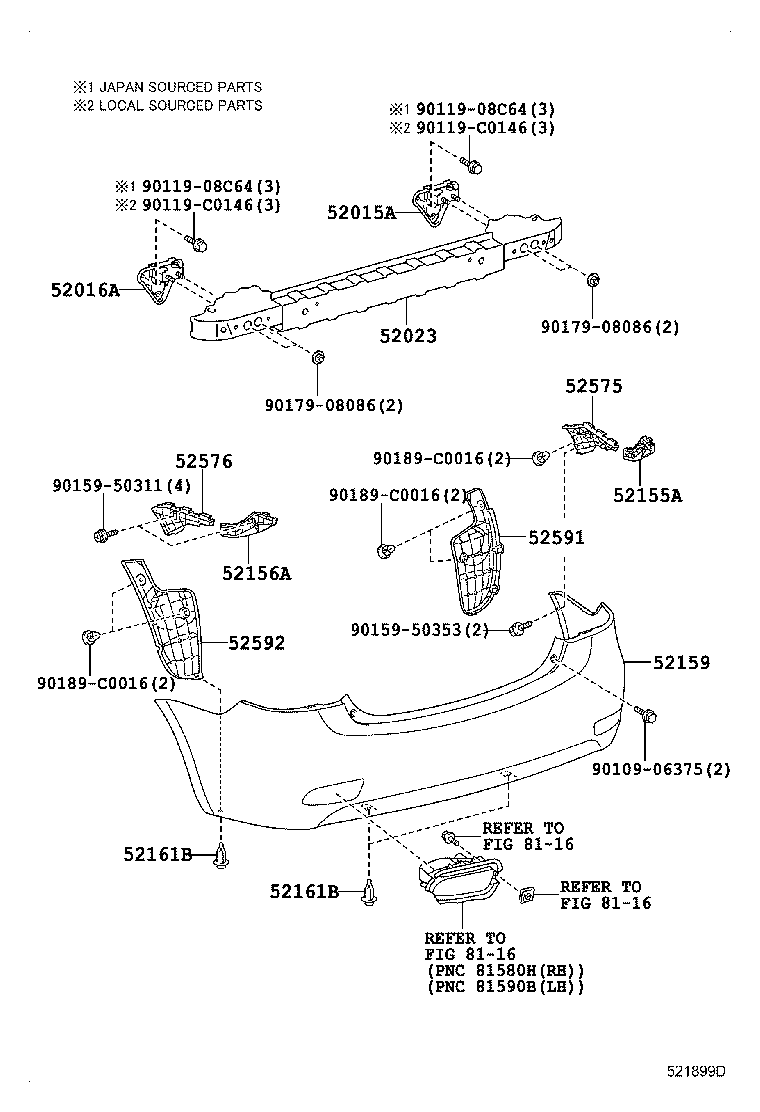

Click highlighted areas on diagram

diagram 52015A 52016A 52023 52155A 52156A 52159 52161B 52161B 52575 52576 52591 52592 8116 8116 8116 9010906375 9011908C64 9011908C64 90119C0146 90119C0146 9015950311 9015950353 9017908086 9017908086 90189C0016 90189C0016 90189C0016
Part # Description Qty Price
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52015-0D070

NCP92,ZSP92

 1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52015-0D070

NCP92,ZSP92

 1
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-0D040

NCP92,ZSP92

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-0D030

NCP92,ZSP92

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-0D030

NCP92,ZSP92

 1
52159 - COVER, REAR BUMPER
52159-0D982

NCP92,ZSP92

PAINT REQ.

 1
52161B - PIECE, REAR BUMPER
52161-16010

NCP92,ZSP92

 4
52161B - PIECE, REAR BUMPER
52161-16010

NCP92,ZSP92

 4
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-0D070

NCP92,ZSP92

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-0D070

NCP92,ZSP92

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-0D080

NCP92,ZSP92

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-0D080

NCP92,ZSP92

 1
Common parts
90109-06375
90119-08C64
90119-C0146
90159-50311
90159-50353
90179-08086
90189-C0016
Linked diagrams
8116
