NCP92L-BEPHKC (2008)

Toyota Vios (China)

Production Feb 2008 - Aug 2010
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0802- )

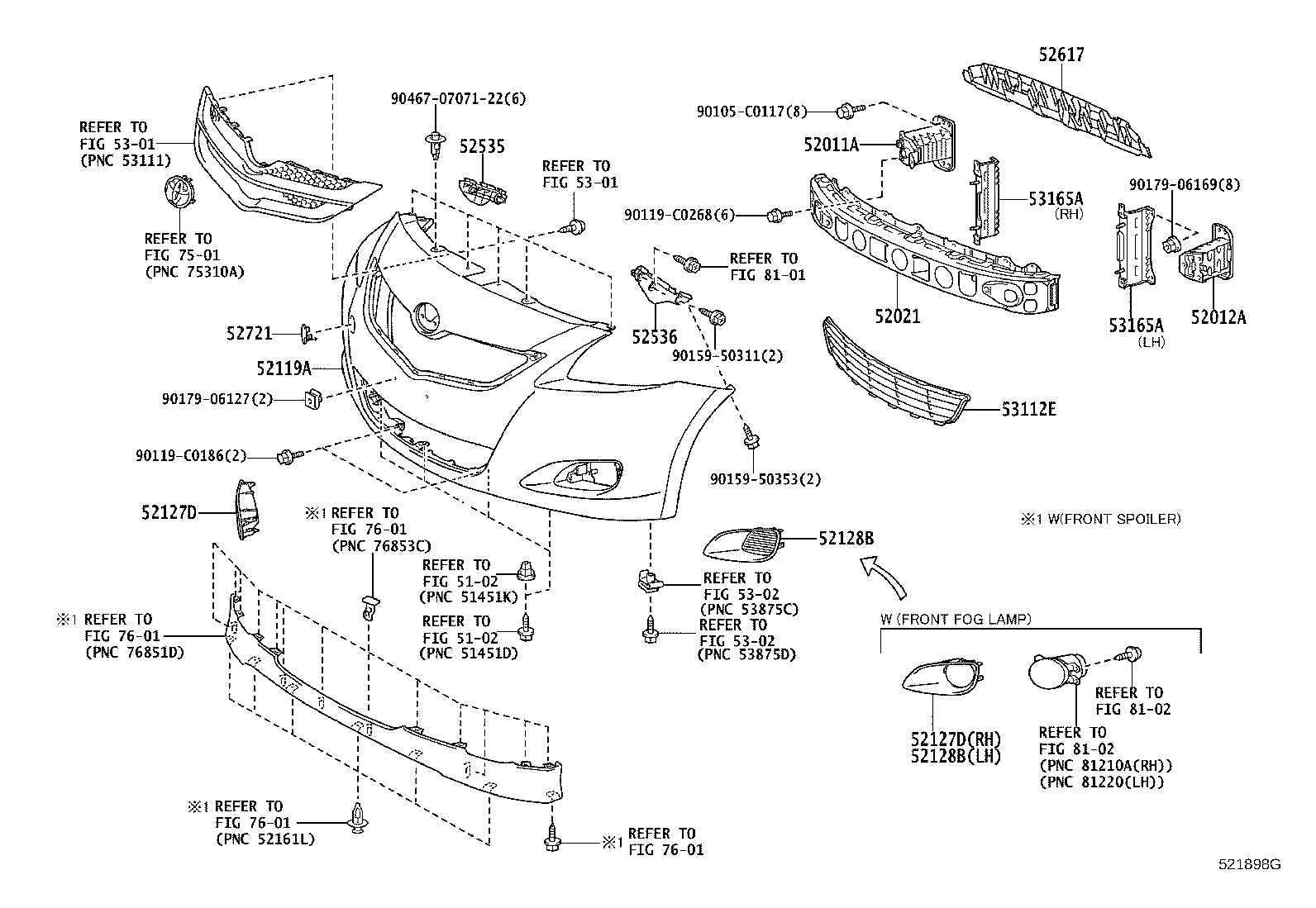

Click highlighted areas on diagram

diagram 5102 5102 52011A 52012A 52021 52119A 52127D 52127D 52128B 52128B 52535 52536 52617 52721 5301 5301 5302 5302 53112E 53165A 53165A 7501 7601 7601 7601 7601 8101 8102 8102 90105C0117 90119C0186 90119C0268 9015950311 9015950353 9017906127 9017906169 904670707122
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-0D030

NCP92,ZSP92

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-0D030

NCP92,ZSP92

 1
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-0D100

NCP92,ZSP92

 1
52119A - COVER, FRONT BUMPER
52119-0D998

NCP92,ZSP92..GLI,GLXI

PAINT REQ.

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-0D200

NCP92

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-0D200

NCP92

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-0D100

NCP92

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-0D100

NCP92

 1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-0D060

NCP92,ZSP92

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-0D060

NCP92,ZSP92

 1
52617 - ABSORBER, RADIATOR SUPPORT, UPPER
52617-0D050

NCP92,ZSP92

 1
52721 - MOULDING, FRONT BUMPER EXTENSION, RH
52721-0D903

NCP92,ZSP92

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-0D150

NCP92,ZSP92

NO PAINT REQ.

 1
53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1
53165-0D030

NCP92,ZSP92

LH

 1
53164-0D030

NCP92,ZSP92

RH

 1
53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1
53165-0D030

NCP92,ZSP92

LH

 1
53164-0D030

NCP92,ZSP92

RH

 1
Common parts
90105-C0117
90119-C0186
90119-C0268
90159-50311
90159-50353
90179-06127
90179-06169
90467-0707122
Linked diagrams
5102
5301
5302
7501
7601
8101
8102
