NCP92L-BEPHKC (2008)
Toyota Vios (China)
Production
Feb 2008
-
Aug 2010
Engine
2NZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0802- )

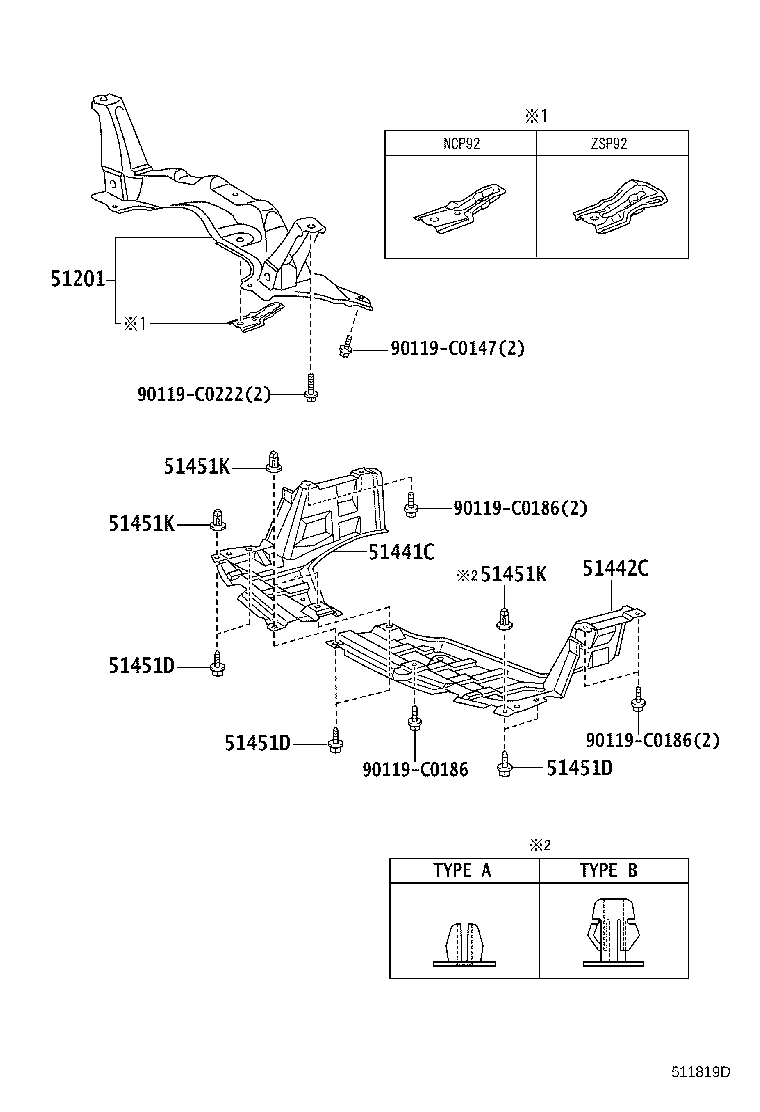

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-0D110 |
NCP92 |
1 | ||
| 51201-0D111 |
NCP92 |
1 | ||
| 51441C - COVER, ENGINE UNDER, RH | ||||
| 51441-0D180 |
NCP92 |
1 | ||
| 51442C - COVER, ENGINE UNDER, LH | ||||
| 51442-0D110 |
NCP92 |
1 | ||
| 51451D - SCREW, NO.1 | ||||
| 90159-60383 |
NCP92,ZSP92 |
6 | ||
| 51451D - SCREW, NO.1 | ||||
| 90159-60383 |
NCP92,ZSP92 |
6 | ||
| 51451D - SCREW, NO.1 | ||||
| 90159-60383 |
NCP92,ZSP92 |
6 | ||
| 51451K - GROMMET, SCREW, NO.1 | ||||
| 90189-06076 |
NCP92,ZSP92 |
1 | ||
| 51451K - GROMMET, SCREW, NO.1 | ||||
| 90189-06076 |
NCP92,ZSP92 |
1 | ||
| 51451K - GROMMET, SCREW, NO.1 | ||||
| 90189-06076 |
NCP92,ZSP92 |
1 | ||
| Common parts | ||||
| 90119-C0147 | ||||
| 90119-C0186 | ||||
| 90119-C0222 | ||||
