NCP92L-BEPHKC (2008)
Toyota Vios (China)
Production
Feb 2008
-
Aug 2010
Engine
2NZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

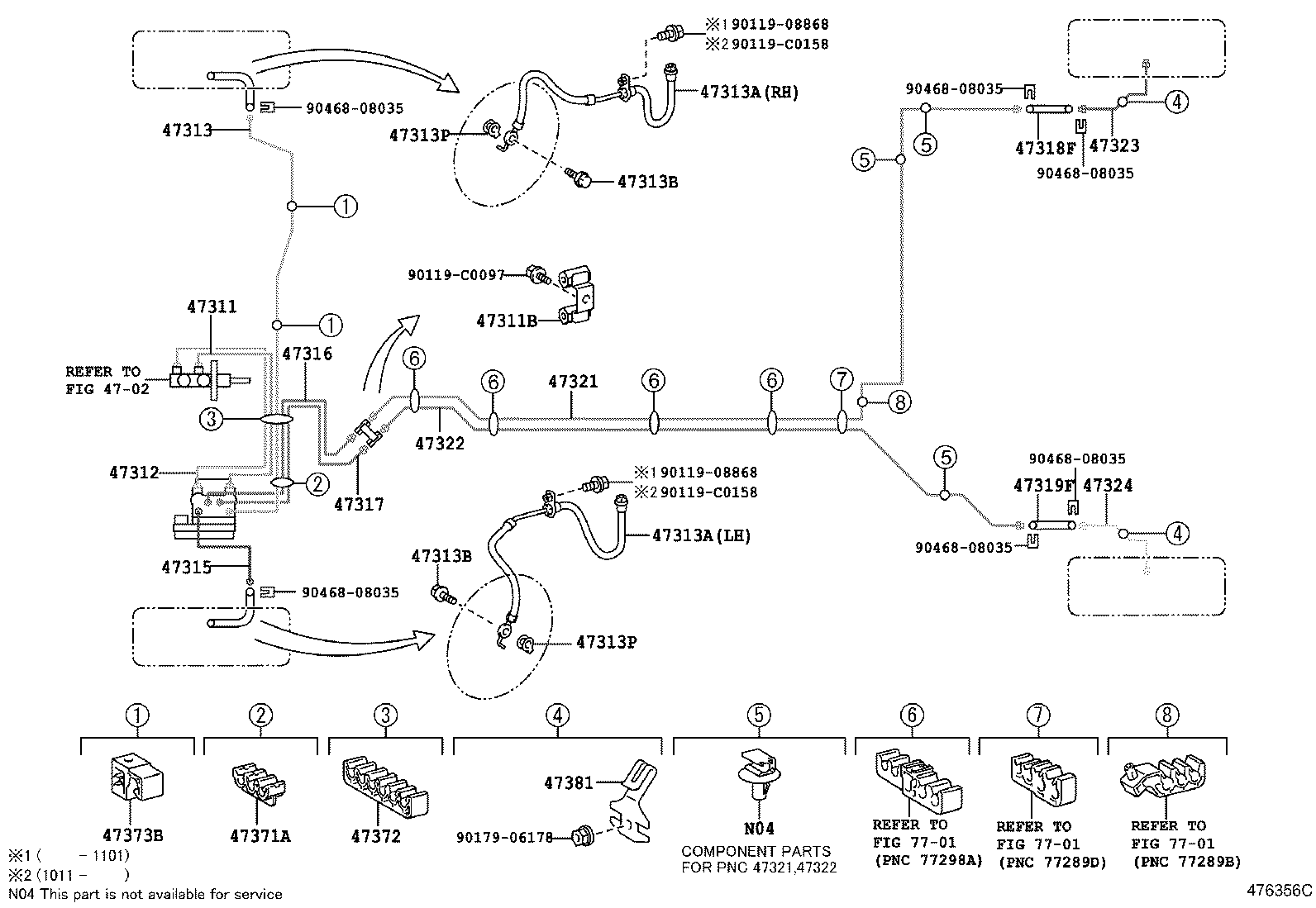

ILLUST NO. 1 OF 2(0802- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-0D300 |
NCP92,ZSP92 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10260 |
NCP92,ZSP92 |
1 | ||
| 90412-10260 |
NCP92,ZSP92 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-0D270 |
NCP92,ZSP92 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-0D180 |
NCP92,ZSP92 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-C2010 |
NCP92,ZSP92 RH |
1 | ||
| 90947-C2011 |
NCP92,ZSP92 LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-C2010 |
NCP92,ZSP92 RH |
1 | ||
| 90947-C2011 |
NCP92,ZSP92 LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-C0001 |
NCP92,ZSP92 |
2 | ||
| 90401-10058 |
NCP92,ZSP92 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP92,ZSP92 |
2 | ||
| 90401-C0001 |
NCP92,ZSP92 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP92,ZSP92 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP92,ZSP92 |
2 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-0D240 |
NCP92,ZSP92 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-0D190 |
NCP92,ZSP92 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-0D190 |
NCP92,ZSP92 |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-C2012 |
NCP92,ZSP92 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-C2013 |
NCP92,ZSP92 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-0D200 |
NCP92,ZSP92 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-0D200 |
NCP92,ZSP92 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-0D150 |
NCP92,ZSP92 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-0D150 |
NCP92,ZSP92 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90464-00868 |
NCP92,ZSP92 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90464-00890 |
NCP92,ZSP92 |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01C82 |
NCP92,ZSP92 |
2 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-52020 |
NCP92,ZSP92 |
2 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90119-C0097 | ||||
| 90119-C0158 | ||||
| 90179-06178 | ||||
| 90468-08035 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||

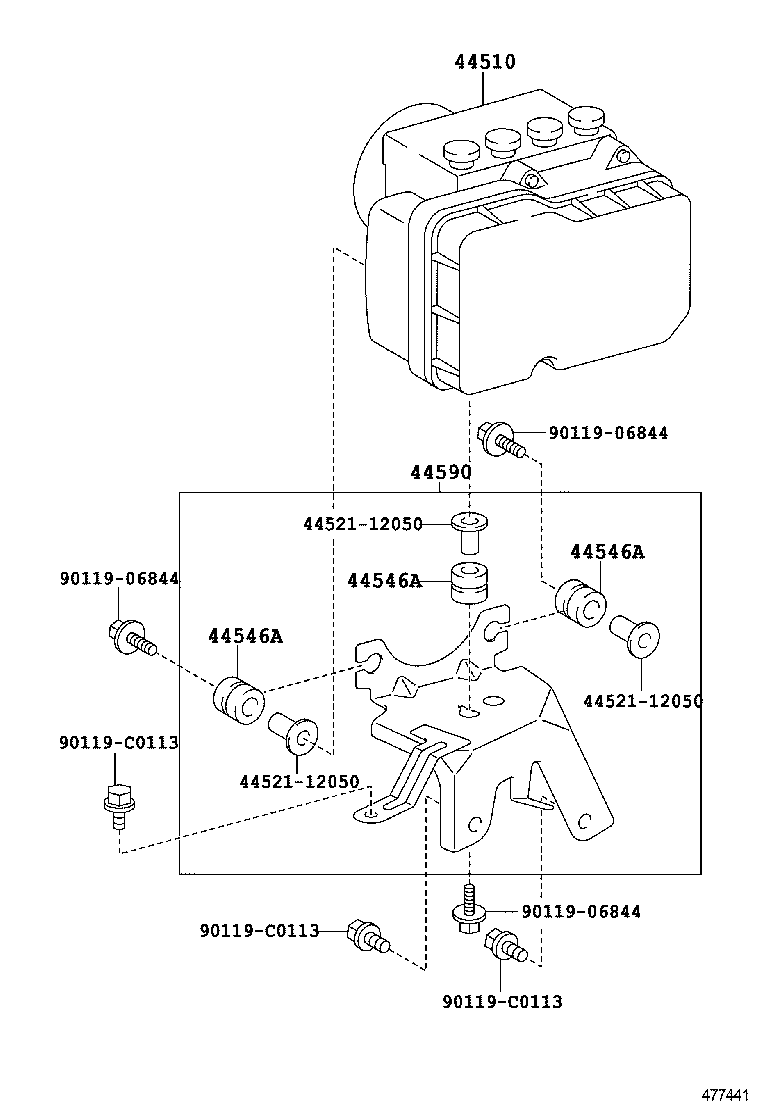

ILLUST NO. 2 OF 2(0802- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-0D070 |
NCP92,ZSP92 |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
NCP92,ZSP92 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
NCP92,ZSP92 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
NCP92,ZSP92 |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-52170 |
NCP92,ZSP92 |
1 | ||
| Common parts | ||||
| 44521-12050 | ||||
| 90119-06844 | ||||
| 90119-C0113 | ||||
