NCP92L-BEPHKC (2008)

Toyota Vios (China)

Production Feb 2008 - Aug 2010
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0802- )

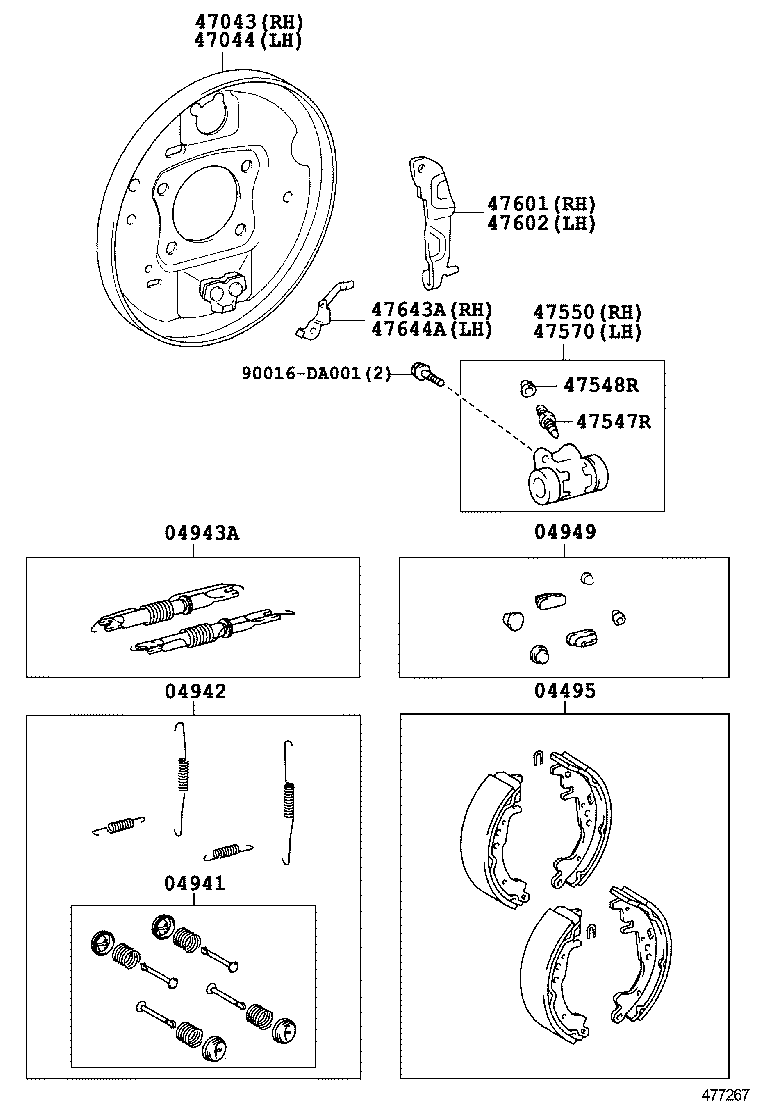

Click highlighted areas on diagram

diagram 04495 04941 04942 04943A 04949 47043 47044 47547R 47548R 47550 47570 47601 47602 47643A 47644A 90016DA001
Part # Description Qty Price
04495 - SHOE KIT, REAR BRAKE
04495-0D070

NCP92,ZSP92

MARK SABC LN521-FF

 1
04941 - SPRING KIT, REAR BRAKE SHOE HOLD DOWN
04941-0D070

NCP92,ZSP92

 1
04942 - SPRING KIT, REAR BRAKE
04942-0D080

NCP92,ZSP92

 1
04943A - STRUT KIT, REAR BRAKE
04943-0D050

NCP92,ZSP92

 1
04949 - PLUG KIT, REAR BRAKE
04949-0D040

NCP92,ZSP92

 1
47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043-0D070

NCP92,ZSP92

 1
47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47044-0D070

NCP92,ZSP92

 1
47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47547-20010

NCP92,ZSP92

 2
47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
31478-30010

NCP92,ZSP92

 2
47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47550-0D060

NCP92,ZSP92

 1
47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47570-0D040

NCP92,ZSP92

 1
47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)
47601-0D070

NCP92,ZSP92

 1
47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)
47602-0D070

NCP92,ZSP92

 1
47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH
47643-0D070

NCP92,ZSP92

 1
47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH
47644-0D070

NCP92,ZSP92

 1
Common parts
90016-DA001
