NCP92L-BEPHKC (2008)

Toyota Vios (China)

Production Feb 2008 - Aug 2010
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0802- )

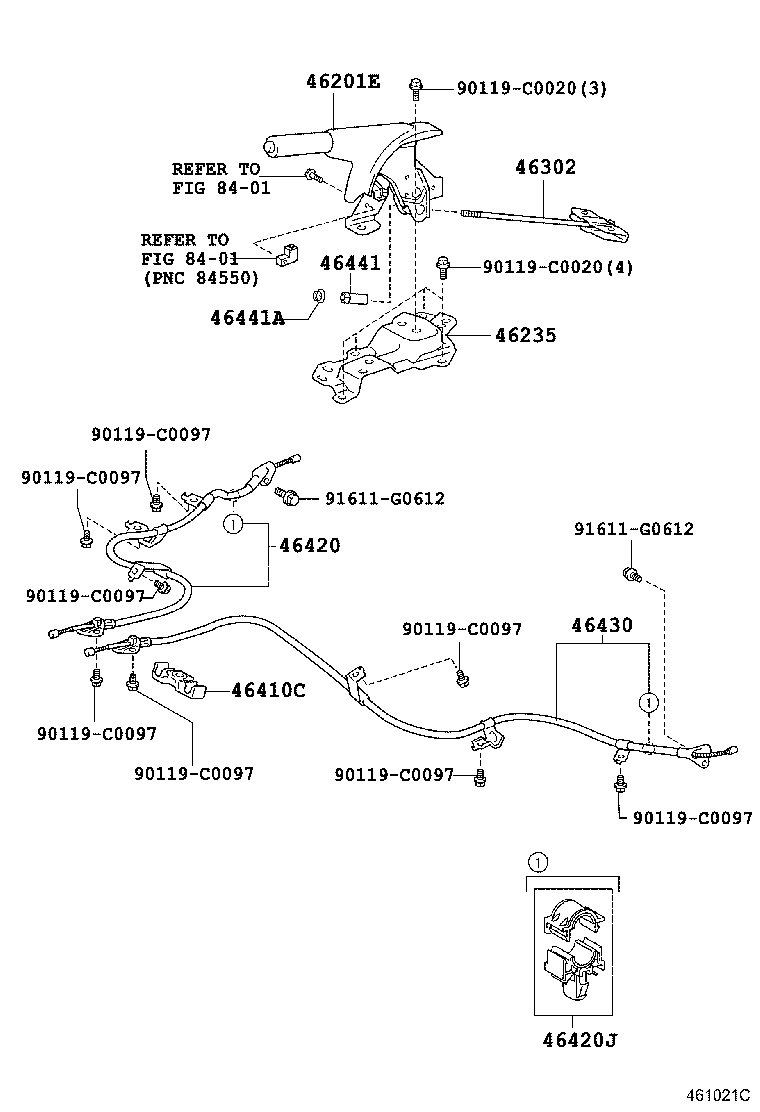

Click highlighted areas on diagram

diagram 46201E 46235 46302 46410C 46420 46420J 46430 46441 46441A 8401 8401 90119C0020 90119C0020 90119C0097 90119C0097 90119C0097 90119C0097 90119C0097 90119C0097 90119C0097 90119C0097 91611G0612 91611G0612
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-0D130B0

NCP92,ZSP92..GLI

DK.GRAY,TRIM4#

 1
46201-0D140B0

NCP92

PARKING BRAKE-B+CHROME BOTTON,DK.GRAY,TRIM4#

 1
46235 - BRACKET, PARKING BRAKE LEVER SUPPORT
46235-0D040

NCP92,ZSP92

 1
46302 - ROD SUB-ASSY, PARKING BRAKE PULL, NO.1
46302-0D040

NCP92,ZSP92

 1
46410C - CLAMP(FOR PARKING BRAKE FRONT CABLE)
46411-0D040

NCP92,ZSP92

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-0D140

NCP92,ZSP92

 1
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
46402-52030

NCP92,ZSP92

 2
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-0D140

NCP92,ZSP92

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-52010

NCP92,ZSP92

 1
46441A - NUT, WIRE ADJUSTING, NO.2
90179-06299

NCP92,ZSP92

 1
90178-C0032

NCP92,ZSP92

 1
Common parts
90119-C0020
90119-C0097
91611-G0612
Linked diagrams
8401
