NCP92L-BEPHKC (2008)

Toyota Vios (China)

Production Feb 2008 - Aug 2010
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0802-1008)ZSP92 ; (0802- )NCP92

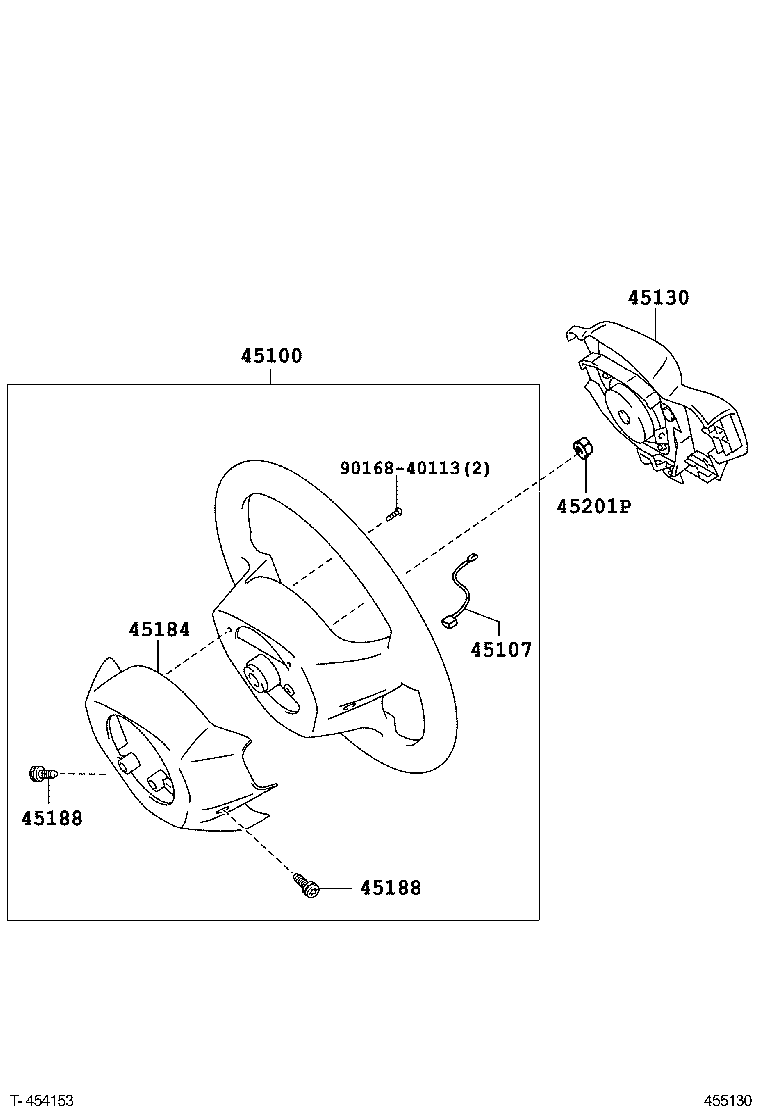

Click highlighted areas on diagram

diagram 45100 45107 45130 45184 45188 45188 45201P 9016840113
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-0D220B0

NCP92,ZSP92..GLI,GLXI

3-SPOKE,URETHANE,DK.GRAY,TRIM4#

 1
45107 - WIRE SUB-ASSY, HORN BUTTON
45107-48010

NCP92,ZSP92

 1
45130 - BUTTON ASSY, HORN
45130-0D210B0

NCP92,ZSP92..GLI,GLXI

DK.GRAY,TRIM4#

 1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-0D090B0

NCP92,ZSP92..GLI,GLXI

DK.GRAY,TRIM4#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

NCP92,ZSP92

L=18

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

NCP92,ZSP92

L=18

 2
45201P - NUT, STEERING WHEEL SET
90178-C0025

NCP92,ZSP92

 1
Common parts
90168-40113
