NCP92L-BEPHKC (2008)

Toyota Vios (China)

Production Feb 2008 - Aug 2010
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0802-1007)GLXI ; (0802- )GLI,GLS

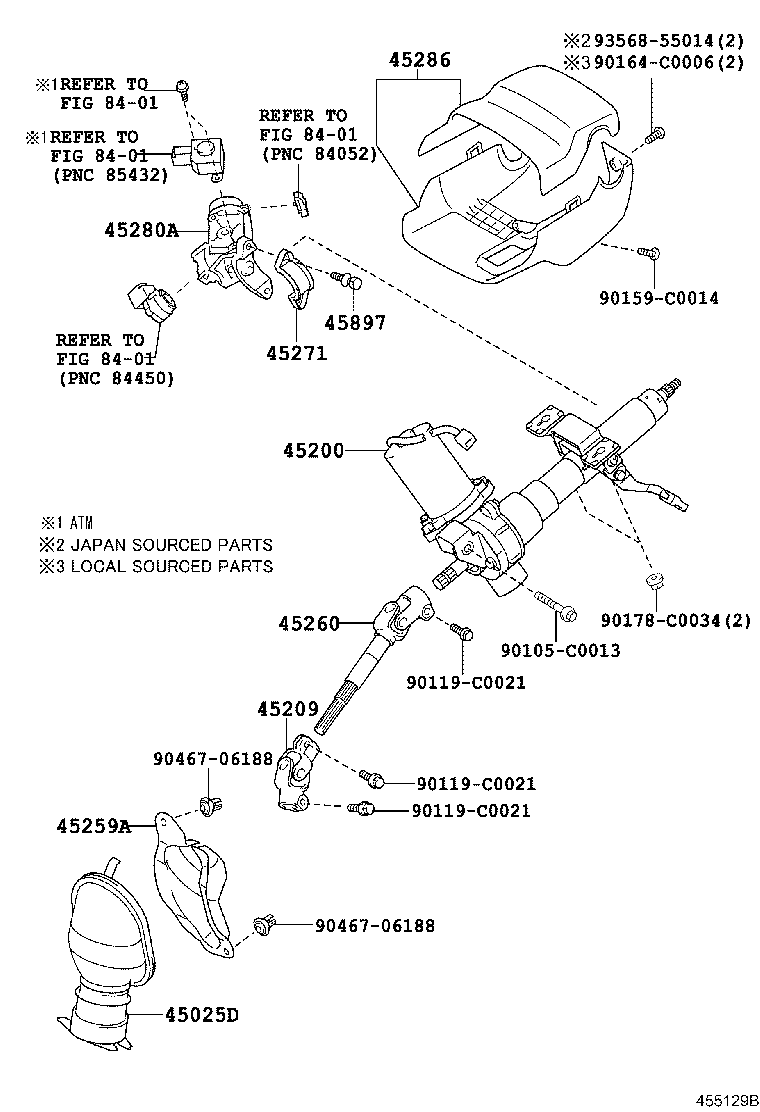

Click highlighted areas on diagram

diagram 45025D 45200 45209 45259A 45260 45271 45280A 45286 45897 8401 8401 8401 8401 90105C0013 90119C0021 90119C0021 90119C0021 90159C0014 90164C0006 90178C0034 9046706188 9046706188 9356855014
Part # Description Qty Price
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-0D140

NCP92,ZSP92

 1
45200 - POST ASSY, STEERING
45200-0D350

NCP92,ZSP92

 1
45200-0D290

NCP92,ZSP92

 1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-0D040

NCP92,ZSP92

 1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-0D080

NCP92,ZSP92

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-0D120

NCP92,ZSP92

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-52030

NCP92,ZSP92

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-0D050

NCP92,ZSP92..4FC

 1
45286 - COVER, STEERING COLUMN
45286-52929B0

NCP92,ZSP92

DK.GRAY,TRIM1#,4#

 1
45286-52934B0

NCP92,ZSP92..GLI,GLXI

DK.GRAY,TRIM4#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

NCP92,ZSP92

 2
Common parts
90105-C0013
90119-C0021
90159-C0014
90164-C0006
90178-C0034
90467-06188
93568-55014
Linked diagrams
8401
