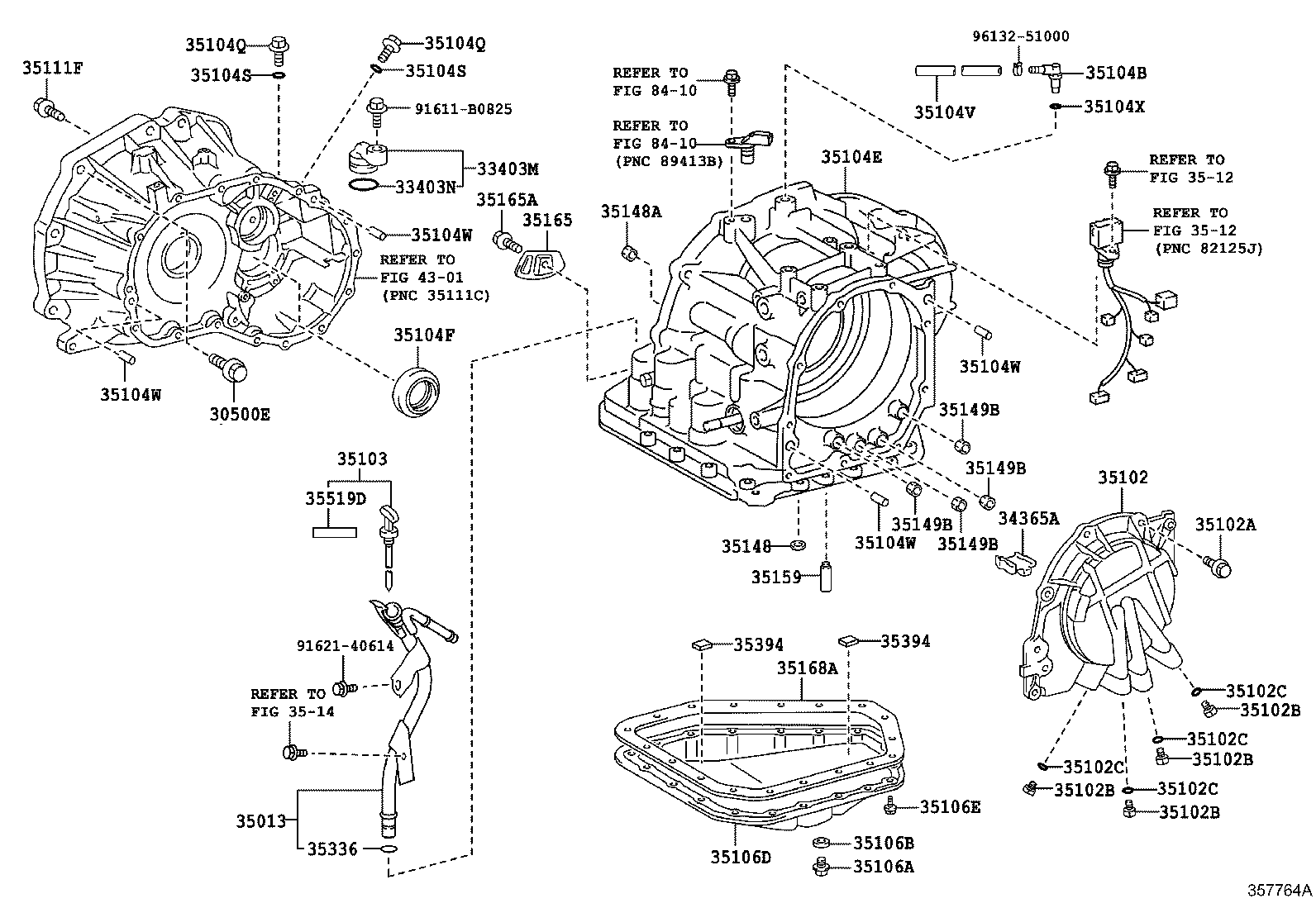

NCP92L-BEPHKC (2008)
Toyota Vios (China)
(0802- )NCP92..4FC
U441E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 91612-61045 |
NCP92,ZSP92..4FC *10-1.25PX45-30 |
7 | ||
| 91612-61045 |
NCP92,ZSP92..4FC *10-1.25PX45-30,(J) |
7 | ||
| 90119-C0139 |
NCP92,ZSP92..4FC *10-1.25PX45-30,(L) |
7 | ||
| 33403M - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM) | ||||
| 33403-35230 |
NCP92..4FC |
1 | ||
| 33403N - RING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER) | ||||
| 96711-24030 |
NCP92..4FC |
1 | ||
| 34365A - RETAINER, OUTER RACE | ||||
| 34365-52020 |
NCP92..4FC |
1 | ||
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-52140 |
NCP92..4FC |
1 | ||
| 35102 - COVER SUB-ASSY, TRANSAXLE REAR | ||||
| 35102-52030 |
NCP92..4FC |
1 | ||
| 35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING) | ||||
| 90105-08375 |
NCP92..4FC *8-1.25PX25-25 |
9 | ||
| 35102B - PLUG(FOR TRANSAXLE REAR COVER) | ||||
| 90341-08001 |
NCP92,ZSP92..4FC |
4 | ||
| 35102B - PLUG(FOR TRANSAXLE REAR COVER) | ||||
| 90341-08001 |
NCP92,ZSP92..4FC |
4 | ||
| 35102B - PLUG(FOR TRANSAXLE REAR COVER) | ||||
| 90341-08001 |
NCP92,ZSP92..4FC |
4 | ||
| 35102B - PLUG(FOR TRANSAXLE REAR COVER) | ||||
| 90341-08001 |
NCP92,ZSP92..4FC |
4 | ||
| 35102C - RING, O(FOR TRANSAXLE REAR COVER PULG) | ||||
| 90301-06196 |
NCP92,ZSP92..4FC |
4 | ||
| 35102C - RING, O(FOR TRANSAXLE REAR COVER PULG) | ||||
| 90301-06196 |
NCP92,ZSP92..4FC |
4 | ||
| 35102C - RING, O(FOR TRANSAXLE REAR COVER PULG) | ||||
| 90301-06196 |
NCP92,ZSP92..4FC |
4 | ||
| 35102C - RING, O(FOR TRANSAXLE REAR COVER PULG) | ||||
| 90301-06196 |
NCP92,ZSP92..4FC |
4 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-52200 |
NCP92..4FC |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03156 |
NCP92..4FC |
1 | ||
| 35104E - CASE SUB-ASSY, AUTOMATIC TRANSAXLE | ||||
| 35104-52090 |
NCP92..4FC |
1 | ||
| 35104F - SEAL, OIL (FOR TRANSAXLE CASE) | ||||
| 90311-34026 |
NCP92..4FC |
1 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
NCP92..4FC |
2 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
NCP92..4FC |
2 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
NCP92..4FC |
2 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
NCP92..4FC |
2 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90447-11039 |
NCP92..4FC |
1 | ||
| 35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE) | ||||
| 90250-10034 |
NCP92..4FC |
4 | ||
| 35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE) | ||||
| 90250-10034 |
NCP92..4FC |
4 | ||
| 35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE) | ||||
| 90250-10034 |
NCP92..4FC |
4 | ||
| 35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE) | ||||
| 90250-10034 |
NCP92..4FC |
4 | ||
| 35104X - RING, O (FOR BREATHER PLUG) | ||||
| 90301-08015 |
NCP92..4FC |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10011 |
NCP92..4FC |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
NCP92..4FC |
1 | ||
| 35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL | ||||
| 35106-52030 |
NCP92..4FC |
1 | ||
| 35106E - BOLT (FOR TRANSAXLE OIL PAN) | ||||
| 90119-06173 |
NCP92..4FC |
18 | ||
| 35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) | ||||
| 90105-08071 |
NCP92..4FC *8-1.25PX30-25 |
16 | ||
| 35148 - GASKET, GOVERNOR APPLY, NO.1 | ||||
| 35145-60020 |
NCP92..4FC |
1 | ||
| 35148A - GASKET, GOVERNOR APPLY, NO.2 | ||||
| 35148-12010 |
NCP92..4FC |
1 | ||
| 35149B - GASKET, TRANSAXLE CASE 2ND BRAKE | ||||
| 35149-12020 |
NCP92..4FC |
4 | ||
| 35149B - GASKET, TRANSAXLE CASE 2ND BRAKE | ||||
| 35149-12020 |
NCP92..4FC |
4 | ||
| 35149B - GASKET, TRANSAXLE CASE 2ND BRAKE | ||||
| 35149-12020 |
NCP92..4FC |
4 | ||
| 35149B - GASKET, TRANSAXLE CASE 2ND BRAKE | ||||
| 35149-12020 |
NCP92..4FC |
4 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-52010 |
NCP92..4FC |
1 | ||
| 35165 - PLATE, TRANSMISSION CASE, NO.1 | ||||
| 35165-52010 |
NCP92..4FC |
1 | ||
| 35165A - BOLT (FOR TRANSMISSION CASE PLATE NO.1) | ||||
| 90105-06049 |
NCP92..4FC |
1 | ||
| 35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN | ||||
| 35168-52010 |
NCP92..4FC |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
NCP92,ZSP92..4FC |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-48010 |
NCP92..4FC |
2 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-48010 |
NCP92..4FC |
2 | ||
| 35519D - LABEL, AUTOMATIC TRANSMISSION INFORMATION | ||||
| 35519-28041 |
NCP92,ZSP92..4FC |
1 | ||
| Common parts | ||||
| 91611-B0825 | ||||
| 91621-40614 | ||||
| 96132-51000 | ||||
| Linked diagrams | ||||
| 3512 | ||||
| 3514 | ||||
| 4301 | ||||
| 8410 | ||||
