NCP92L-BEPHKC (2008)
Toyota Vios (China)
Production
Feb 2008
-
Aug 2010
Engine
2NZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

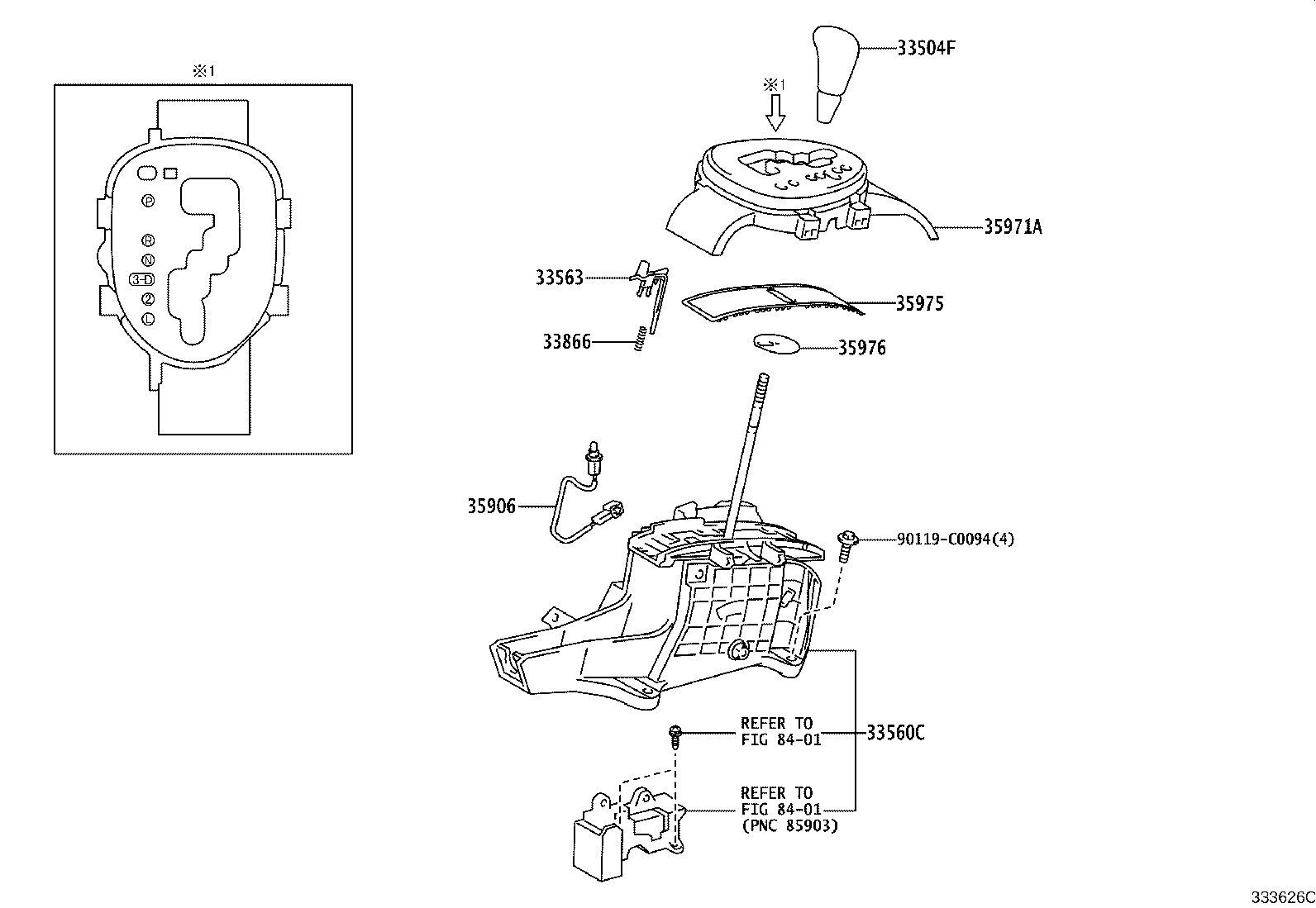

ILLUST NO. 1 OF 2(0802- )4FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-52080B0 |
NCP92,ZSP92..4FC..(GLI,GLXI) DK.GRAY,TRIM4# |
1 | ||
| 33560C - LEVER ASSY, SHIFT, LOWER | ||||
| 33560-0D070 |
NCP92,ZSP92..4FC |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-0D040 |
NCP92,ZSP92..4FC |
1 | ||
| 33866 - SPRING, SHIFT LOCK RELEASE | ||||
| 33866-0D020 |
NCP92,ZSP92..4FC |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-0D050 |
NCP92,ZSP92..4FC..(GLI,GLXI) |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-0D140 |
NCP92,ZSP92..4FC |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-0D040 |
NCP92,ZSP92..4FC |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-0D060 |
NCP92,ZSP92..4FC |
1 | ||
| Common parts | ||||
| 90119-C0094 | ||||
| Linked diagrams | ||||
| 8401 | ||||

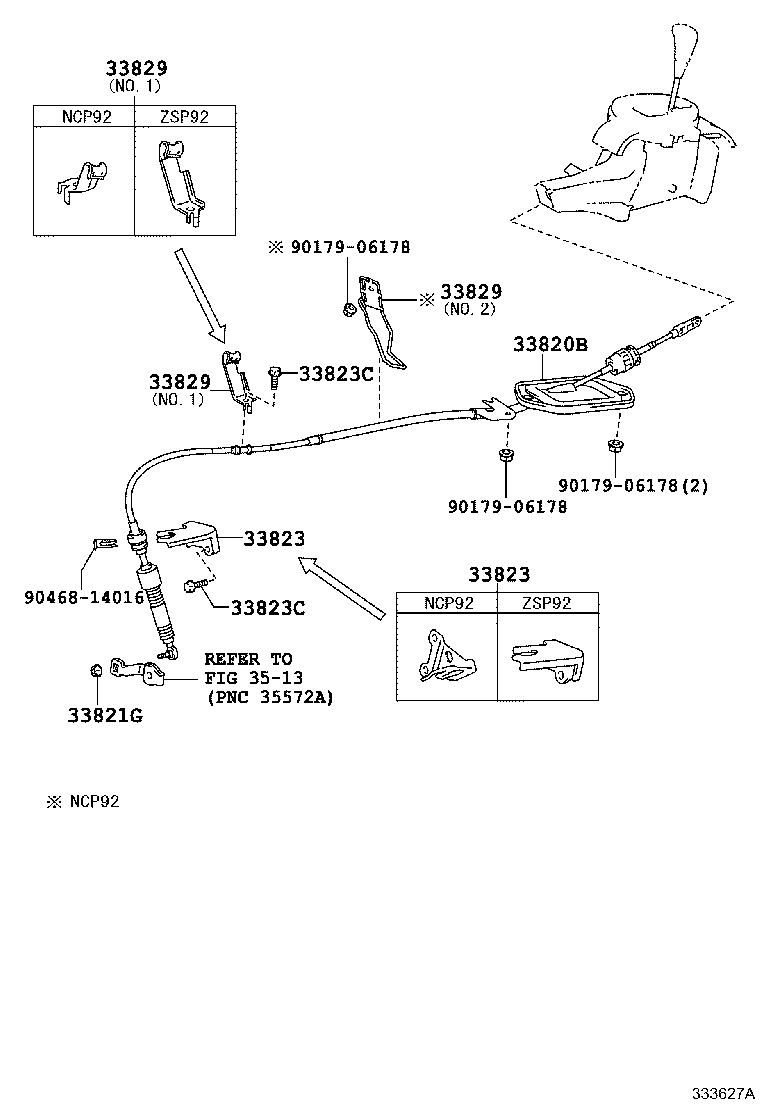

ILLUST NO. 2 OF 2(0802- )4FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-0D200 |
NCP92..4FC |
1 | ||
| 33821G - NUT (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90179-08061 |
NCP92,ZSP92..4FC |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-0D040 |
NCP92..4FC |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-0D040 |
NCP92..4FC |
1 | ||
| 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 91611-B0816 |
NCP92,ZSP92..4FC |
3 | ||
| 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 91611-B0816 |
NCP92,ZSP92..4FC |
3 | ||
| 33829 - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-0D020 |
NCP92..4FC NO.1 |
1 | ||
| 33829-52092 |
NCP92..4FC NO.2 |
1 | ||
| 33829-52092 |
NCP92..4FC NO.2 |
1 | ||
| 33829 - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-0D020 |
NCP92..4FC NO.1 |
1 | ||
| 33829-52092 |
NCP92..4FC NO.2 |
1 | ||
| 33829-52092 |
NCP92..4FC NO.2 |
1 | ||
| 33829 - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-0D020 |
NCP92..4FC NO.1 |
1 | ||
| 33829-52092 |
NCP92..4FC NO.2 |
1 | ||
| 33829-52092 |
NCP92..4FC NO.2 |
1 | ||
| Common parts | ||||
| 90179-06178 | ||||
| 90468-14016 | ||||
| Linked diagrams | ||||
| 3513 | ||||
