NCP92L-BEPHKC (2008)

Toyota Vios (China)

Production Feb 2008 - Aug 2010
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0802- )2NZFE

Click highlighted areas on diagram

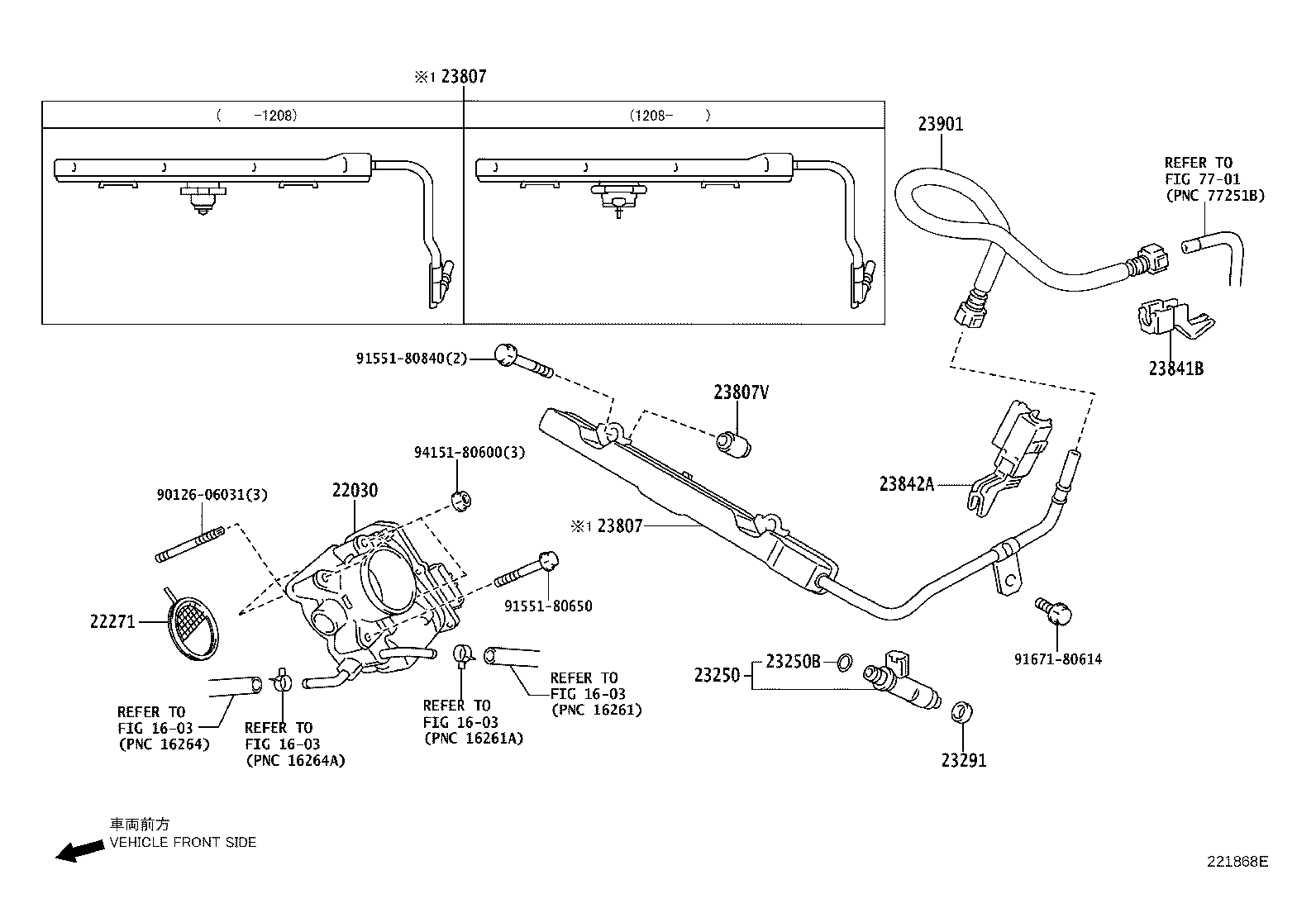

diagram 1603 1603 1603 1603 22030 22271 23250 23250B 23291 23807 23807 23807V 23841B 23842A 23901 7701 9012606031 9155180650 9155180840 9167180614 9415180600
Part # Description Qty Price
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-21030

2NZFE..NCP92

 1
22271 - GASKET, THROTTLE BODY
22271-21060

2NZFE..NCP92

 1
23250 - INJECTOR ASSY, FUEL
23209-21040

2NZFE..NCP92

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07037

2NZFE..NCP92

 4
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010

2NZFE..NCP92

 4
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-21051

2NZFE..NCP92

 1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-21051

2NZFE..NCP92

 1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
23891-21010

2NZFE..NCP92

 2
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-21050

2NZFE..NCP92

 1
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23841-21040

2NZFE..NCP92

 1
23842-21010

2NZFE..NCP92

 1
23901 - TUBE SUB-ASSY, FUEL
23901-21110

2NZFE..NCP92

 1
Common parts
90126-06031
91551-80650
91551-80840
91671-80614
94151-80600
Linked diagrams
1603
7701
