NCP92L-BEPHKC (2008)
Toyota Vios (China)
Production
Feb 2008
-
Aug 2010
Engine
2NZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0802-1201)2NZFE

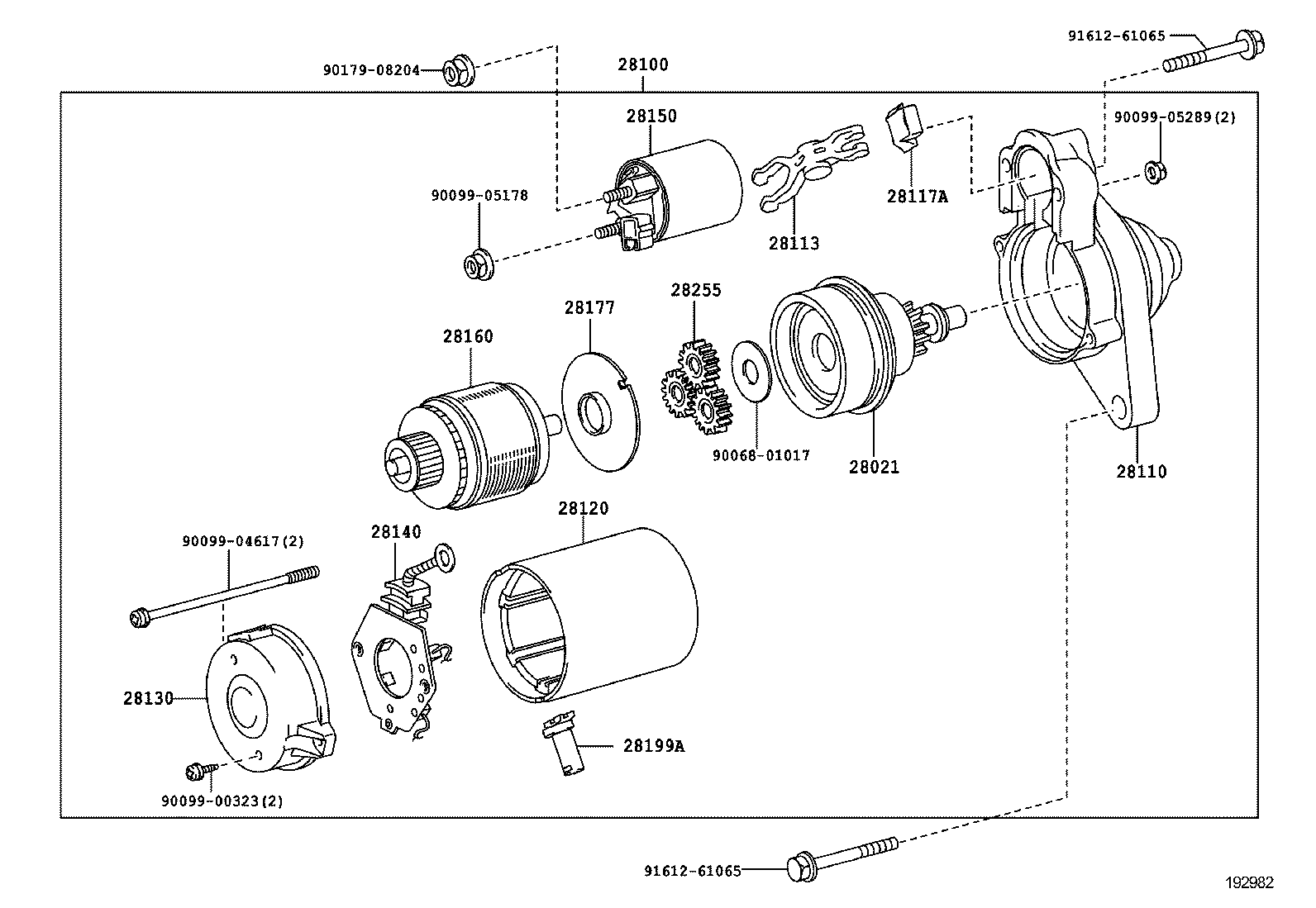

Click highlighted areas on diagram
12V 1.6KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING | ||||
| 28021-37050 |
2NZFE,1ZRFE..NCP92,ZSP92 |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-0M070 |
2NZFE..NCP92 12V 1.6KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-0M070 |
2NZFE..NCP92 |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-0T020 |
2NZFE,1ZRFE..NCP92,ZSP92 |
1 | ||
| 28117A - SEAL, RUBBER | ||||
| 28117-0T020 |
2NZFE,1ZRFE..NCP92,ZSP92 |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-0M070 |
2NZFE..NCP92 |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-0M070 |
2NZFE..NCP92 |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-0T020 |
2NZFE,1ZRFE..NCP92,ZSP92 |
1 | ||
| 28140-37050 |
2NZFE,1ZRFE..NCP92,ZSP92 |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-0M070 |
2NZFE..NCP92 |
1 | ||
| 28150-37020 |
2NZFE..NCP92 |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-0T020 |
2NZFE,1ZRFE..NCP92,ZSP92 |
1 | ||
| 28160-37050 |
2NZFE,1ZRFE..NCP92,ZSP92 |
1 | ||
| 28177 - PLATE(FOR STARTER ARMATURE) | ||||
| 28177-0T020 |
2NZFE,1ZRFE..NCP92,ZSP92 |
1 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-0M070 |
2NZFE..NCP92 |
1 | ||
| 28255 - GEAR, PLANET | ||||
| 28255-37050 |
2NZFE,1ZRFE..NCP92,ZSP92 |
3 | ||
| Common parts | ||||
| 90068-01017 | ||||
| 90099-00323 | ||||
| 90099-04617 | ||||
| 90099-05178 | ||||
| 90099-05289 | ||||
| 90179-08204 | ||||
| 91612-61065 | ||||
