NCP92L-BEPHKC (2008)
Toyota Vios (China)
Production
Feb 2008
-
Aug 2010
Engine
2NZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0802- )2NZFE

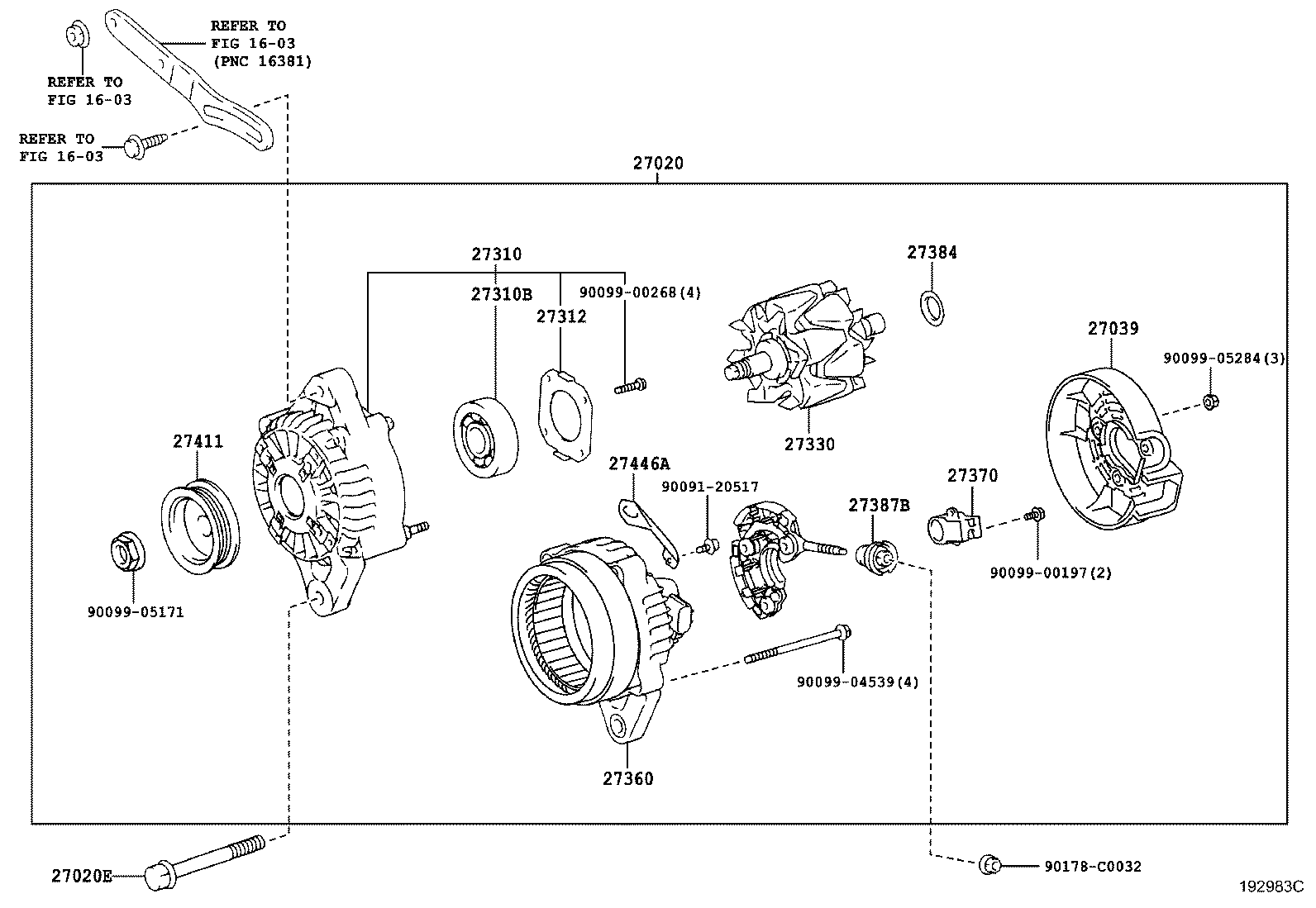

Click highlighted areas on diagram
12V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-0M070 |
2NZFE..NCP92 12V 80A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10075 |
2NZFE..NCP92 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-0H110 |
2NZFE..NCP92 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-0M070 |
2NZFE..NCP92 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90068-10029 |
2NZFE..NCP92 |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
2NZFE,1ZRFE..NCP92,ZSP92 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-0H110 |
2NZFE..NCP92 |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-0M070 |
2NZFE..NCP92 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-0T030 |
2NZFE,1ZRFE..NCP92,ZSP92 |
1 | ||
| 27384 - WASHER | ||||
| 27384-16380 |
2NZFE..NCP92 |
1 | ||
| 27387B - INSULATOR, ALTERNATOR TERMINAL | ||||
| 27387-0H110 |
2NZFE..NCP92 |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-0M070 |
2NZFE..NCP92 |
1 | ||
| 27446A - CLAMP | ||||
| 27446-21020 |
2NZFE..NCP92 |
1 | ||
| Common parts | ||||
| 90091-20517 | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-04539 | ||||
| 90099-05171 | ||||
| 90099-05284 | ||||
| 90178-C0032 | ||||
| Linked diagrams | ||||
| 1603 | ||||
