NCP92L-BEPHKC (2008)

Toyota Vios (China)

Production Feb 2008 - Aug 2010
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0802- )2NZFE

Click highlighted areas on diagram

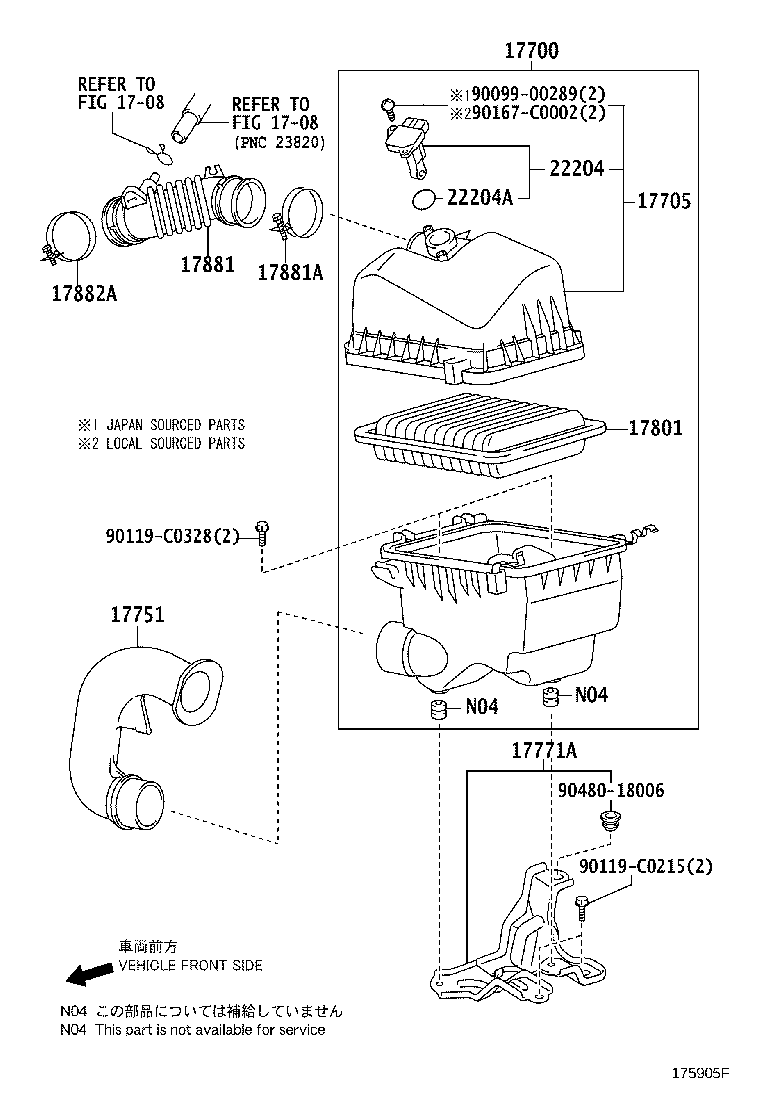

diagram 1708 1708 17700 17705 17751 17771A 17801 17881 17881A 17882A 22204 22204A 9009900289 90119C0215 90119C0328 90167C0002 9048018006
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-0M050

2NZFE..NCP92

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-0M050

2NZFE..NCP92

 1
17751 - INLET, AIR CLEANER, NO.1
17751-0T020

2NZFE..NCP92

 1
17771A - BRACKET, AIR CLEANER
17771-21050

2NZFE..NCP92

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-0T020

2NZFE..NCP92

 1
17881 - HOSE, AIR CLEANER, NO.1
17880-0M060

2NZFE..NCP92

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10690

2NZFE..NCP92

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10690

2NZFE..NCP92

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-22010

2NZFE..NCP92

 1
22204A - RING, O(FOR INTAKE AIR FLOW METER)
90099-14141

2NZFE..NCP92

 1
Common parts
90099-00289
90119-C0215
90119-C0328
90167-C0002
90480-18006
Linked diagrams
1708
