NCP92L-BEPHKC (2008)

Toyota Vios (China)

Production Feb 2008 - Aug 2010
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0802- )

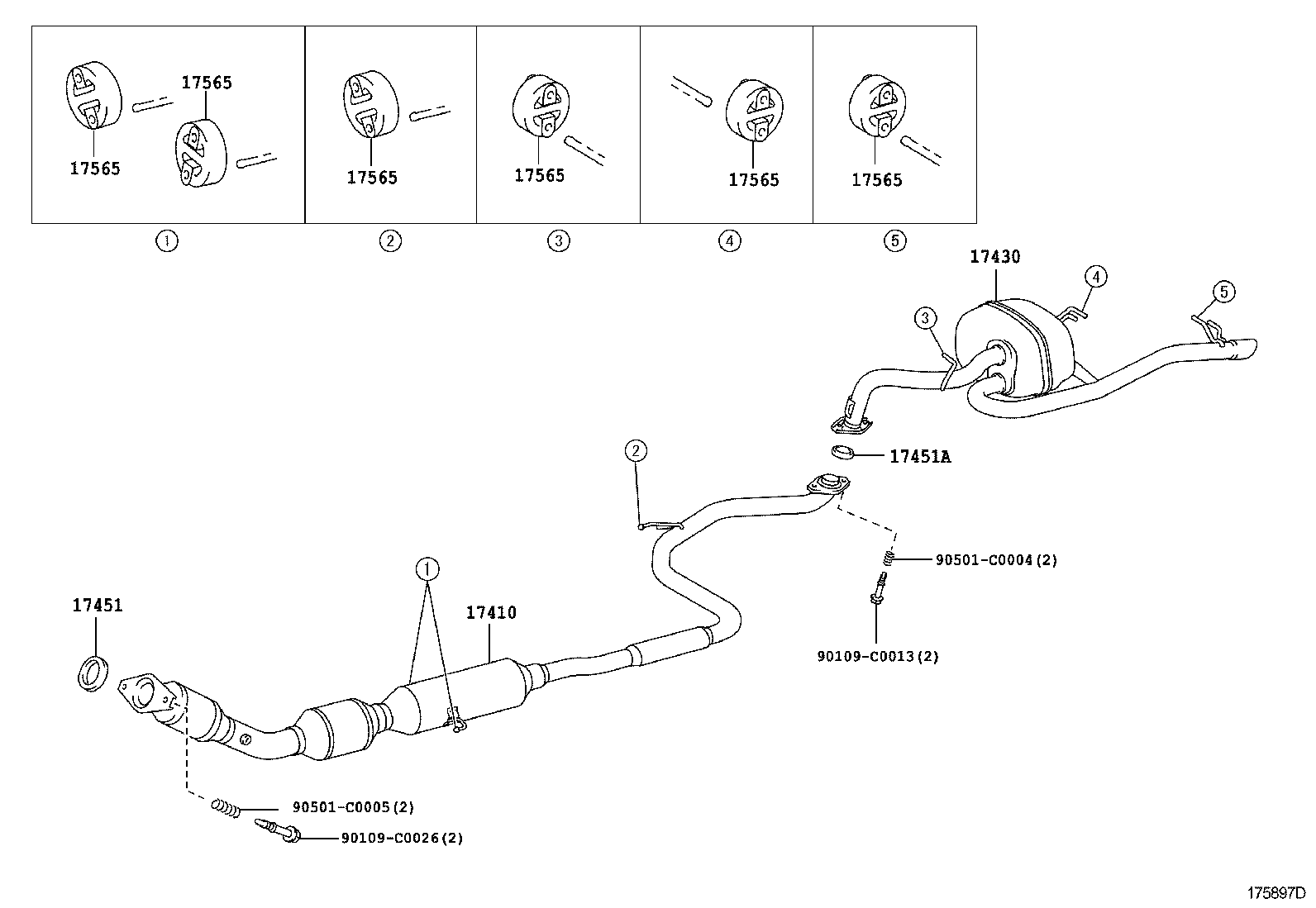

Click highlighted areas on diagram

diagram 17410 17430 17451 17451A 17565 17565 17565 17565 17565 17565 90109C0013 90109C0026 90501C0004 90501C0005
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-0M081

2NZFE..NCP92

 1
17410-0M082

2NZFE..NCP92

 1
17410-0M080

2NZFE..NCP92

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-0T042

2NZFE,1ZRFE..NCP92,ZSP92

 1
17430-0T040

2NZFE,1ZRFE..NCP92,ZSP92

 1
17430-0T041

2NZFE,1ZRFE..NCP92,ZSP92

 1
17451 - GASKET, EXHAUST PIPE
17451-0J050

2NZFE..NCP92

 1
17451A - GASKET, EXHAUST PIPE, NO.2
17451-0T030

2NZFE,1ZRFE..NCP92,ZSP92

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-0T020

2NZFE,1ZRFE..NCP92,ZSP92

 6
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-0T020

2NZFE,1ZRFE..NCP92,ZSP92

 6
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-0T020

2NZFE,1ZRFE..NCP92,ZSP92

 6
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-0T020

2NZFE,1ZRFE..NCP92,ZSP92

 6
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-0T020

2NZFE,1ZRFE..NCP92,ZSP92

 6
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-0T020

2NZFE,1ZRFE..NCP92,ZSP92

 6
Common parts
90109-C0013
90109-C0026
90501-C0004
90501-C0005
