NCP92L-BEPHKC (2008)
Toyota Vios (China)
Production
Feb 2008
-
Aug 2010
Engine
2NZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0802- )2NZFE

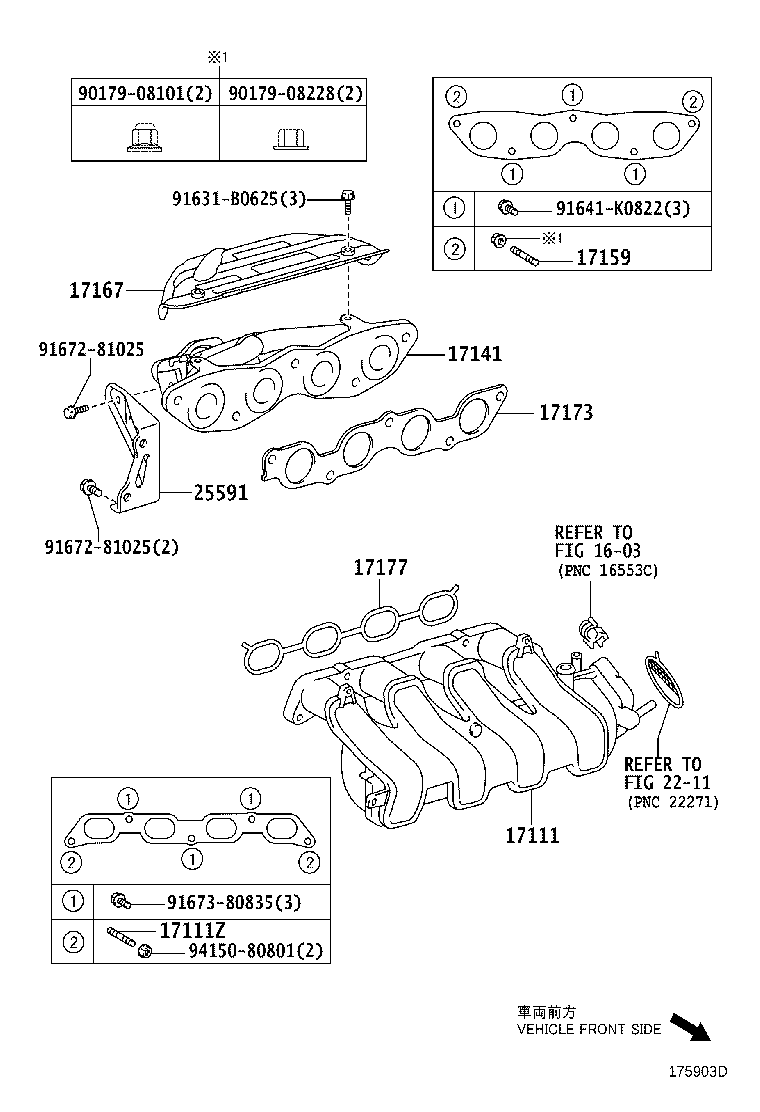

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-21090 |
2NZFE..NCP92 |
1 | ||
| 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-08026 |
2NZFE..NCP92 |
2 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-21140 |
2NZFE..NCP92 |
1 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-08037 |
2NZFE..NCP92 |
2 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-21130 |
2NZFE..NCP92 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-21020 |
2NZFE..NCP92 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-21020 |
2NZFE..NCP92 |
1 | ||
| 25591 - BRACKET, MANIFOLD SUPPORT | ||||
| 25591-21060 |
2NZFE..NCP92 |
1 | ||
| Common parts | ||||
| 90179-08101 | ||||
| 90179-08228 | ||||
| 91631-B0625 | ||||
| 91641-K0822 | ||||
| 91672-81025 | ||||
| 91673-80835 | ||||
| 94150-80801 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 2211 | ||||
