NCP92L-BEPHKC (2008)

Toyota Vios (China)

Production Feb 2008 - Aug 2010
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

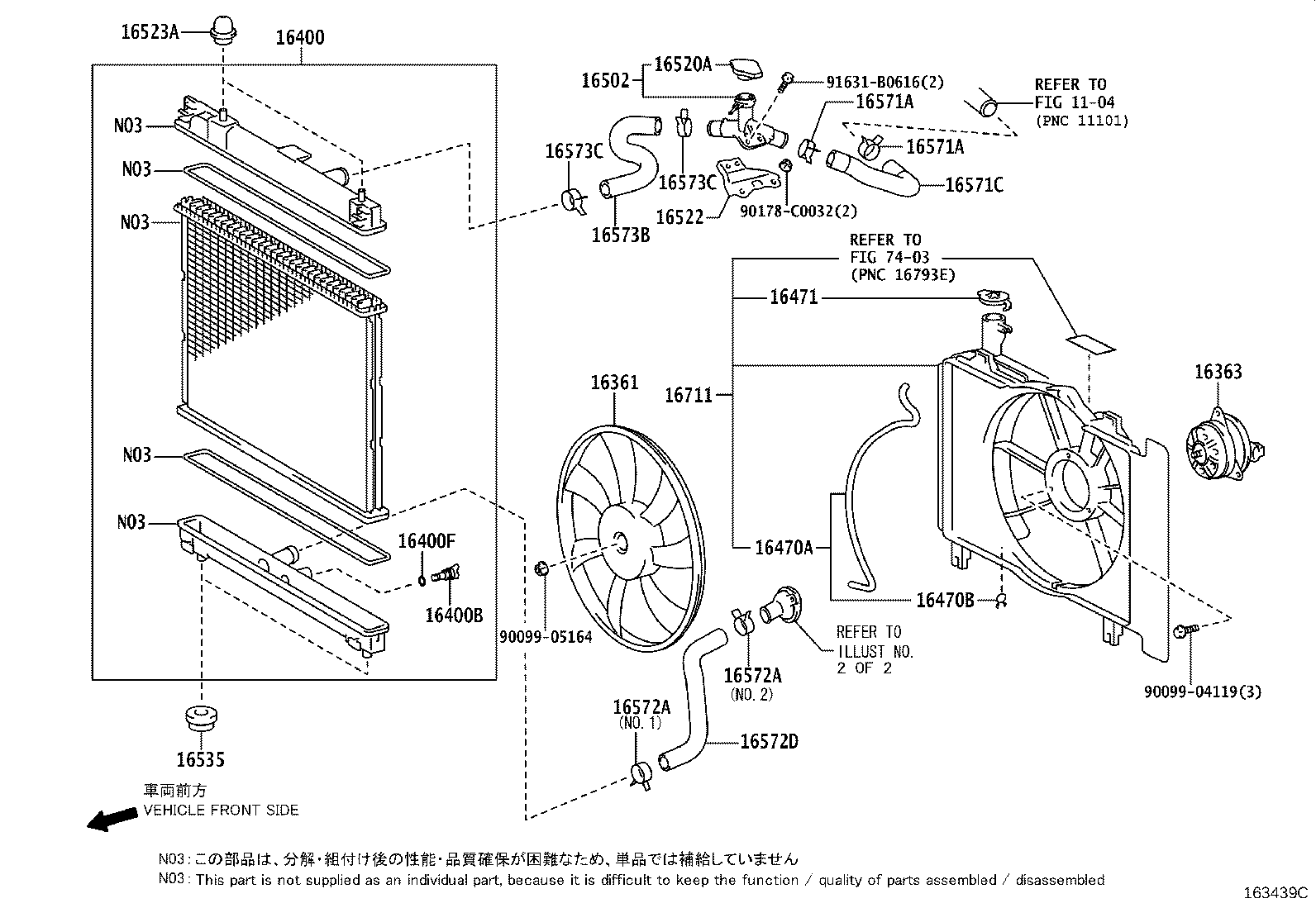

ILLUST NO. 1 OF 2(0802- )2NZFE

Click highlighted areas on diagram

diagram 1104 16361 16363 16400 16400B 16400F 16470A 16470B 16471 16502 16520A 16522 16523A 16535 16571A 16571A 16571C 16572A 16572A 16572D 16573B 16573C 16573C 16711 7403 9009904119 9009905164 90178C0032 91631B0616
Part # Description Qty Price
16361 - FAN
16361-0T030

2NZFE..NCP92

 1
16363 - MOTOR, COOLING FAN
16363-0T040

2NZFE..NCP92

 1
16400 - RADIATOR ASSY
16400-0M110

2NZFE..NCP92..4FC

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-0H290

2NZFE..NCP92

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16492-21050

2NZFE..NCP92

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16377-0M070

2NZFE..NCP92

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

2NZFE..NCP92

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16471-0T010

2NZFE..NCP92

 1
16502 - FILLER SUB-ASSY, WATER
16502-0M010

2NZFE..NCP92

 1
16520A - CAP SUB-ASSY, WATER FILLER
16401-31480

2NZFE..NCP92

 1
16522 - BRACKET, WATER FILLER
16522-0M010

2NZFE..NCP92

(L)

 1
16522-21010

2NZFE..NCP92

(J)

 1
16523A - CUSHION, RADIATOR SUPPORT
16523-0M060

2NZFE..NCP92

 2
16535 - SUPPORT, RADIATOR, LOWER
90480-22025

2NZFE..NCP92

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-33006

2NZFE..NCP92

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-33006

2NZFE..NCP92

 2
16571C - HOSE, RADIATOR, NO.1
16571-0M070

2NZFE..NCP92

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-33006

2NZFE..NCP92

NO.2

 1
90467-34004

2NZFE..NCP92

NO.1

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-33006

2NZFE..NCP92

NO.2

 1
90467-34004

2NZFE..NCP92

NO.1

 1
16572D - HOSE, RADIATOR, NO.2
16572-0M070

2NZFE..NCP92

 1
16573B - HOSE, RADIATOR, NO.3
16573-0M050

2NZFE..NCP92

 1
16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3
90467-33006

2NZFE..NCP92

 2
16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3
90467-33006

2NZFE..NCP92

 2
16711 - SHROUD, FAN
16711-0M060

2NZFE..NCP92

 1
Common parts
90099-04119
90099-05164
90178-C0032
91631-B0616
Linked diagrams
1104
7403

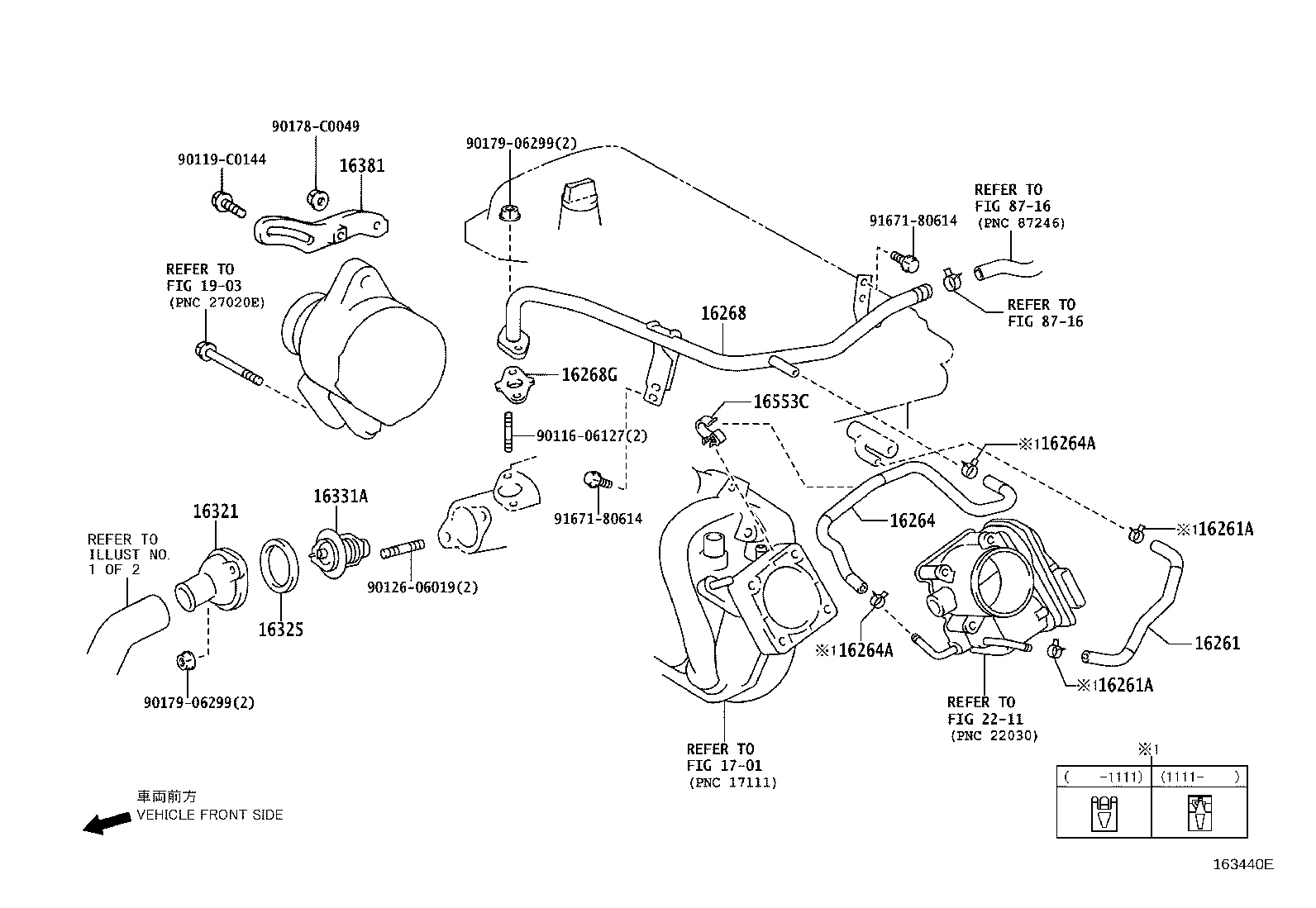

ILLUST NO. 2 OF 2(0802- )2NZFE

Click highlighted areas on diagram

diagram 16261 16261A 16261A 16264 16264A 16264A 16268 16268G 16321 16325 16331A 16381 16553C 1701 1903 2211 8716 8716 9011606127 90119C0144 9012606019 90178C0049 9017906299 9017906299 9167180614 9167180614
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-21090

2NZFE..NCP92

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-13054

2NZFE..NCP92

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-13054

2NZFE..NCP92

 2
16264 - HOSE, WATER BY-PASS, NO.2
16264-21070

2NZFE..NCP92

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-13054

2NZFE..NCP92

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-13054

2NZFE..NCP92

 2
16268 - PIPE, WATER BY-PASS, NO.1
16268-21022

2NZFE..NCP92

 1
16268G - GASKET(FOR WATER BY-PASS PIPE)
16258-21020

2NZFE..NCP92

 1
16258-21021

2NZFE..NCP92

 1
16321 - INLET, WATER
16321-21020

2NZFE..NCP92

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-62010

2NZFE..NCP92

 1
16331A - THERMOSTAT
90916-03093

2NZFE..NCP92

*WAX 82-95

 1
16381 - BAR, FAN BELT ADJUSTING
16381-21020

2NZFE..NCP92

 1
16553C - CLAMP, HOSE
16581-21010

2NZFE..NCP92

 1
Common parts
90116-06127
90119-C0144
90126-06019
90178-C0049
90179-06299
91671-80614
Linked diagrams
1701
1903
2211
8716
