NCP92L-BEPHKC (2008)

Toyota Vios (China)

Production Feb 2008 - Aug 2010
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0802- )2NZFE

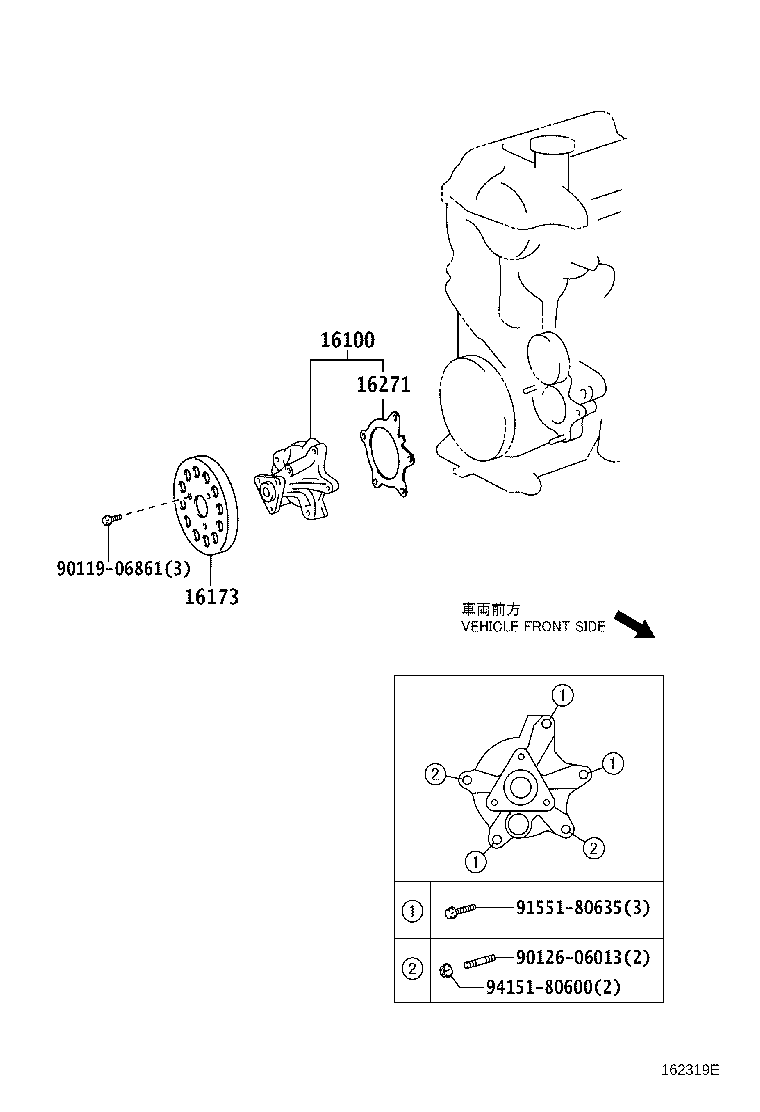

Click highlighted areas on diagram

diagram 16100 16173 16271 9011906861 9012606013 9155180635 9415180600
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-29156

2NZFE..NCP92

 1
16173 - PULLEY, WATER PUMP
16173-21020

2NZFE..NCP92

 1
16271 - GASKET, WATER PUMP
16271-21020

2NZFE..NCP92

 1
Common parts
90119-06861
90126-06013
91551-80635
94151-80600
