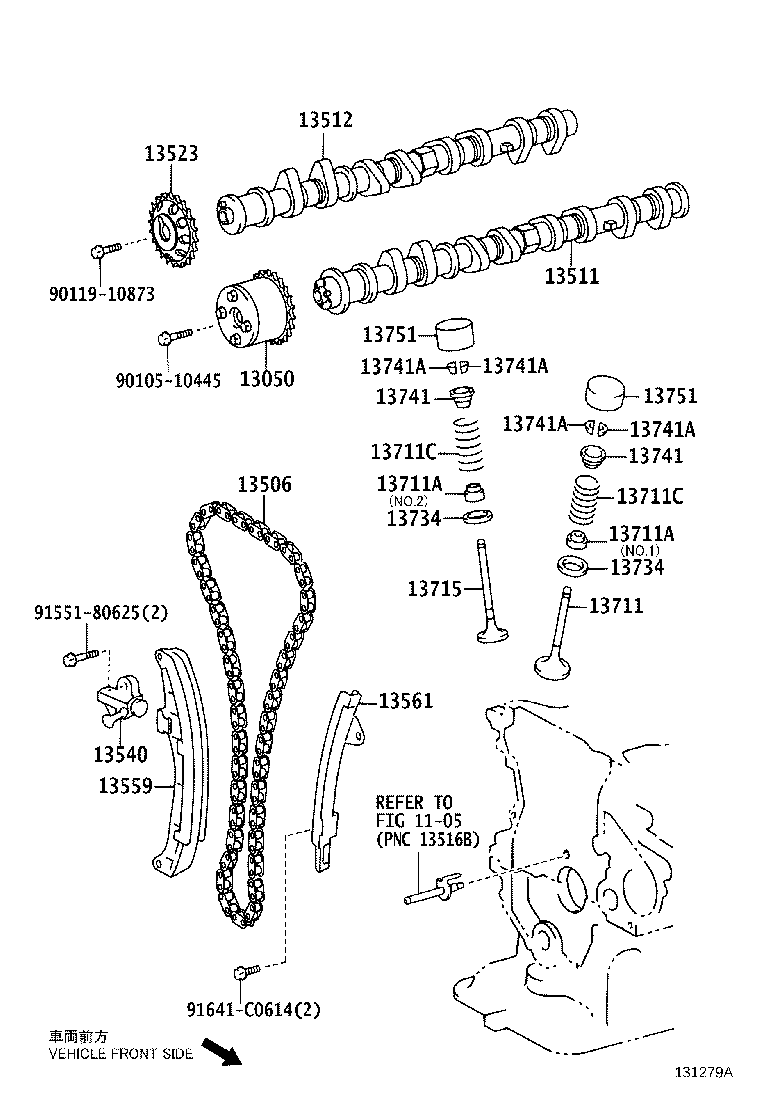

NCP92L-BEPHKC (2008)
Toyota Vios (China)
(0802- )2NZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13050 - GEAR ASSY, CAMSHAFT TIMING | ||||
| 13050-21041 |
2NZFE..NCP92 |
1 | ||
| 13506 - CHAIN SUB-ASSY | ||||
| 13506-21030 |
2NZFE..NCP92 |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-21030 |
2NZFE..NCP92 |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-21021 |
2NZFE..NCP92 |
1 | ||
| 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING | ||||
| 13523-22020 |
2NZFE..NCP92 |
1 | ||
| 13540 - TENSIONER ASSY, CHAIN, NO.1 | ||||
| 13540-21020 |
2NZFE..NCP92 |
1 | ||
| 13559 - SLIPPER, CHAIN TENSIONER | ||||
| 13559-21010 |
2NZFE..NCP92 |
1 | ||
| 13561 - DAMPER, CHAIN VIBRATION, NO.1 | ||||
| 13561-21010 |
2NZFE..NCP92 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-21010 |
2NZFE..NCP92 |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02093 |
2NZFE..NCP92 NO.1 |
8 | ||
| 90913-02092 |
2NZFE..NCP92 NO.2 |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02093 |
2NZFE..NCP92 NO.1 |
8 | ||
| 90913-02092 |
2NZFE..NCP92 NO.2 |
8 | ||
| 13711C - SPRING, COMPRESSION(FOR OUTER) | ||||
| 90905-01049 |
2NZFE..NCP92 |
16 | ||
| 13711C - SPRING, COMPRESSION(FOR OUTER) | ||||
| 90905-01049 |
2NZFE..NCP92 |
16 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-21010 |
2NZFE..NCP92 |
8 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-74010 |
2NZFE..NCP92 |
16 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-74010 |
2NZFE..NCP92 |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-22021 |
2NZFE..NCP92 |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-22021 |
2NZFE..NCP92 |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03031 |
2NZFE..NCP92 |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03031 |
2NZFE..NCP92 |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03031 |
2NZFE..NCP92 |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03031 |
2NZFE..NCP92 |
32 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-22060 |
2NZFE..NCP92 T=5.10 |
16 | ||
| 13751-22040 |
2NZFE..NCP92 T=5.06 |
16 | ||
| 13751-22110 |
2NZFE..NCP92 T=5.20 |
16 | ||
| 13751-22120 |
2NZFE..NCP92 T=5.22 |
16 | ||
| 13751-22160 |
2NZFE..NCP92 T=5.30 |
16 | ||
| 13751-22050 |
2NZFE..NCP92 T=5.08 |
16 | ||
| 13751-22090 |
2NZFE..NCP92 T=5.16 |
16 | ||
| 13751-22100 |
2NZFE..NCP92 T=5.18 |
16 | ||
| 13751-22200 |
2NZFE..NCP92 T=5.38 |
16 | ||
| 13751-22150 |
2NZFE..NCP92 T=5.28 |
16 | ||
| 13751-22230 |
2NZFE..NCP92 T=5.44 |
16 | ||
| 13751-22190 |
2NZFE..NCP92 T=5.36 |
16 | ||
| 13751-22140 |
2NZFE..NCP92 T=5.26 |
16 | ||
| 13751-22170 |
2NZFE..NCP92 T=5.32 |
16 | ||
| 13751-22220 |
2NZFE..NCP92 T=5.42 |
16 | ||
| 13751-22210 |
2NZFE..NCP92 T=5.40 |
16 | ||
| 13751-22280 |
2NZFE..NCP92 T=5.54 |
16 | ||
| 13751-22130 |
2NZFE..NCP92 T=5.24 |
16 | ||
| 13751-22270 |
2NZFE..NCP92 T=5.52 |
16 | ||
| 13751-22080 |
2NZFE..NCP92 T=5.14 |
16 | ||
| 13751-22180 |
2NZFE..NCP92 T=5.34 |
16 | ||
| 13751-22260 |
2NZFE..NCP92 T=5.50 |
16 | ||
| 13751-22310 |
2NZFE..NCP92 T=5.60 |
16 | ||
| 13751-22370 |
2NZFE..NCP92 T=5.72 |
16 | ||
| 13751-22240 |
2NZFE..NCP92 T=5.46 |
16 | ||
| 13751-22290 |
2NZFE..NCP92 T=5.56 |
16 | ||
| 13751-22350 |
2NZFE..NCP92 T=5.68 |
16 | ||
| 13751-22250 |
2NZFE..NCP92 T=5.48 |
16 | ||
| 13751-22340 |
2NZFE..NCP92 T=5.66 |
16 | ||
| 13751-22380 |
2NZFE..NCP92 T=5.74 |
16 | ||
| 13751-22320 |
2NZFE..NCP92 T=5.62 |
16 | ||
| 13751-22360 |
2NZFE..NCP92 T=5.70 |
16 | ||
| 13751-22070 |
2NZFE..NCP92 T=5.12 |
16 | ||
| 13751-22330 |
2NZFE..NCP92 T=5.64 |
16 | ||
| 13751-22300 |
2NZFE..NCP92 T=5.58 |
16 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-22060 |
2NZFE..NCP92 T=5.10 |
16 | ||
| 13751-22040 |
2NZFE..NCP92 T=5.06 |
16 | ||
| 13751-22110 |
2NZFE..NCP92 T=5.20 |
16 | ||
| 13751-22120 |
2NZFE..NCP92 T=5.22 |
16 | ||
| 13751-22160 |
2NZFE..NCP92 T=5.30 |
16 | ||
| 13751-22050 |
2NZFE..NCP92 T=5.08 |
16 | ||
| 13751-22090 |
2NZFE..NCP92 T=5.16 |
16 | ||
| 13751-22100 |
2NZFE..NCP92 T=5.18 |
16 | ||
| 13751-22200 |
2NZFE..NCP92 T=5.38 |
16 | ||
| 13751-22150 |
2NZFE..NCP92 T=5.28 |
16 | ||
| 13751-22230 |
2NZFE..NCP92 T=5.44 |
16 | ||
| 13751-22190 |
2NZFE..NCP92 T=5.36 |
16 | ||
| 13751-22140 |
2NZFE..NCP92 T=5.26 |
16 | ||
| 13751-22170 |
2NZFE..NCP92 T=5.32 |
16 | ||
| 13751-22220 |
2NZFE..NCP92 T=5.42 |
16 | ||
| 13751-22210 |
2NZFE..NCP92 T=5.40 |
16 | ||
| 13751-22280 |
2NZFE..NCP92 T=5.54 |
16 | ||
| 13751-22130 |
2NZFE..NCP92 T=5.24 |
16 | ||
| 13751-22270 |
2NZFE..NCP92 T=5.52 |
16 | ||
| 13751-22080 |
2NZFE..NCP92 T=5.14 |
16 | ||
| 13751-22180 |
2NZFE..NCP92 T=5.34 |
16 | ||
| 13751-22260 |
2NZFE..NCP92 T=5.50 |
16 | ||
| 13751-22310 |
2NZFE..NCP92 T=5.60 |
16 | ||
| 13751-22370 |
2NZFE..NCP92 T=5.72 |
16 | ||
| 13751-22240 |
2NZFE..NCP92 T=5.46 |
16 | ||
| 13751-22290 |
2NZFE..NCP92 T=5.56 |
16 | ||
| 13751-22350 |
2NZFE..NCP92 T=5.68 |
16 | ||
| 13751-22250 |
2NZFE..NCP92 T=5.48 |
16 | ||
| 13751-22340 |
2NZFE..NCP92 T=5.66 |
16 | ||
| 13751-22380 |
2NZFE..NCP92 T=5.74 |
16 | ||
| 13751-22320 |
2NZFE..NCP92 T=5.62 |
16 | ||
| 13751-22360 |
2NZFE..NCP92 T=5.70 |
16 | ||
| 13751-22070 |
2NZFE..NCP92 T=5.12 |
16 | ||
| 13751-22330 |
2NZFE..NCP92 T=5.64 |
16 | ||
| 13751-22300 |
2NZFE..NCP92 T=5.58 |
16 | ||
| Common parts | ||||
| 90105-10445 | ||||
| 90119-10873 | ||||
| 91551-80625 | ||||
| 91641-C0614 | ||||
| Linked diagrams | ||||
| 1105 | ||||
