NCP92L-BEPHKC (2008)

Toyota Vios (China)

Production Feb 2008 - Aug 2010
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0802- )2NZFE

Click highlighted areas on diagram

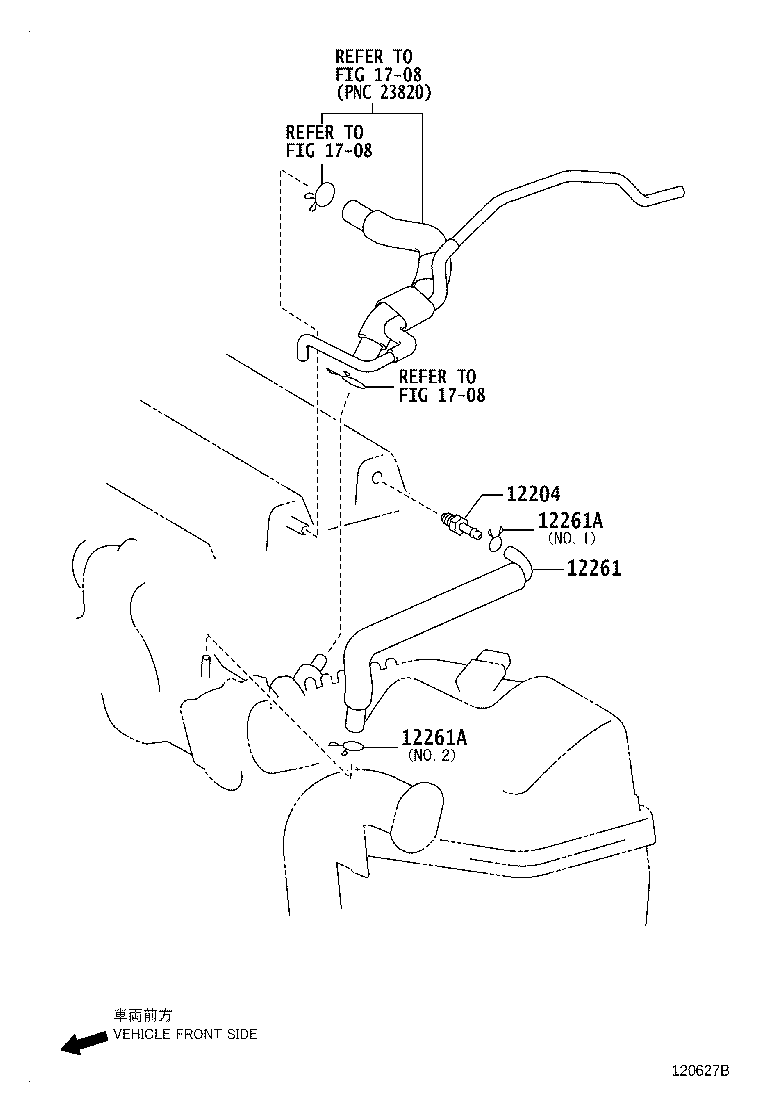

diagram 12204 12261 12261A 12261A 1708 1708 1708
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-21012

2NZFE..NCP92

 1
12261 - HOSE, VENTILATION
12261-21030

2NZFE..NCP92

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90466-23003

2NZFE..NCP92

NO.2

 1
90467-24038

2NZFE..NCP92

NO.2

 1
90467-15120

2NZFE..NCP92

NO.1

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90466-23003

2NZFE..NCP92

NO.2

 1
90467-24038

2NZFE..NCP92

NO.2

 1
90467-15120

2NZFE..NCP92

NO.1

 1
Linked diagrams
1708
