NCP92L-BEPHKC (2008)

Toyota Vios (China)

Production Feb 2008 - Aug 2010
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0802- )2NZFE..4FC

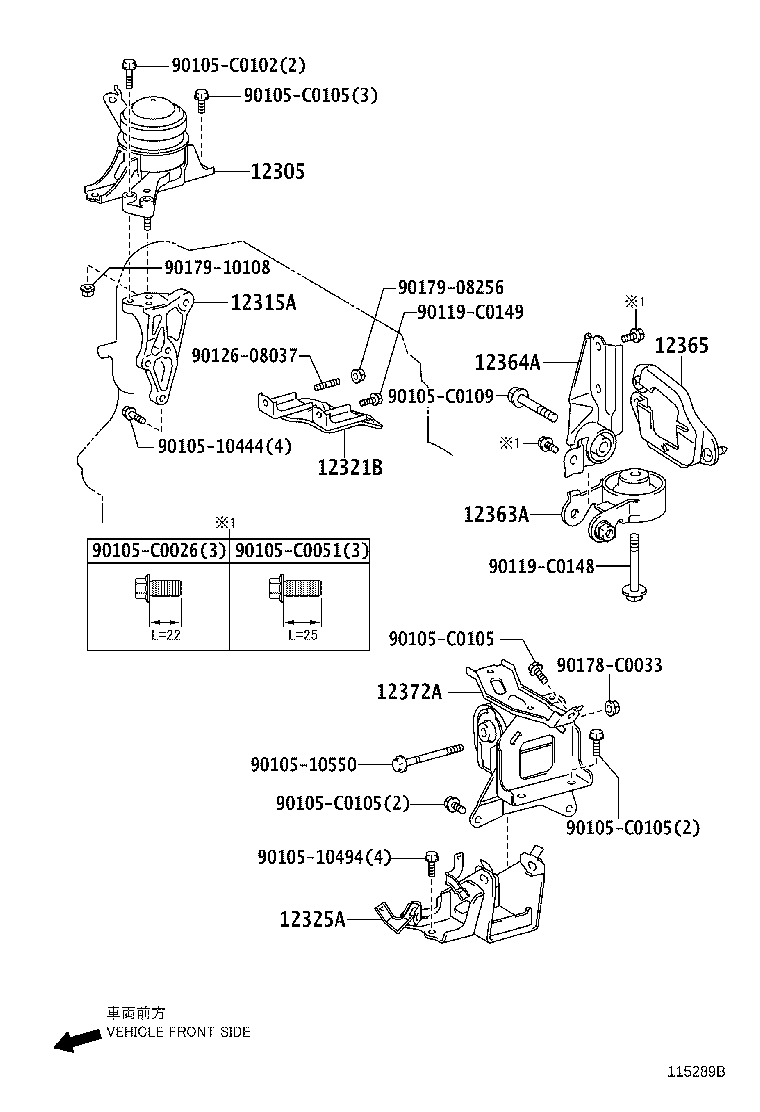

Click highlighted areas on diagram

diagram 12305 12315A 12321B 12325A 12363A 12364A 12365 12372A 9010510444 9010510494 9010510550 90105C0026 90105C0051 90105C0102 90105C0105 90105C0105 90105C0105 90105C0105 90105C0109 90119C0148 90119C0149 9012608037 90178C0033 9017908256 9017910108
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-0M070

2NZFE..NCP92..4FC

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-21032

2NZFE..NCP92

 1
12315-21031

2NZFE..NCP92

 1
12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT
43409-52020

2NZFE..NCP92

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-0M100

2NZFE..NCP92..4FC

 1
12363A - ROD, ENGINE MOVING CONTROL
12363-0M050

2NZFE..NCP92..4FC

 1
12364A - ROD, ENGINE LATERAL CONTROL
12364-0M030

2NZFE..NCP92..4FC

 1
12365 - COVER, ENGINE MOVING CONTROL ROD
12365-40010

2NZFE..NCP92

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-0M090

2NZFE..NCP92..4FC

 1
Common parts
90105-10444
90105-10494
90105-10550
90105-C0026
90105-C0051
90105-C0102
90105-C0105
90105-C0109
90119-C0148
90119-C0149
90126-08037
90178-C0033
90179-08256
90179-10108
