NCP92L-BEMHKC (2008)

Toyota Vios (China)

Production Feb 2008 - Aug 2010
Engine 2NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0802- )

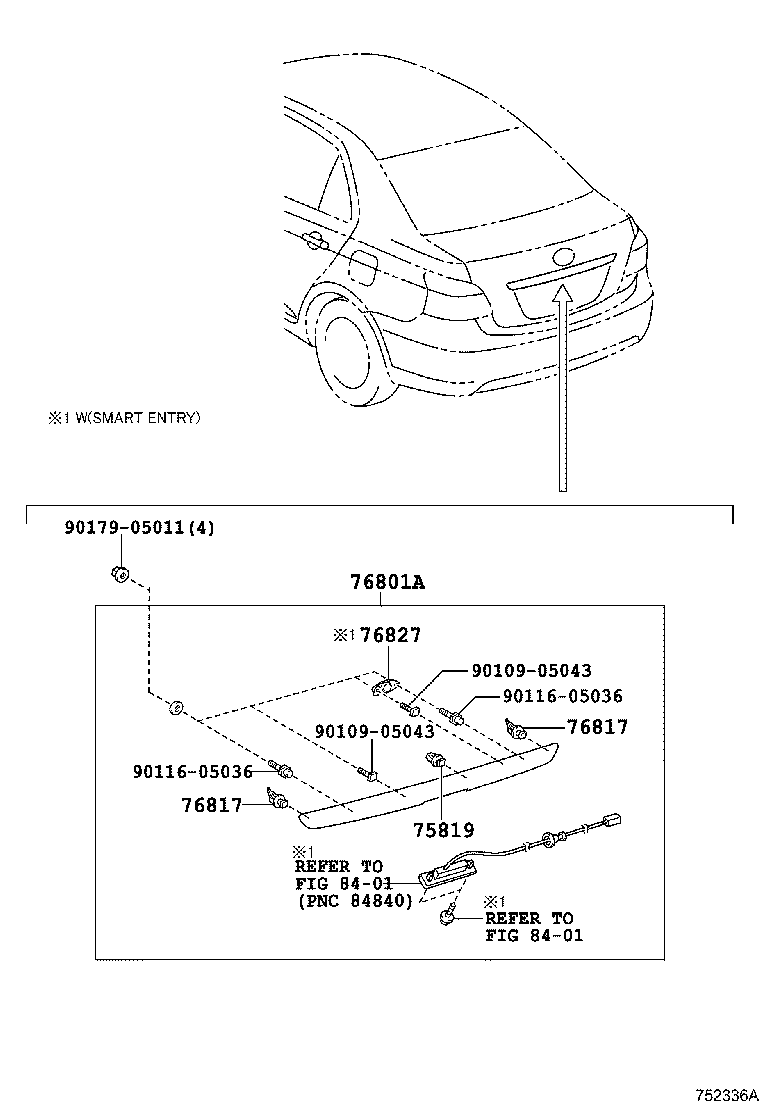

Click highlighted areas on diagram

diagram 75819 76801A 76817 76817 76827 8401 8401 9010905043 9010905043 9011605036 9011605036 9017905011
Part # Description Qty Price
75819 - CLIP, LUGGAGE COMPARTMENT DOOR MOULDING
90467-C0002C0

NCP92,ZSP92

BLACK

 1
76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
76801-0D100

NCP92,ZSP92

PLATED

 1
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-0D010

NCP92,ZSP92

 2
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-0D010

NCP92,ZSP92

 2
Common parts
90109-05043
90116-05036
90179-05011
Linked diagrams
8401
