NCP92L-BEMHKC (2010)

Toyota Vios (China)

Production Aug 2010 - Jul 2013
Engine 2NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 8(1008- )

Click highlighted areas on diagram

INSTRUMENT PANEL

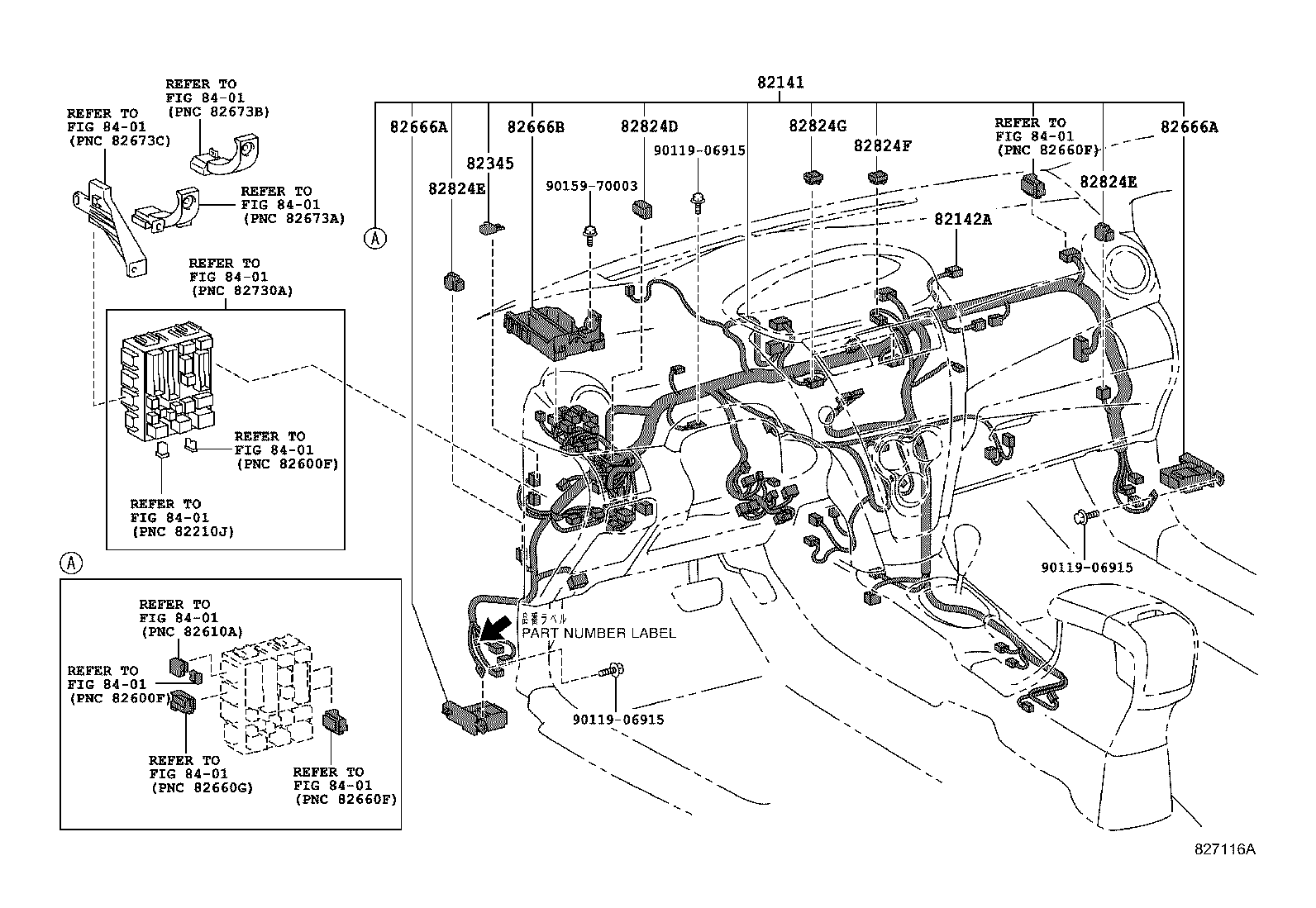

diagram 82141 82142A 82345 82666A 82666A 82666B 82824D 82824E 82824E 82824F 82824G 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 9011906915 9011906915 9011906915 9015970003
Part # Description Qty Price
82141 - WIRE, INSTRUMENT PANEL
82141-0U890

NCP92,ZSP92..GLI,GLS

 1
82145-0D010

NCP92..5F

 1
82141-0UR20

NCP92..5F

TIRE & DISC WHEEL-185/60R15 5.5J ALUMINUM

 1
82145-0UJ70

NCP92

TIRE & DISC WHEEL-185/60R15 5.5J ALUMINUM

 1
82141-0UR20

NCP92..5F

PART NUMBER LABEL=82141-0UQ90 OR 82141-0UR20

 1
82141-0U890

NCP92,ZSP92..GLI,GLS

PART NUMBER LABEL=82141-0DR50 OR 82141-0U890

 1
82145-0UJ70

NCP92

TIRE & DISC WHEEL-185/60R15 5.5J ALUMINUM

 1
82145-0D010

NCP92..5F

PART NUMBER LABEL=82141-0UZ90 OR 82145-0D010

 1
82142A - WIRE, INSTRUMENT PANEL, NO.2
82140-0D020

NCP92,ZSP92

 1
82140-0D020

NCP92,ZSP92..GLI,GLXI

 1
82345 - DIODE
82345-32010

NCP92,ZSP92

 1
82345-32010

NCP92,ZSP92..GLI

 1
82666A - HOLDER, CONNECTOR NO.2
82666-52080

NCP92,ZSP92..GLI,GLXI

 2
82666-52080

NCP92,ZSP92

 2
82666A - HOLDER, CONNECTOR NO.2
82666-52080

NCP92,ZSP92..GLI,GLXI

 2
82666-52080

NCP92,ZSP92

 2
82666B - HOLDER, CONNECTOR NO.3
82666-52090

NCP92,ZSP92..GLI,GLXI

 1
82666-52090

NCP92,ZSP92

 1
82824D - CONNECTOR, WIRING HARNESS
82824-22070

NCP92,ZSP92..GLI,GLXI

 1
82824E - CONNECTOR, WIRING HARNESS
82824-50340

NCP92,ZSP92..GLI,GLXI

 2
82824E - CONNECTOR, WIRING HARNESS
82824-50340

NCP92,ZSP92..GLI,GLXI

 2
82824F - CONNECTOR, WIRING HARNESS
82824-52280

NCP92,ZSP92..GLI,GLXI

 1
82824G - CONNECTOR, WIRING HARNESS
82824-52290

NCP92,ZSP92..GLI,GLXI

 2
Common parts
90119-06915
90159-70003
Linked diagrams
8401
