NCP92L-BEMHKC (2010)

Toyota Vios (China)

Production Aug 2010 - Jul 2013
Engine 2NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1008- )

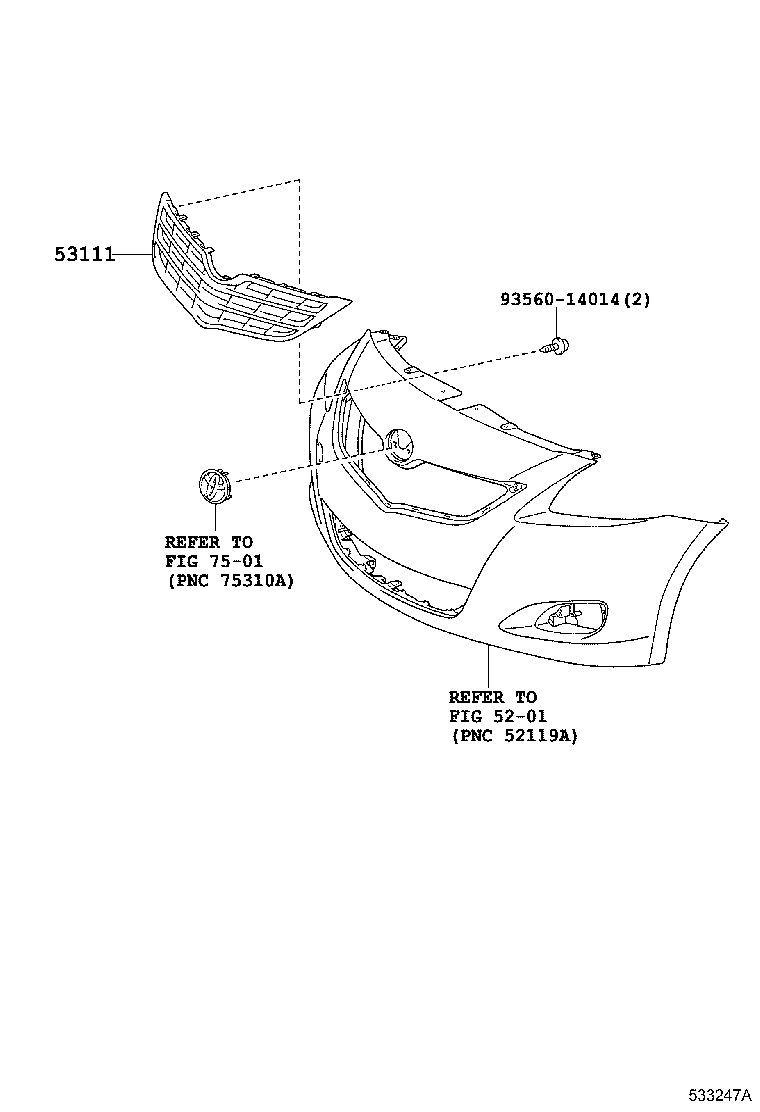

Click highlighted areas on diagram

diagram 5201 53111 7501 9356014014
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-0D901

NCP92,ZSP92

PAINT REQ.

 1
53111-0D340

NCP92,ZSP92

PLATED

 1
Common parts
93560-14014
Linked diagrams
5201
7501
