NSP151R-BHXRKE (2020)
Toyota Vios/Yaris
Production
Dec 2020
-
Sep 9999
Engine
2NRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2012- )HB

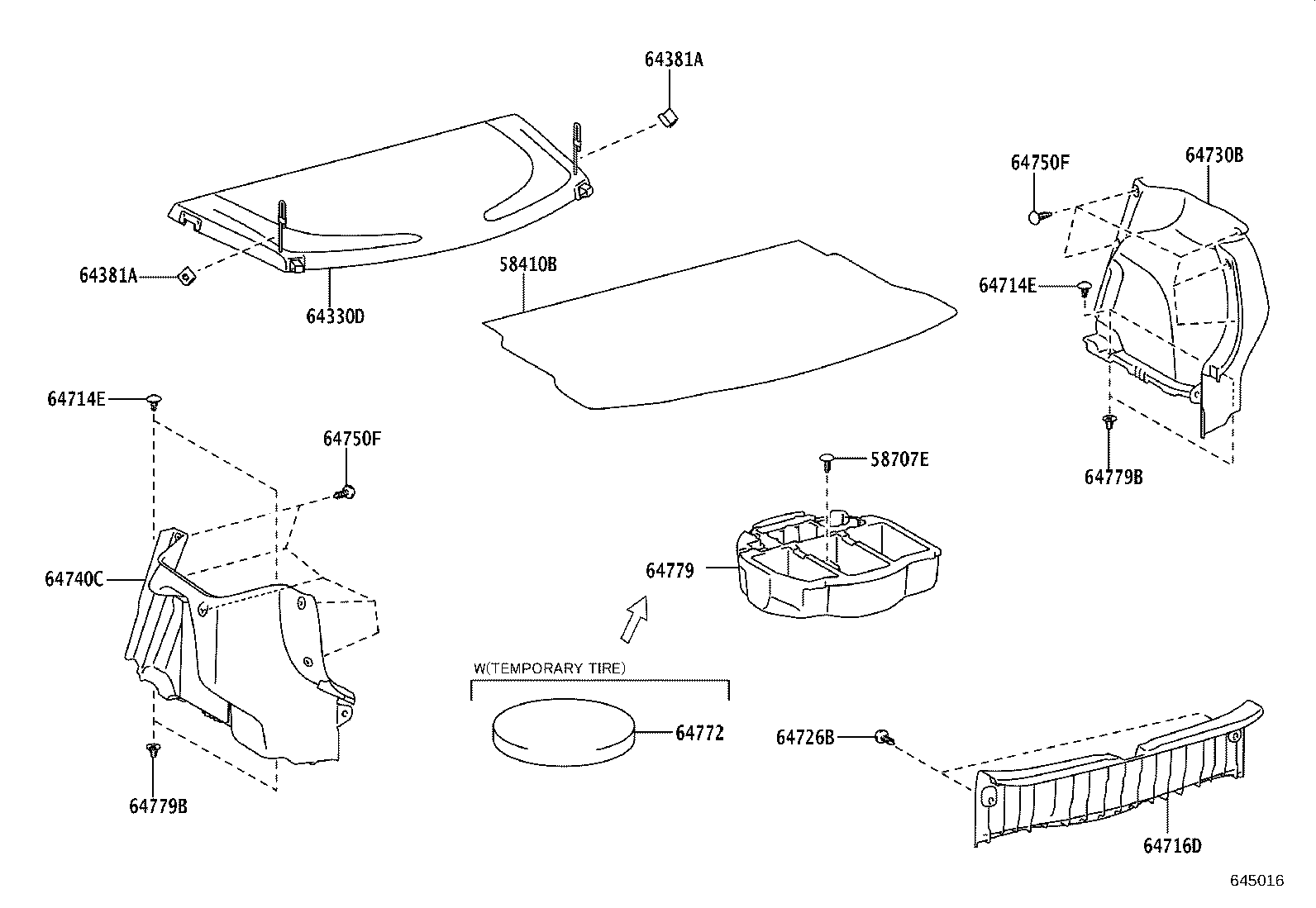

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58410B - BOARD ASSY, DECK | ||||
| 58410-0D130 |
NSP151..HB..D |
1 | ||
| 58410-0D140 |
NSP151..HB..(G,R) |
1 | ||
| 64330D - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-0D630C0 |
NSP151..HB BLACK,TRIM2# |
1 | ||
| 64381A - HANGER, PACKAGE TRAY TRIM | ||||
| 64381-52010 |
NSP151..HB |
2 | ||
| 64381A - HANGER, PACKAGE TRAY TRIM | ||||
| 64381-52010 |
NSP151..HB |
2 | ||
| 64711E - MAT, LUGGAGE COMPARTMENT FLOOR | ||||
| 64711-0D420C1 |
NSP151..HB BLACK,TRIM2# |
1 | ||
| 64714E - CLIP(FOR DECK TRIM SIDE COVER) | ||||
| 64726-0D020 |
NSP151..HB |
4 | ||
| 64714E - CLIP(FOR DECK TRIM SIDE COVER) | ||||
| 64726-0D020 |
NSP151..HB |
4 | ||
| 64716D - COVER, DECK TRIM, REAR | ||||
| 64716-0D240 |
NSP151..HB |
1 | ||
| 64726B - CLIP, DECK REAR TRIM | ||||
| 90467-08186C3 |
NSP151..HB BLACK |
2 | ||
| 90467-T0045C0 |
NSP151..HB BLACK |
2 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-0D550C1 |
NSP151..HB BLACK,TRIM2# |
1 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-0D540C1 |
NSP151..HB BLACK,TRIM2# |
1 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-T0045C0 |
NSP151..HB BLACK,TRIM2# |
10 | ||
| 90467-08186C3 |
NSP151..HB BLACK,TRIM2# |
10 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-T0045C0 |
NSP151..HB BLACK,TRIM2# |
10 | ||
| 90467-08186C3 |
NSP151..HB BLACK,TRIM2# |
10 | ||
| 64772 - PAD, SPARE WHEEL COVER | ||||
| 64772-0D160 |
NSP151..HB |
1 | ||
| 64773B - PAD, SPARE WHEEL COVER, NO.2 | ||||
| 64773-0D100 |
NSP151..HB |
1 | ||
| 64779B - STOPPER, SPARE WHEEL COVER | ||||
| 64779-0D050 |
NSP151..HB |
4 | ||
| 64779B - STOPPER, SPARE WHEEL COVER | ||||
| 64779-0D050 |
NSP151..HB |
4 | ||
| 73717A - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73717-0D070 |
NSP151..HB RH |
1 | ||
| 73717-0D080 |
NSP151..HB LH |
1 | ||
| 73717A - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73717-0D070 |
NSP151..HB RH |
1 | ||
| 73717-0D080 |
NSP151..HB LH |
1 | ||
(2101- )5D
Click highlighted areas on diagram
| Part # | Description | Qty | Price |
|---|
