NSP151R-BHXRKE (2020)
Toyota Vios/Yaris
Production
Dec 2020
-
Sep 9999
Engine
2NRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2012- )CVT

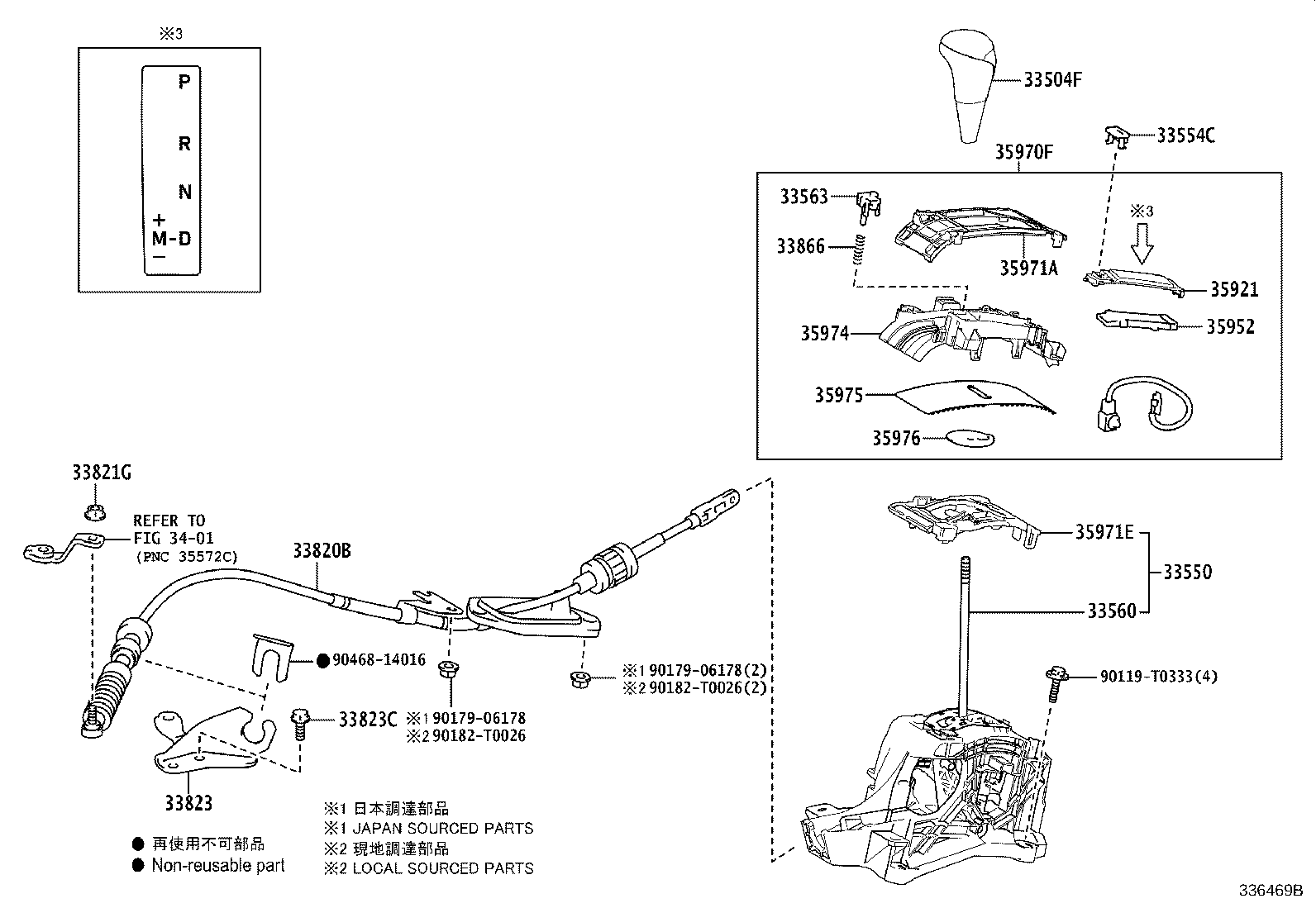

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-0D580C0 |
NSP151..CVT..D BLACK,TRIM2# |
1 | ||
| 33504-0D650C0 |
NSP151..R BLACK,TRIM2# |
1 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-0D610 |
NSP151..CVT |
1 | ||
| 33554C - COVER, SHIFT LOCK RELEASE BUTTON | ||||
| 33554-0D360 |
NSP151..CVT..D |
1 | ||
| 33554-0D240 |
NSP151..G,R |
1 | ||
| 33560 - UNIT ASSY, SHIFT LOCK CONTROL | ||||
| 33560-0D160 |
NSP151..CVT |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-0D140 |
NSP151..CVT |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-0D660 |
NSP151..CVT |
1 | ||
| 33821G - NUT (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90080-17130 |
NSP151..CVT |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-0D180 |
NSP151..CVT |
1 | ||
| 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 90119-T0102 |
NSP151..CVT |
2 | ||
| 33866 - SPRING, SHIFT LOCK RELEASE | ||||
| 33866-06030 |
NSP151..CVT |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-0D290 |
NSP151..CVT |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-0D160 |
NSP151..CVT |
1 | ||
| 35952 - LENS, POSITION INDICATOR | ||||
| 35952-0D030 |
NSP151..CVT |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-0D560 |
NSP151..CVT |
1 | ||
| 35971E - HOUSING, POSITION INDICATOR | ||||
| 35971-0D580 |
NSP151..CVT |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-0D100 |
NSP151..CVT |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-0D120 |
NSP151..CVT |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-0D140 |
NSP151..CVT |
1 | ||
| Common parts | ||||
| 90119-T0333 | ||||
| 90182-T0026 | ||||
| 90468-14016 | ||||
| Linked diagrams | ||||
| 3401 | ||||
(2101- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-T0333 | ||||
| 90179-06178 | ||||
| 90182-T0026 | ||||
| 90468-14016 | ||||
| Linked diagrams | ||||
| 3401 | ||||
