NSP151R-BHXRKE (2020)

Toyota Vios/Yaris

Production Dec 2020 - Sep 9999
Engine 2NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2012- )HB

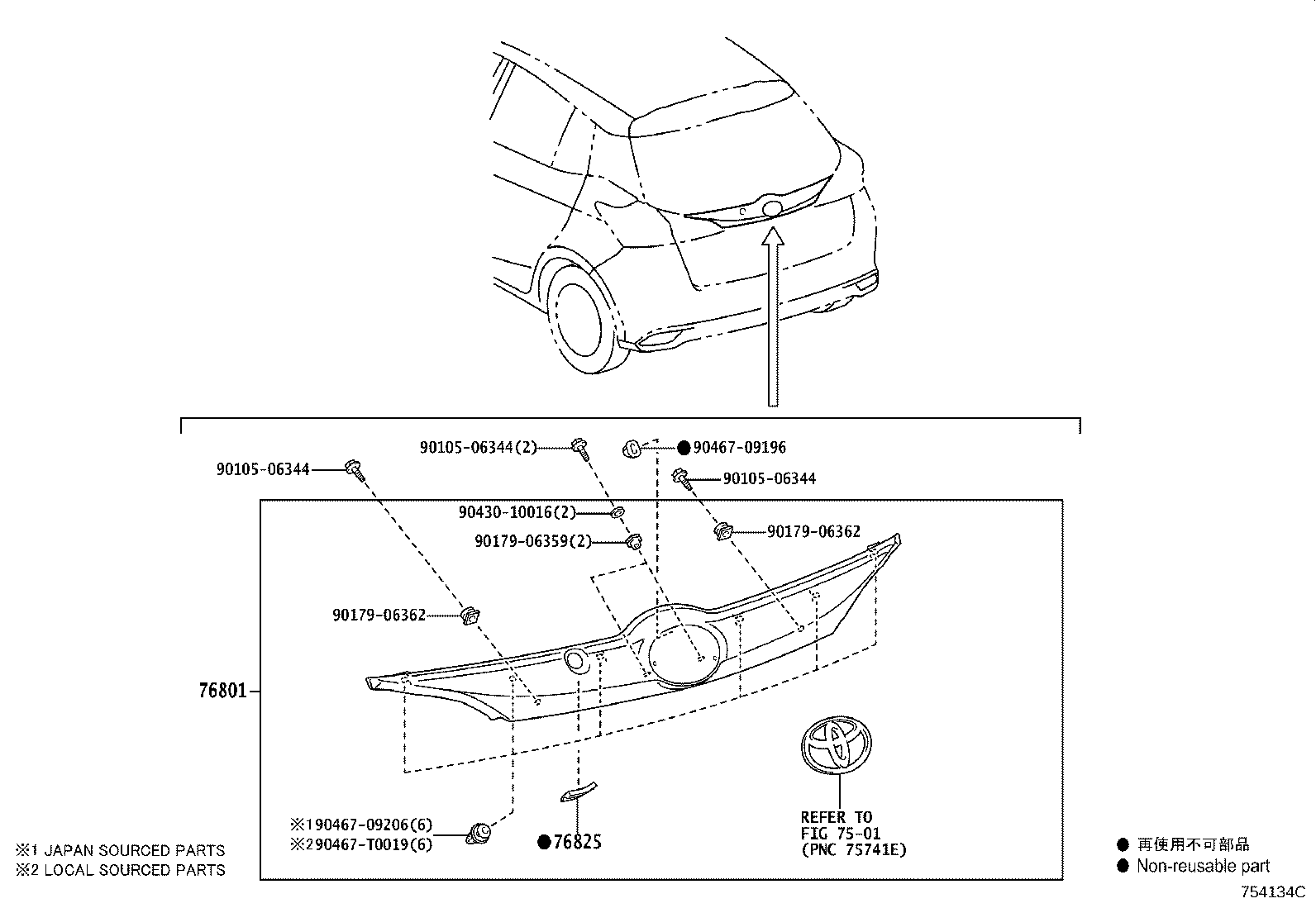

Click highlighted areas on diagram

diagram 7501 76801 76825 9010506344 9010506344 9010506344 9017906359 9017906362 9017906362 9043010016 9046709196 9046709206 90467T0019
Part # Description Qty Price
76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
76801-0DA40

NSP151..HB

NO PAINT REQ.

 1
76801-0DA41

NSP151..HB

NO PAINT REQ.

 1
76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH
76825-0D130

NSP151..HB

 1
Common parts
90105-06344
90179-06359
90179-06362
90430-10016
90467-09196
90467-09206
90467-T0019
Linked diagrams
7501
