Toyota Vios/yaris NSP151 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
GR
VIOS/YARIS
NSP151R-BEXRKE (2020)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

NSP151R-BEXRKE (2020)

Toyota Vios/Yaris

Production Dec 2020 - Sep 9999

Engine 2NRFE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

(2012- )

Click highlighted areas on diagram

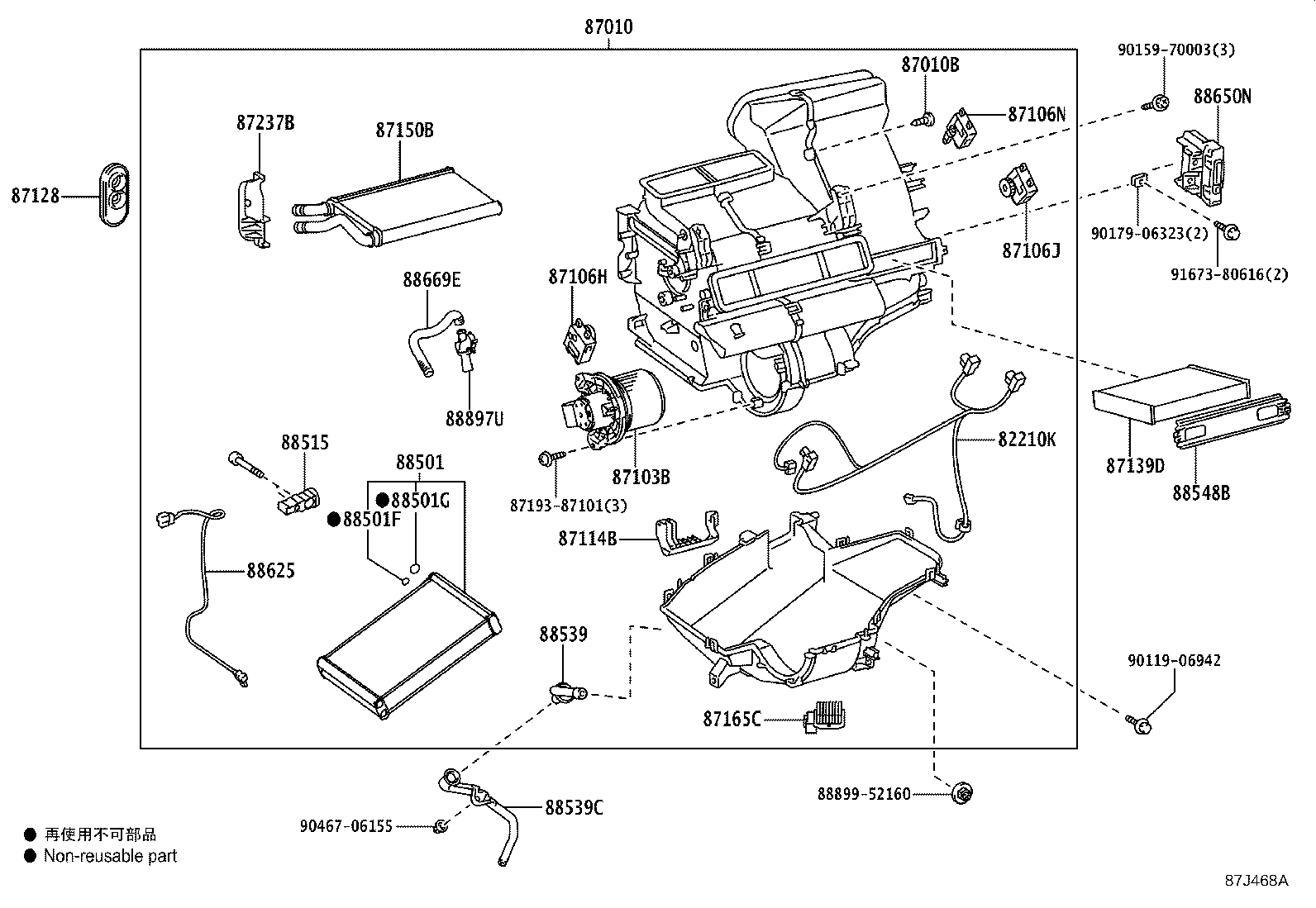

AUTO COOLER

Part #	Description	Period	Qty
82210K - HARNESS ASSY, AIR CONDITIONER
82212-0D010	NSP151..G;NSP151..SED..(D,R)	12/2020 - 12/2999	1
87010 - UNIT ASSY, AIR CONDITIONER
87010-0DK50	NSP151..G;NSP151..SED..(D,R)	12/2020 - 12/2999	1
87010B - SCREW(FOR AIR CONDITIONER UNIT)
90099-00968	NSP151..G;NSP151..SED..(D,R)	12/2020 - 12/2999	20
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-0D310	NSP151	12/2020 - 12/2999	1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-0D530	NSP151..G;NSP151..SED..(D,R)	12/2020 - 12/2999	1
87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87106-0D540	NSP151..G;NSP151..SED..(D,R)	12/2020 - 12/2999	1
87128 - GROMMET, HEATER
87128-0D110	NSP151	12/2020 - 12/2999	1
87139D - ELEMENT, AIR REFINER
87139-0D050	NSP151 DUST FILTER	12/2020 - 12/2999	1
87139-50100	NSP151 *DPF	12/2020 - 12/2999	1
87165C - CONTROL, BLOWER MOTOR
87165-0D180	NSP151..G;NSP151..SED..(D,R)	12/2020 - 12/2999	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-0D530	NSP151	12/2020 - 12/2999	1
88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE)
90099-14120	NSP151 ID=10.8,OD=15.6	12/2020 - 12/2999	1
88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION)
90099-14121	NSP151 ID=13.4,OD=18.2	12/2020 - 12/2999	1
88515 - VALVE, COOLER EXPANSION
88515-0D610	NSP151	12/2020 - 12/2999	1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
90099-04630	NSP151	12/2020 - 12/2999	2
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-0D310	NSP151	12/2020 - 12/2999	1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-0D360	NSP151	12/2020 - 12/2999	1
88548B - CASE, AIR FILTER
88548-0D180	NSP151	12/2020 - 12/2999	1
88625 - THERMISTOR, COOLER, NO.1
88620-0D140	NSP151..G;NSP151..SED..(D,R)	12/2020 - 12/2999	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-0D820	NSP151..G;NSP151..SED..(D,R)	12/2020 - 12/2999	1
88669E - HOSE, AIR
87233-0D200	NSP151..G;NSP151..SED..(D,R)	12/2020 - 12/2999	1
88897U - PIPE, ASPIRATOR
88897-0D110	NSP151..G;NSP151..SED..(D,R)	12/2020 - 12/2999	1
Common parts
87193-87101
88899-52160
90119-T0209
90159-T0037
90179-06323
90467-06155
91673-80616

(2012- )

Click highlighted areas on diagram

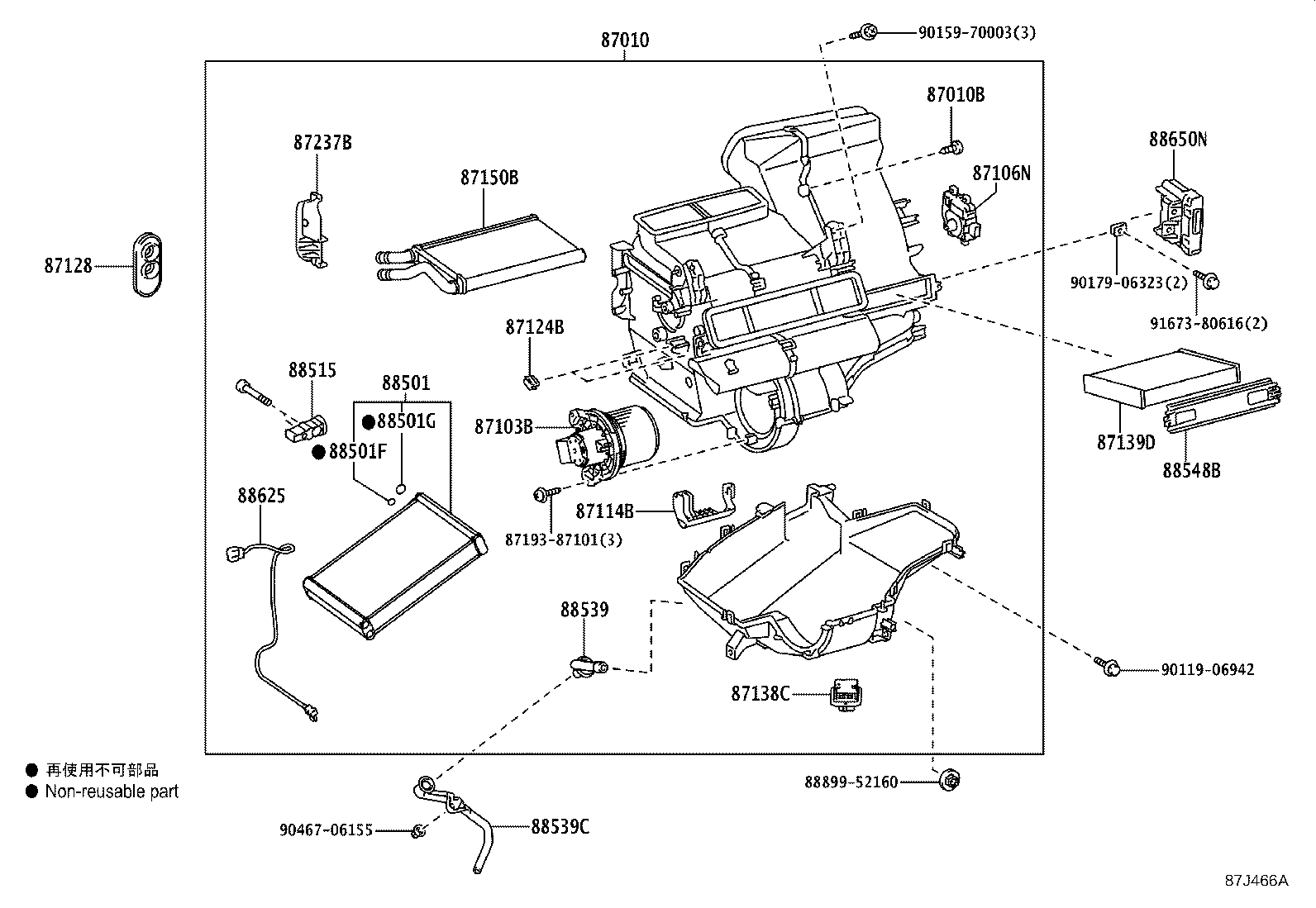

MANUAL COOLER

Part #	Description	Period	Qty
87010 - UNIT ASSY, AIR CONDITIONER
87010-0DK50	NSP151..G;NSP151..SED..(D,R)	12/2020 - 12/2999	1
87010B - SCREW(FOR AIR CONDITIONER UNIT)
90099-00968	NSP151..G;NSP151..SED..(D,R)	12/2020 - 12/2999	20
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-0D310	NSP151	12/2020 - 12/2999	1
87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87106-0D540	NSP151..G;NSP151..SED..(D,R)	12/2020 - 12/2999	1
87128 - GROMMET, HEATER
87128-0D110	NSP151	12/2020 - 12/2999	1
87139D - ELEMENT, AIR REFINER
87139-0D050	NSP151 DUST FILTER	12/2020 - 12/2999	1
87139-50100	NSP151 *DPF	12/2020 - 12/2999	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-0D530	NSP151	12/2020 - 12/2999	1
88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE)
90099-14120	NSP151 ID=10.8,OD=15.6	12/2020 - 12/2999	1
88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION)
90099-14121	NSP151 ID=13.4,OD=18.2	12/2020 - 12/2999	1
88515 - VALVE, COOLER EXPANSION
88515-0D610	NSP151	12/2020 - 12/2999	1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
90099-04630	NSP151	12/2020 - 12/2999	2
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-0D310	NSP151	12/2020 - 12/2999	1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-0D360	NSP151	12/2020 - 12/2999	1
88548B - CASE, AIR FILTER
88548-0D180	NSP151	12/2020 - 12/2999	1
88625 - THERMISTOR, COOLER, NO.1
88620-0D140	NSP151..G;NSP151..SED..(D,R)	12/2020 - 12/2999	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-0D820	NSP151..G;NSP151..SED..(D,R)	12/2020 - 12/2999	1
Common parts
87193-87101
88899-52160
90119-T0209
90159-T0037
90179-06323
90467-06155
91673-80616

(2101- )5D ; (2101- )4D..D,R

Click highlighted areas on diagram

MANUAL AIR CONDITIONER

Part #	Description	Period	Qty	Price
Common parts
87193-87101
88899-52160
90119-06942
90159-70003
90179-06323
90467-06155
91673-80616

(2101- )G ; (2101- )4D..V

Click highlighted areas on diagram

AUTO AIR CONDITIONER

Part #	Description	Period	Qty	Price
Common parts
87193-87101
88899-52160
90119-06942
90159-70003
90179-06323
90467-06155
91673-80616
