NSP151R-BEXRKE (2020)
Toyota Vios/Yaris
Production
Dec 2020
-
Sep 9999
Engine
2NRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2012- )SED

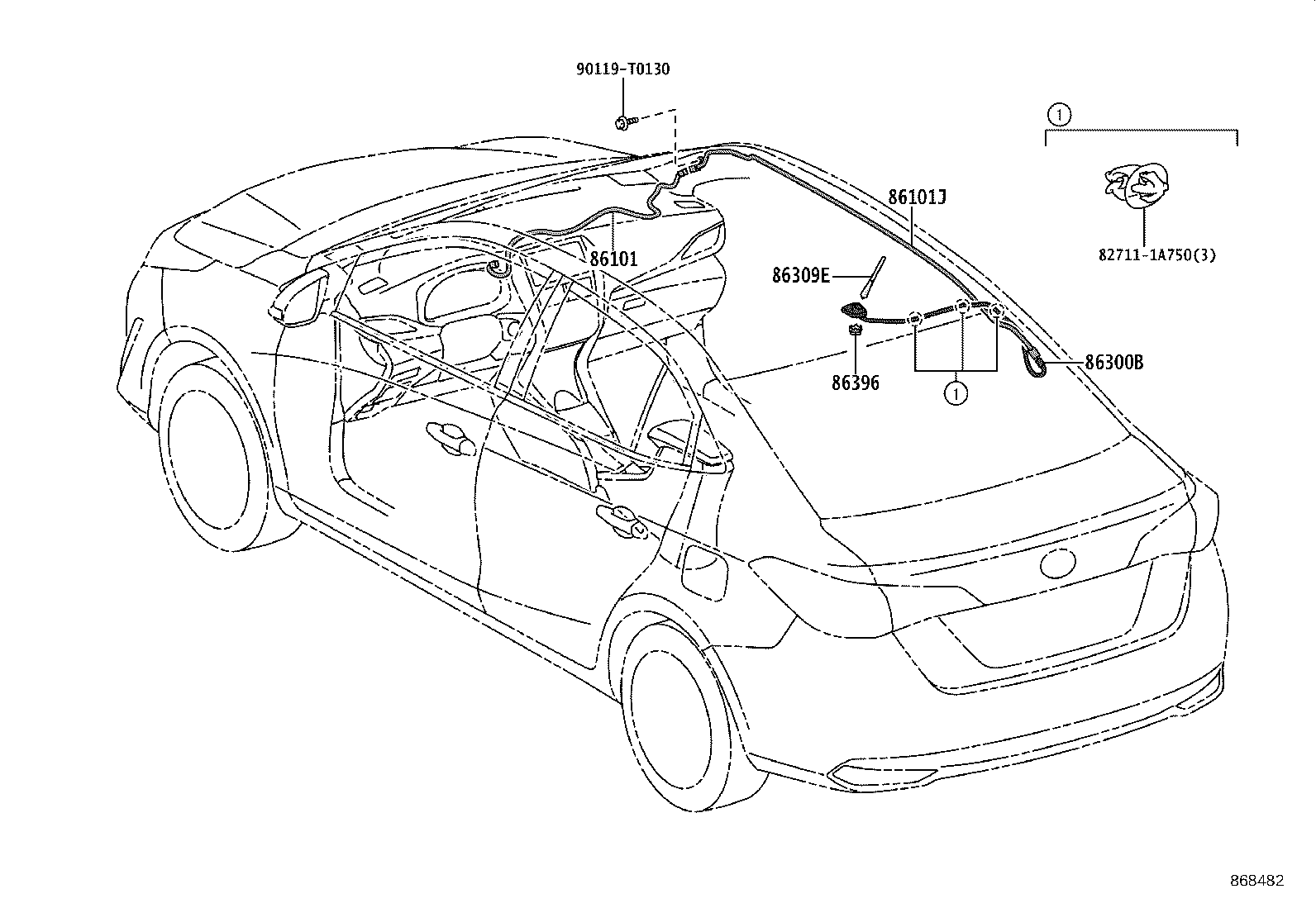

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86077 - COVER KIT, ANTENNA | ||||
| 86077-0D010J1 |
NSP151..SED DK.BLUE M.M.,8W7 |
1 | ||
| 86077-0D010C2 |
NSP151..SED ATTITUDE BLACK MC.,218 |
1 | ||
| 86077-0D010A2 |
NSP151..SED PLATINUM WHITE PEARL MC.,089 |
1 | ||
| 86077-0D010B0 |
NSP151..SED SILVER ME.,1D4 |
1 | ||
| 86077-0D010E3 |
NSP151..SED ORANGE ME.,4R8 |
1 | ||
| 86077-0D010D1 |
NSP151..SED RED M.M.,3R3 |
1 | ||
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-0DA70 |
NSP151 |
1 | ||
| 86101J - CORD SUB-ASSY, ANTENNA, NO.2 | ||||
| 86101-0D890 |
NSP151..SED |
1 | ||
| 86101S - CORD SUB-ASSY, ANTENNA | ||||
| 86101-0DA80 |
NSP151..SED |
1 | ||
| 86300B - ANTENNA ASSY, AMPLIFIER, NO.1 | ||||
| 86300-0D481 |
NSP151 TYPE B:REFER ILLUST. |
1 | ||
| 86300-0D481 |
NSP151 |
1 | ||
| 86300-0D480 |
NSP151 TYPE A:REFER ILLUST. |
1 | ||
| 86769 - HOUSING, ROOF ANTENNA | ||||
| 86769-0K020 |
NSP151 |
1 | ||
| Common parts | ||||
| 82711-1A750 | ||||
| 90119-T0130 | ||||
(2101- )4D
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1A750 | ||||
| 90119-T0130 | ||||
