NSP151R-BEXRKE (2020)

Toyota Vios/Yaris

Production Dec 2020 - Sep 9999
Engine 2NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2012- )

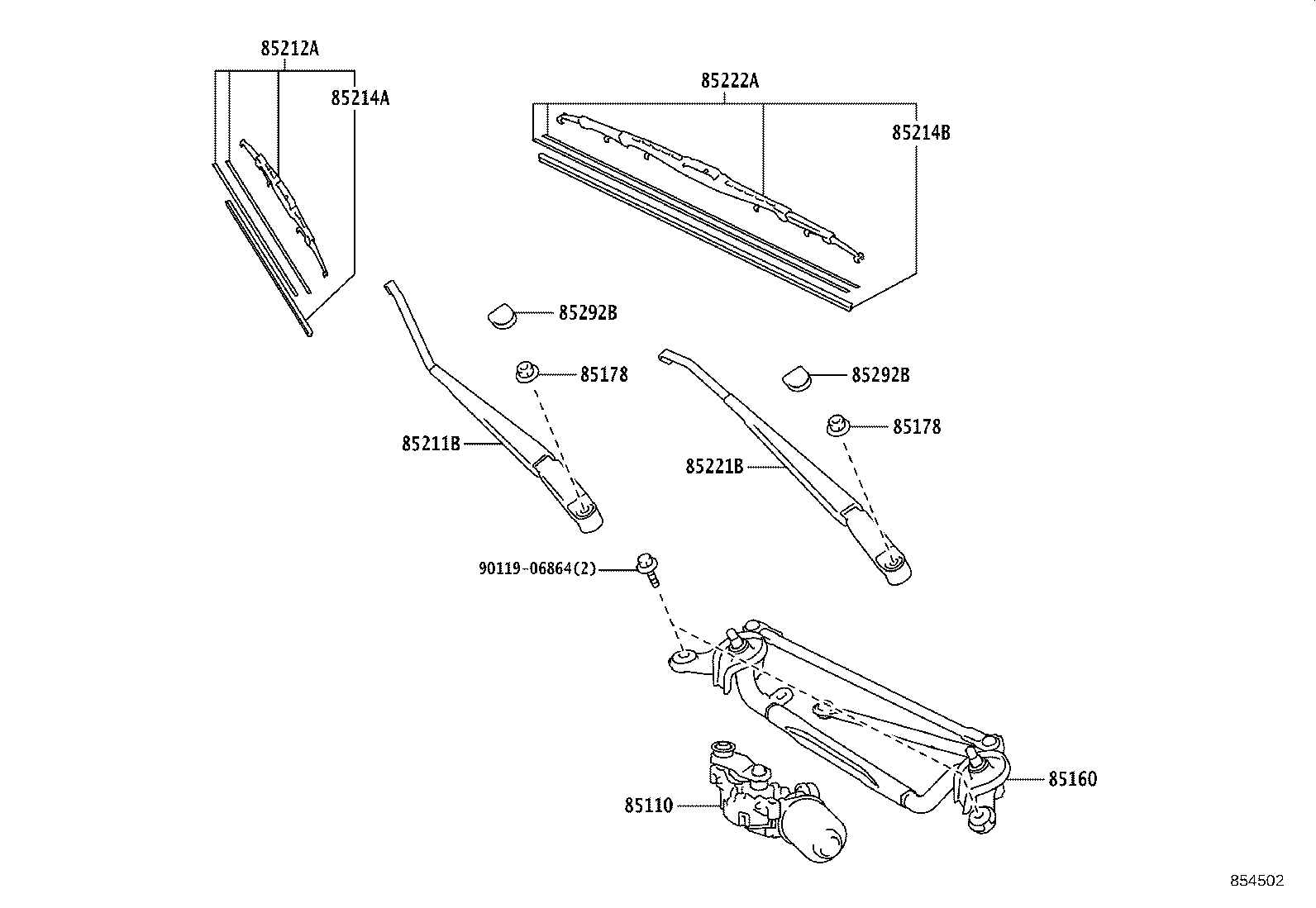

Click highlighted areas on diagram

diagram 85110 85160 85178 85178 85211B 85212A 85214A 85214B 85221B 85222A 85292B 85292B 90119T0145
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-0D340

NSP151

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-0D210

NSP151

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90182-T0029

NSP151

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90182-T0029

NSP151

 2
85211B - ARM, FRONT WIPER, RH
85211-0D210

NSP151

 1
85212A - BLADE, FR WIPER, RH
85212-0D070

NSP151

 1
85214A - RUBBER, WIPER, RH
85214-02180

NSP151

 1
85214B - RUBBER, WIPER, LH
85214-0D121

NSP151

 1
85221B - ARM, FRONT WIPER, LH
85221-0D190

NSP151

 1
85222A - BLADE, FR WIPER, LH
85222-0D071

NSP151

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-0D030

NSP151

 2
85292B - CAP, FRONT WIPER ARM HEAD
85292-0D030

NSP151

 2
Common parts
90119-T0145

(2101- )

Click highlighted areas on diagram

diagram 85110 85160 85178 85178 85211B 85212A 85214A 85214B 85221B 85222A 85292B 85292B 9011906864
Part # Description Qty Price
Common parts
90119-06864
