NSP151R-BEXRKE (2020)
Toyota Vios/Yaris
Production
Dec 2020
-
Sep 9999
Engine
2NRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

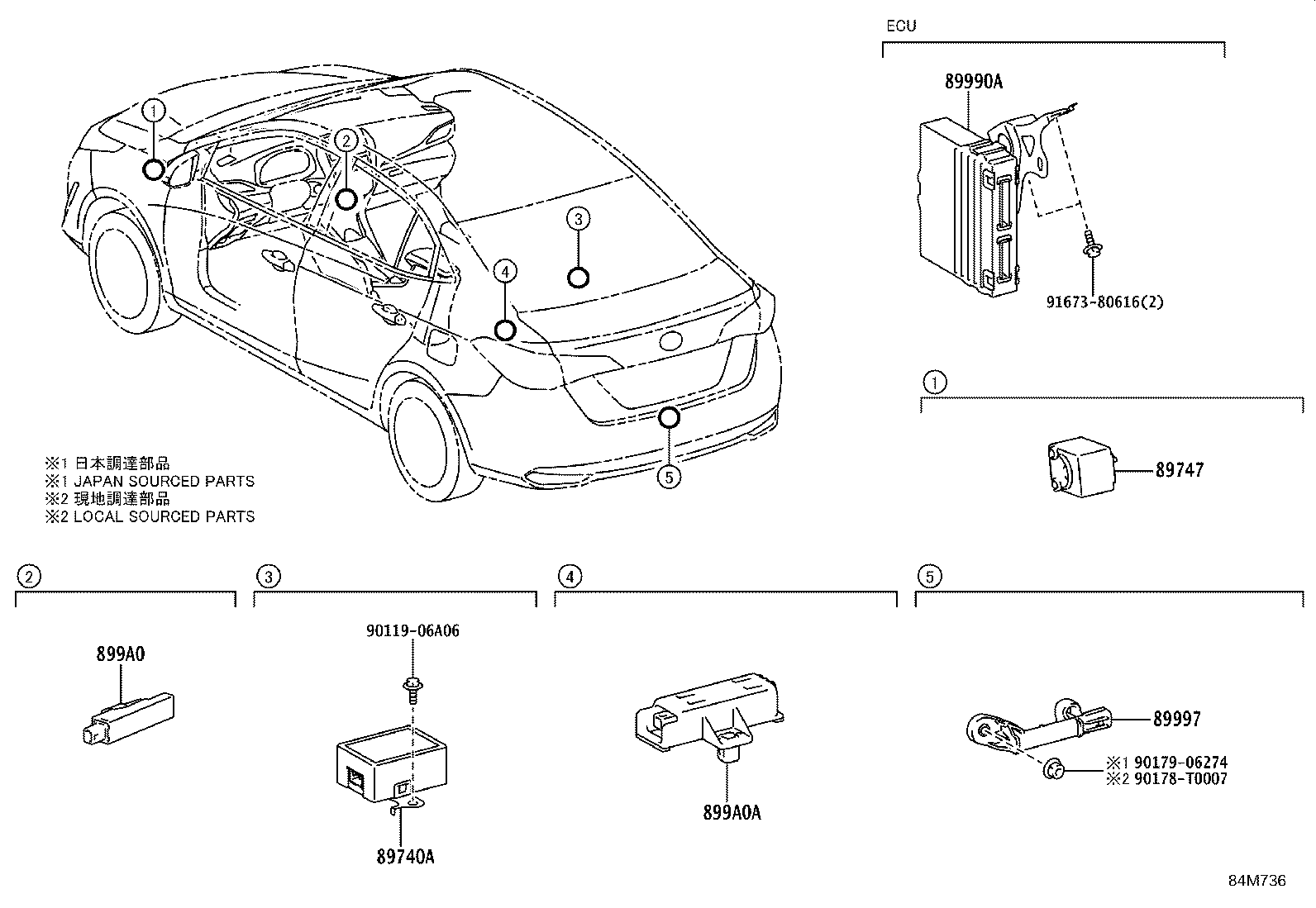

(2012- )SED
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89740A - RECEIVER ASSY, SMART DOOR CONTROL | ||||
| 89740-0D350 |
NSP151..SED |
1 | ||
| 89747 - BUZZER, WIRELESS DOOR LOCK | ||||
| 89747-30040 |
NSP151 |
1 | ||
| 89990A - COMPUTER ASSY, SMART KEY | ||||
| 89990-0D240 |
NSP151..SED |
1 | ||
| 89997 - ANTENNA, ELECTRICAL KEY | ||||
| 89997-30100 |
NSP151 |
1 | ||
| 899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1 | ||||
| 899A0-0D170 |
NSP151 |
1 | ||
| 899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2 | ||||
| 899A0-0D100 |
NSP151 |
1 | ||
| Common parts | ||||
| 90119-T0130 | ||||
| 90178-T0007 | ||||
| 91673-80616 | ||||

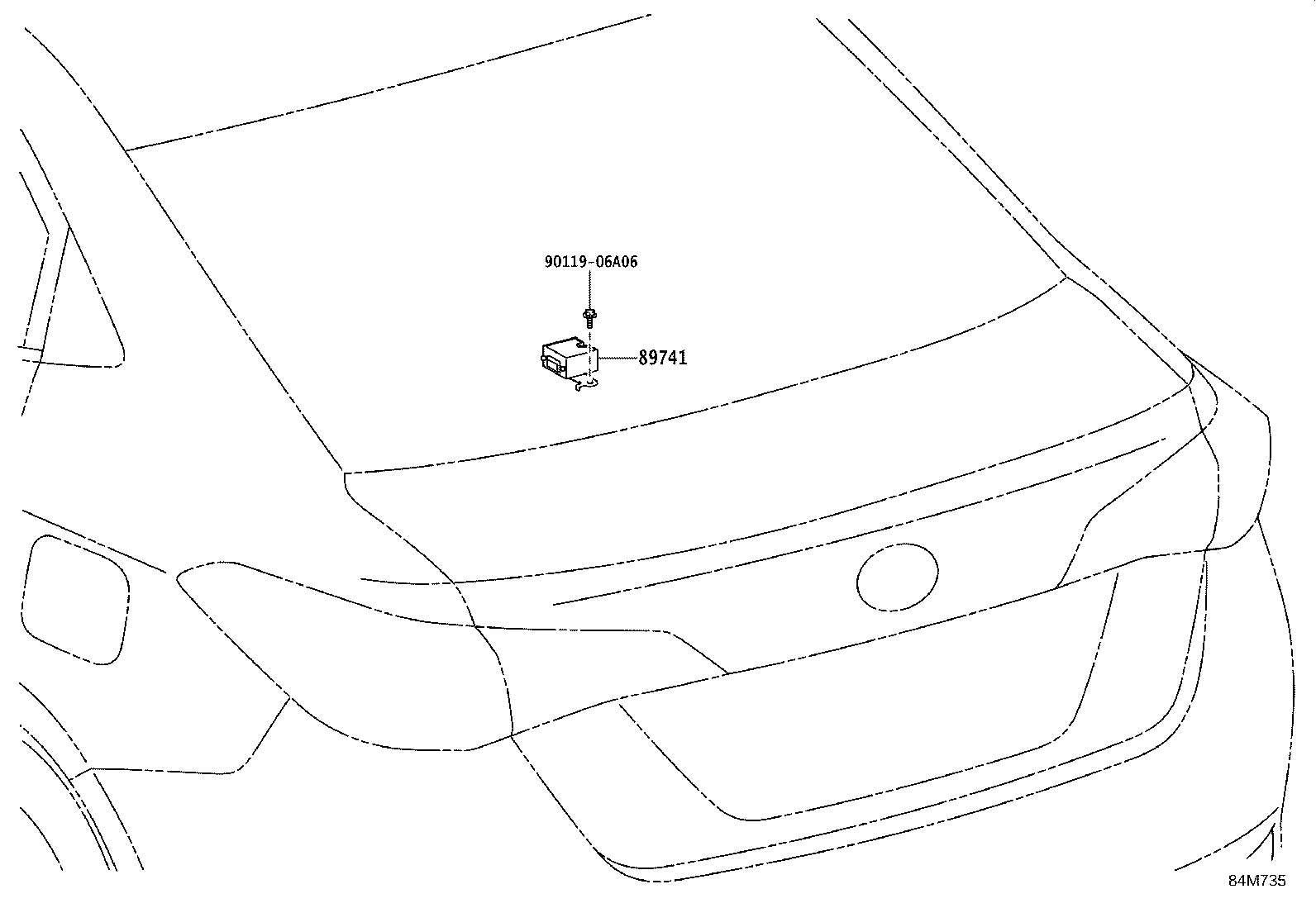

(2101- )4D
Click highlighted areas on diagram
W/O(SMART ENTRY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06A06 | ||||
(2101- )4D
Click highlighted areas on diagram
W(SMART ENTRY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06A06 | ||||
| 90178-T0007 | ||||
| 90179-06274 | ||||
| 91673-80616 | ||||
