NSP151R-BEXRKE (2020)

Toyota Vios/Yaris

Production Dec 2020 - Sep 9999
Engine 2NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2012- )

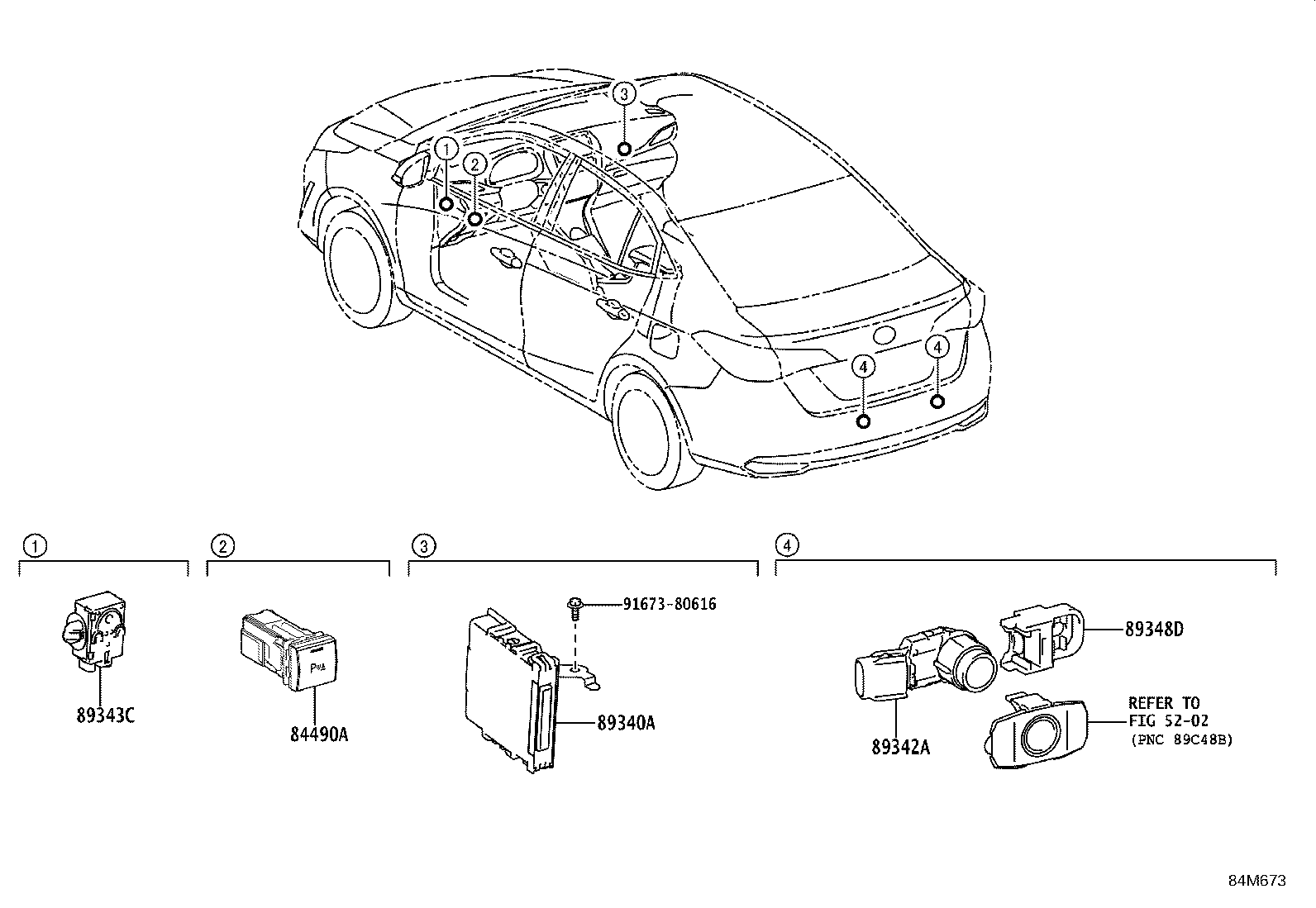

Click highlighted areas on diagram

diagram 5201 5202 5202 84490A 89340A 89341K 89342 89342A 89343C 89348J 89348J 9167380616
Part # Description Qty Price
84490A - SWITCH ASSY, BACK SONAR OR CLEARANCE SONAR
84490-0D090

NSP151

 1
89340A - COMPUTER ASSY, CLEARANCE WARNING
89340-0D020

NSP151..D,R

 1
89342A - SENSOR, ULTRASONIC, REAR CENTER
89341-06080C0

NSP151

ATTITUDE BLACK MC.,218

 2
89341-06080A1

NSP151..SED

PLATINUM WHITE PEARL MC.,089

 2
89341-06080E3

NSP151..SED

ORANGE ME.,4R8

 2
89341-06080D1

NSP151..SED

RED M.M.,3R3

 2
89341-06080J1

NSP151..SED

DK.BLUE M.M.,8W7

 2
89341-06080B0

NSP151..SED

SILVER ME.,1D4

 2
89343C - BUZZER, CLEARANCE WARNING, NO.1
89343-48010

NSP151

 1
89348J - CLIP, ULTRASONIC SENSOR
89348-33190

NSP151..D,R

 2
89348J - CLIP, ULTRASONIC SENSOR
89348-33190

NSP151..D,R

 2
Common parts
91673-80616
Linked diagrams
5201
5202

(2101- )4D

Click highlighted areas on diagram

diagram 5202 84490A 89340A 89342A 89343C 89348D 9167380616
Part # Description Qty Price
Common parts
91673-80616
Linked diagrams
5202
