NSP151R-BEXRKE (2020)
Toyota Vios/Yaris

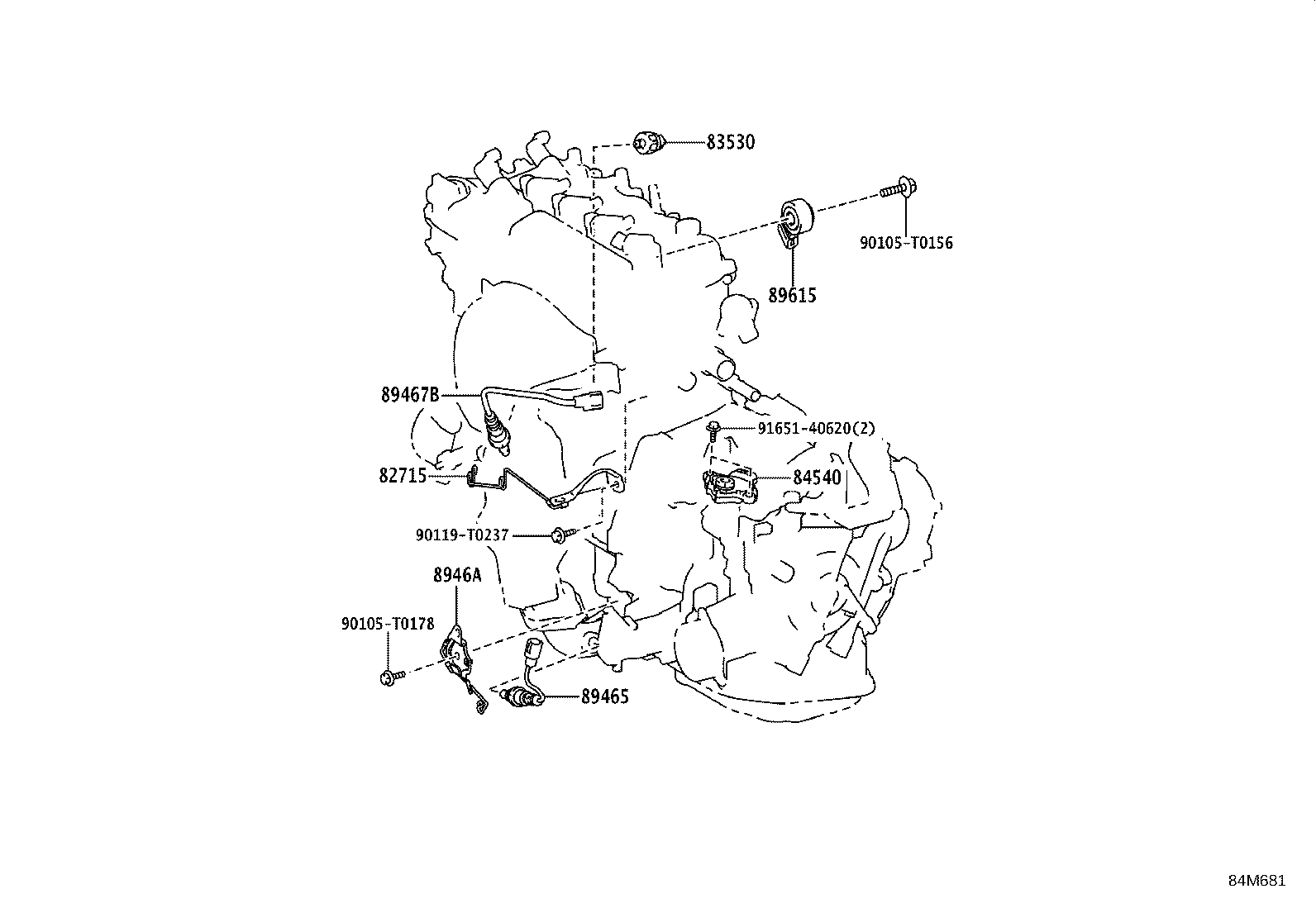

ILLUST NO. 1 OF 7(2012- )
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82715 - BRACKET,WIRING HARNESS CLAMP | ||||
| 82715-5C360 |
NSP151 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
NSP151 DENSO |
1 | ||
| 83530-60020 |
NSP151 YAZAKI |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-52070 |
NSP151..CVT |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-52A00 |
NSP151..CVT |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-52A00 |
NSP151..CVT |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-30050 |
NSP151 |
1 | ||
| 8946A - BRACKET, EXHAUST SENSOR CLAMP | ||||
| 8946A-52080 |
NSP151..CVT |
1 | ||
| 8946A - BRACKET, EXHAUST SENSOR CLAMP | ||||
| 8946A-52080 |
NSP151..CVT |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
NSP151 |
1 | ||
| Common parts | ||||
| 90105-T0156 | ||||
| 90105-T0178 | ||||
| 90119-T0134 | ||||
| 90119-T0237 | ||||
| 90430-18008 | ||||
| 91651-40620 | ||||

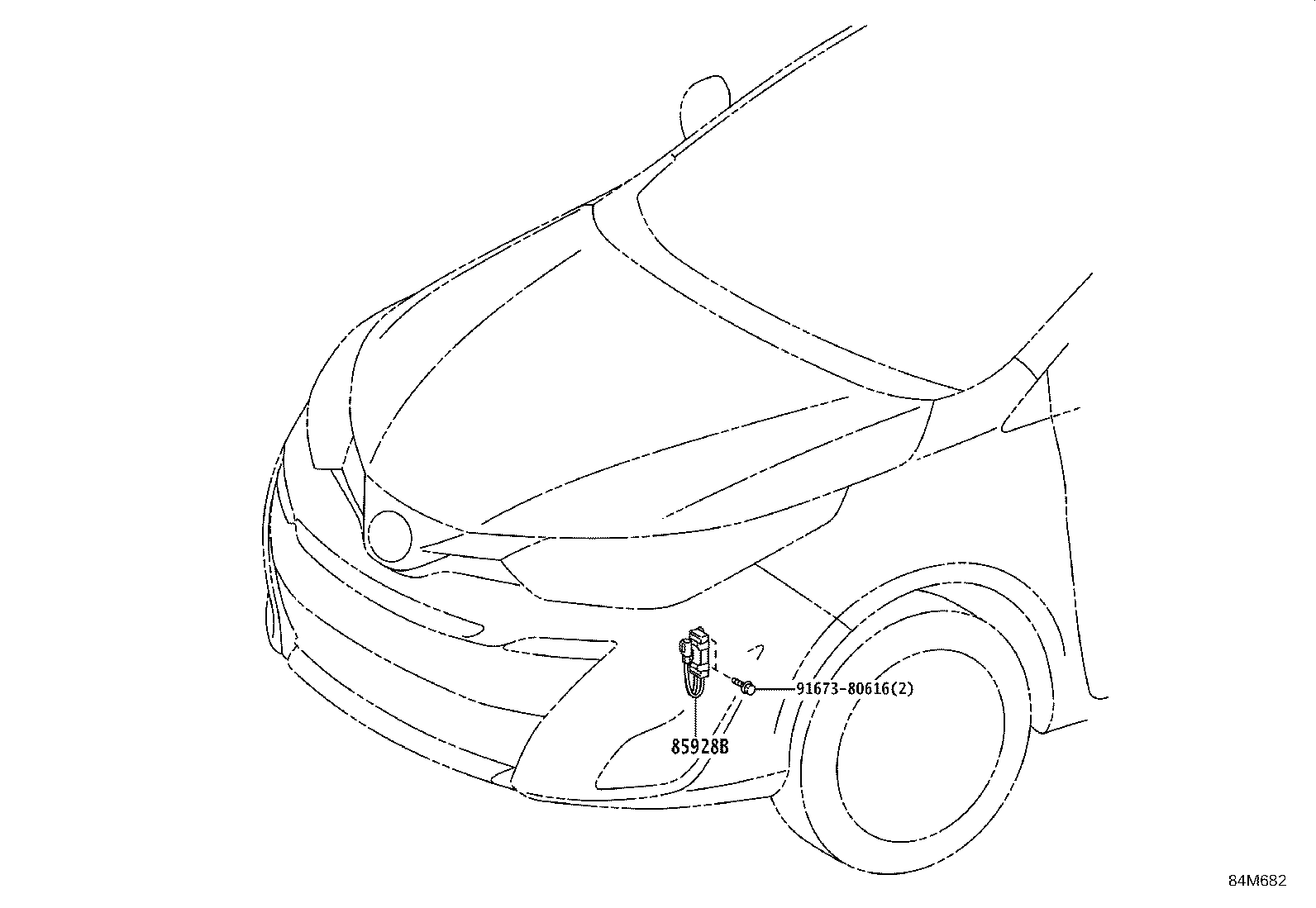

ILLUST NO. 2 OF 7(2012- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85928B - RESISTOR, COOLING FAN | ||||
| 85928-0D020 |
NSP151 |
1 | ||
| Common parts | ||||
| 90119-T0283 | ||||
| 90178-T0018 | ||||
| 90182-T0026 | ||||
| 91673-80616 | ||||

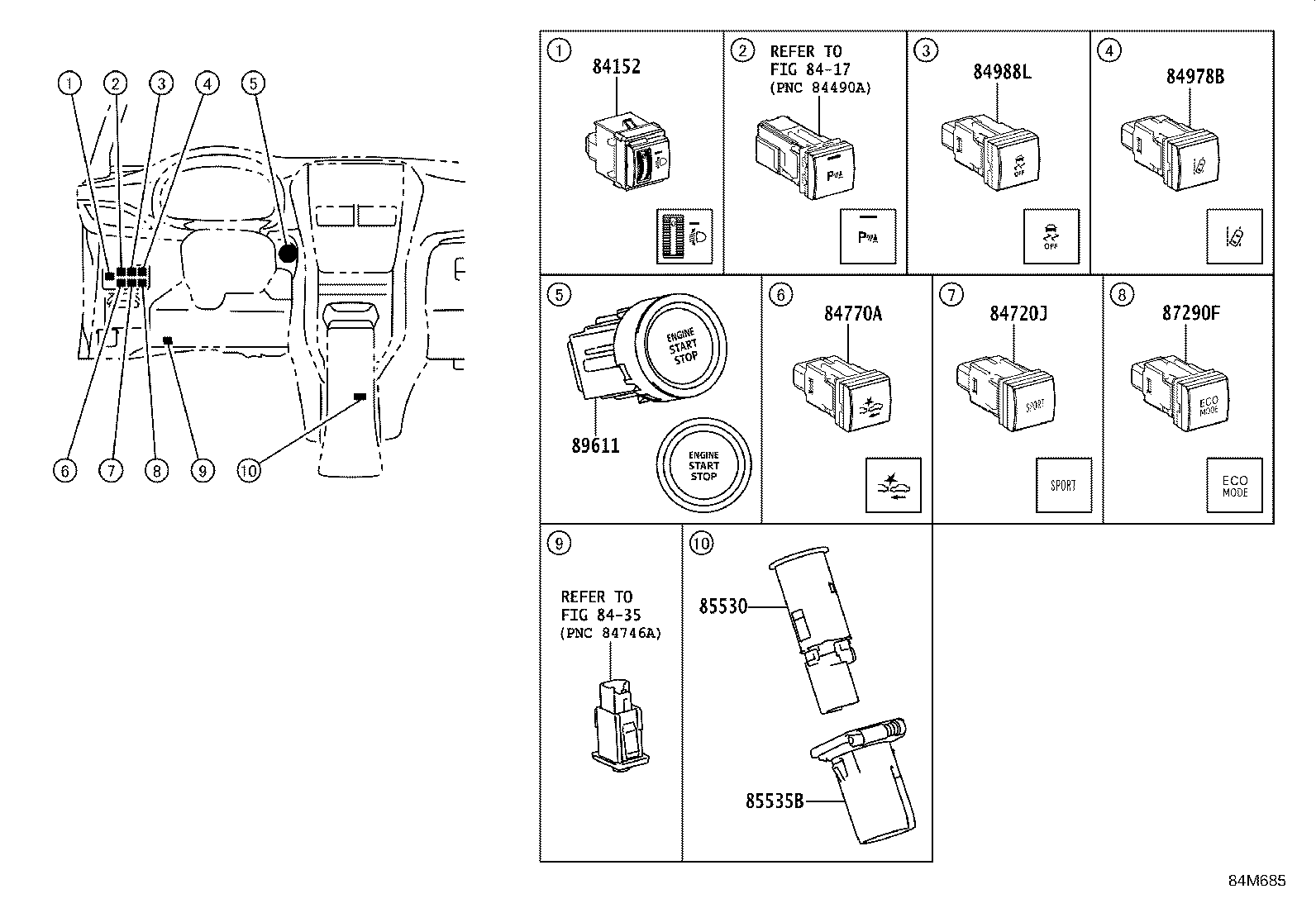

ILLUST NO. 5 OF 7(2012- )
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-0D300 |
NSP151 |
1 | ||
| 84720J - SWITCH ASSY, PATTERN SELECT | ||||
| 84720-0D130 |
NSP151..CVT |
1 | ||
| 84770A - SWITCH ASSY, PRE-COLLISION SYSTEM CANCEL | ||||
| 84770-0D050 |
NSP151..G,R MLM PACKAGE |
1 | ||
| 84978B - SWITCH, LANE-KEEPING ASSIST MAIN | ||||
| 84978-0D020 |
NSP151..G,R MLM PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-06110 |
NSP151 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-0K040 |
NSP151 |
1 | ||
| 85532 - SOCKET, USB CHARGER | ||||
| 85532-06020 |
NSP151 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-0D060 |
NSP151 |
1 | ||
| 87290F - SWITCH ASSY, ECO | ||||
| 87290-0D130 |
NSP151..CVT |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-0K011 |
NSP151 |
1 | ||
| Linked diagrams | ||||
| 8417 | ||||

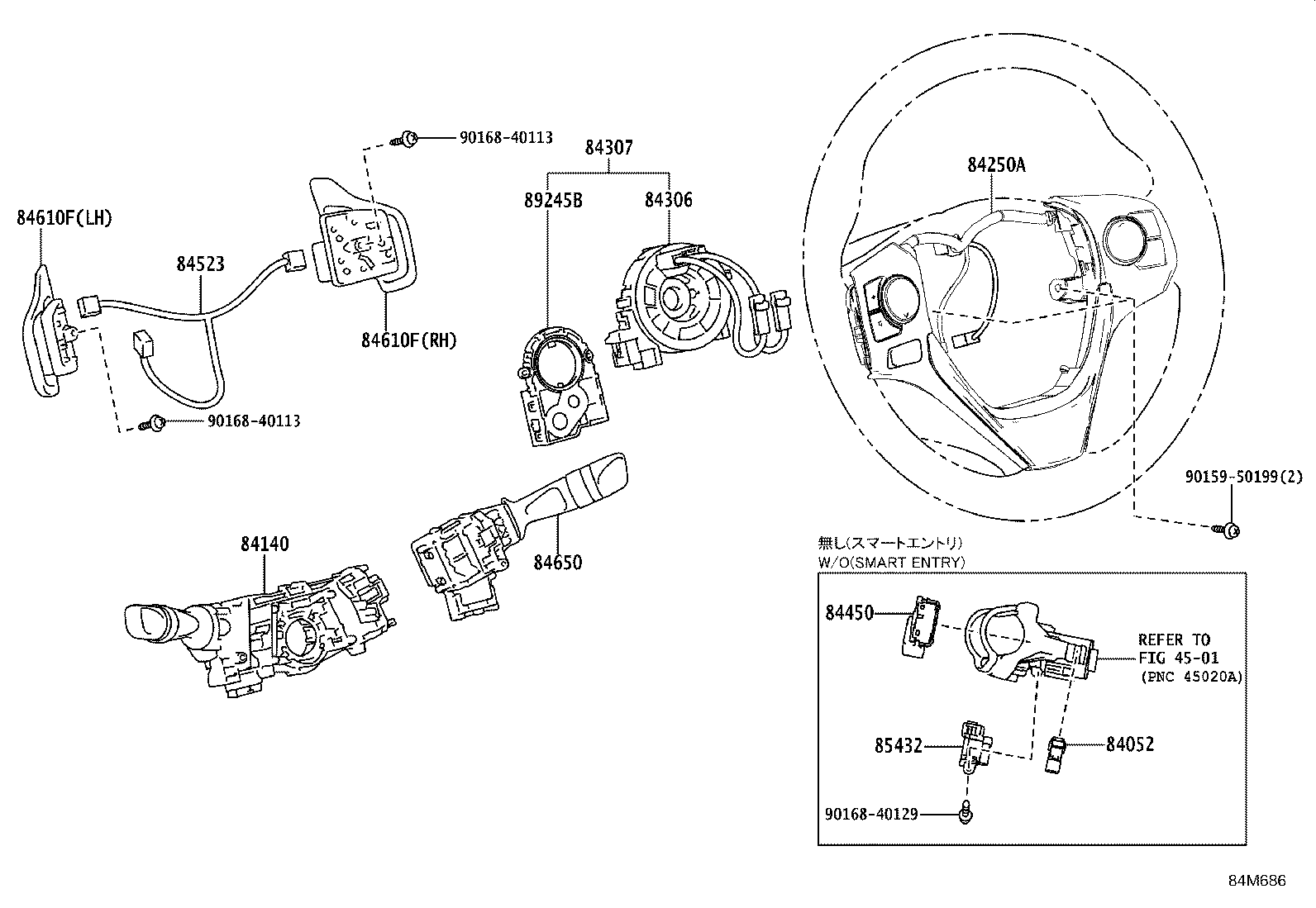

ILLUST NO. 6 OF 7(2012- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-0D890 |
NSP151..D MLM PACKAGE |
1 | ||
| 84140-0D880 |
NSP151..D |
1 | ||
| 84140-0D890 |
NSP151..G,R |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-0D590C0 |
NSP151..G,R BLACK,TRIM2# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-0K020 |
NSP151..D |
1 | ||
| 84308-0K010 |
NSP151..G,R |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-0D180 |
NSP151..G,R |
1 | ||
| 84307-0D170 |
NSP151..D |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-0K240 |
NSP151..SED |
1 | ||
| 84652-0K241 |
NSP151..SED |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 8924B-0D010 |
NSP151 |
1 | ||
| Common parts | ||||
| 90159-T0007 | ||||
| 90168-40113 | ||||

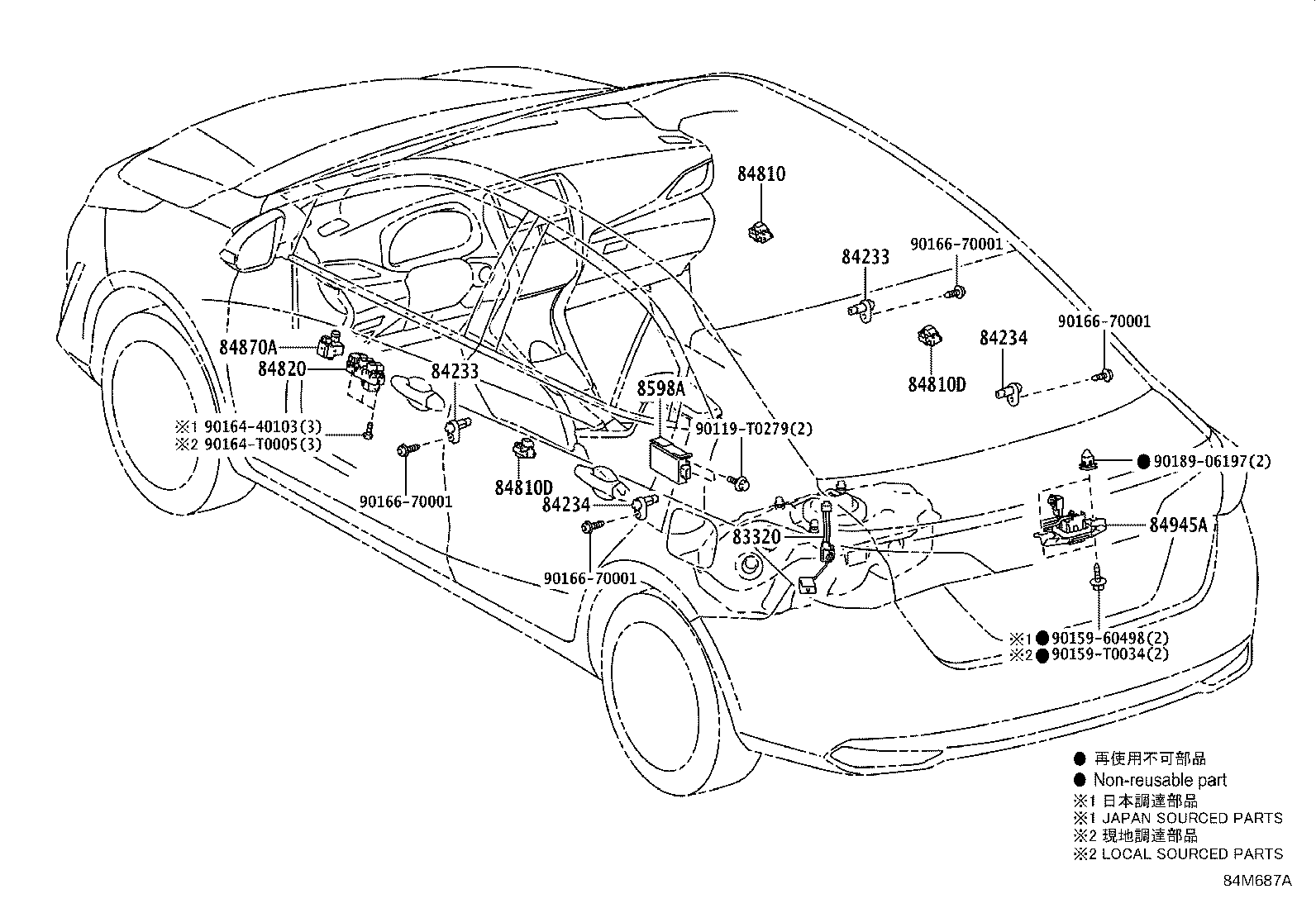

ILLUST NO. 7 OF 7(2012- )SED
DOOR,ROOF,FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-0D150 |
NSP151 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-02070 |
NSP151 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-02070 |
NSP151 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-02070 |
NSP151 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-02070 |
NSP151 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0D300 |
NSP151 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0D300 |
NSP151 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0D300 |
NSP151 |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-0D590 |
NSP151 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-0K030 |
NSP151..HB;NSP151..SED..(G,R) |
1 | ||
| 84872-0K010 |
NSP151..SED..D |
1 | ||
| 84945A - SWITCH, LUGGAGE ELECTRICAL KEY | ||||
| 84945-53020 |
NSP151..SED |
1 | ||
| Common parts | ||||
| 90159-T0034 | ||||
| 90164-T0005 | ||||
| 90166-70001 | ||||
| 90189-06197 | ||||

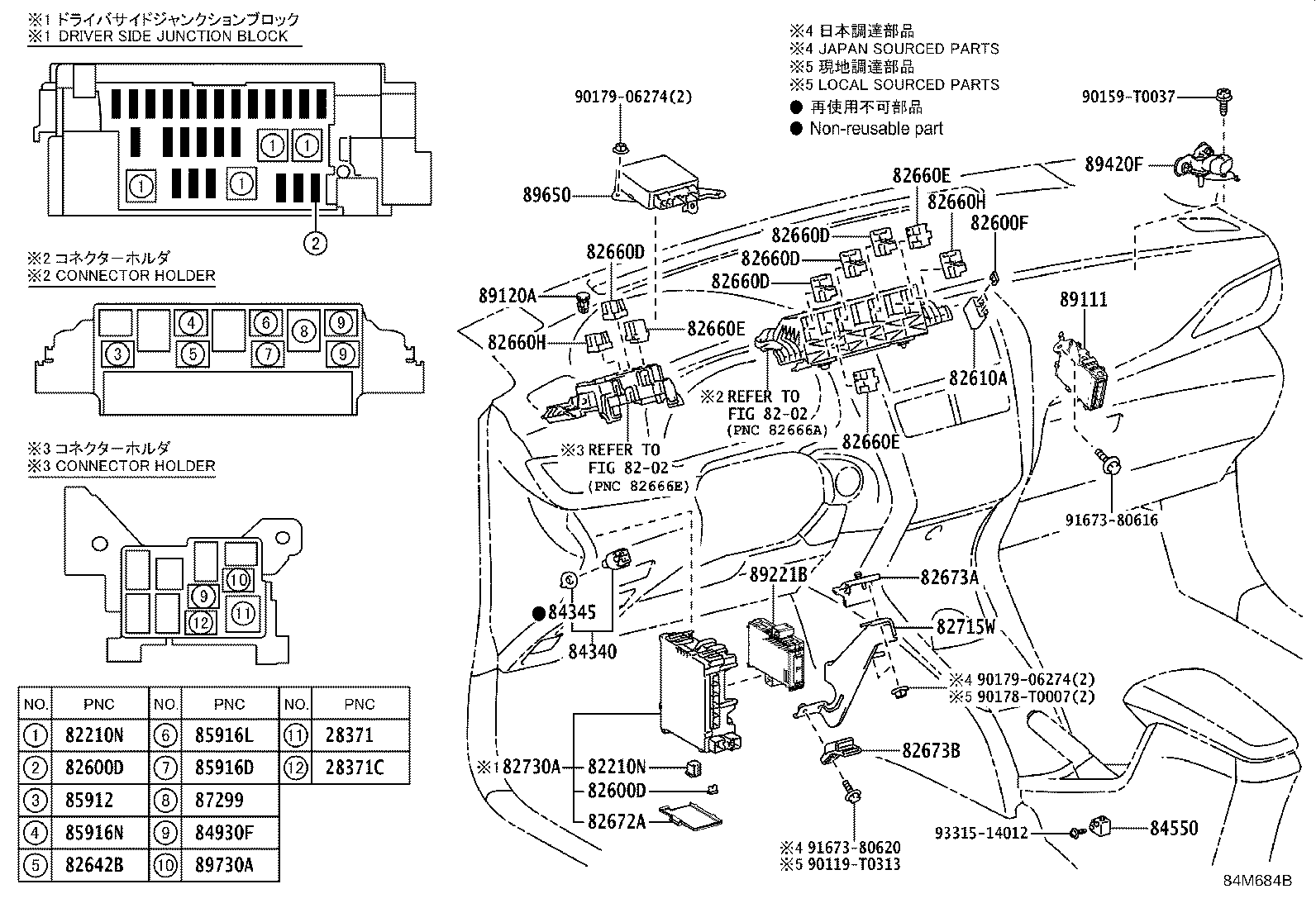

ILLUST NO. 4 OF 7(2012- )
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-T2009 |
2NRFE..NSP151 |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-T2001 |
2NRFE..NSP151 |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08295 |
NSP151 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08295 |
NSP151 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
NSP151 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
NSP151 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
NSP151 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
NSP151 25A,MINI FUSE |
1 | ||
| 90982-09023 |
NSP151 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
NSP151 15A,MINI FUSE,BLUE |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
NSP151 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
NSP151 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
NSP151 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
NSP151 25A,MINI FUSE |
1 | ||
| 90982-09023 |
NSP151 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
NSP151 15A,MINI FUSE,BLUE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09019 |
NSP151 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
NSP151 7.5A,MINI FUSE,BROWN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09019 |
NSP151 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
NSP151 7.5A,MINI FUSE,BROWN |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-52010 |
NSP151 |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-52010 |
NSP151 |
1 | ||
| 82642B - RELAY, DAY TIME RUNNING LIGHT, NO.1 | ||||
| 90987-T2001 |
NSP151 |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-48020 |
NSP151 |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-48020 |
NSP151 |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-48020 |
NSP151 |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-48020 |
NSP151 |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-48030 |
NSP151 |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-48030 |
NSP151 |
1 | ||
| 82660H - BLOCK ASSY, RELAY | ||||
| 82660-48040 |
NSP151 |
1 | ||
| 82660H - BLOCK ASSY, RELAY | ||||
| 82660-48040 |
NSP151 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-0D030 |
NSP151 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-0D390 |
NSP151 |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-0K020 |
NSP151 |
1 | ||
| 82715W - BRACKET, WIRING HARNESS CLAMP | ||||
| 82715-0DW50 |
NSP151 |
1 | ||
| 82730A - BLOCK ASSY, DRIVER SIDE JUNCTION | ||||
| 82730-0DA20 |
NSP151 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-09041 |
NSP151..D |
1 | ||
| 84340-09400 |
NSP151..G,R MLM PACKAGE |
1 | ||
| 84340-09210 |
NSP151..G,R |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-0K010 |
NSP151 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-02030 |
NSP151 |
1 | ||
| 84930F - RELAY, DOOR LOCK CONTOROL | ||||
| 90080-87009 |
NSP151 |
3 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90987-02027 |
NSP151 (J) |
1 | ||
| 90987-T2001 |
NSP151 (L) |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-T2001 |
NSP151 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-T2001 |
NSP151..D MLM PACKAGE |
1 | ||
| 90987-T2001 |
NSP151..G,R |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-T2001 |
NSP151 |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-T2001 |
NSP151 |
1 | ||
| 87299 - RELAY, HEATER | ||||
| 90987-T2002 |
NSP151 |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89100-52060 |
NSP151..G,R MLM PACKAGE |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
NSP151 |
1 | ||
| 89221B - COMPUTER, BODY | ||||
| 89221-0D670 |
NSP151 |
1 | ||
| 89420F - SENSOR ASSY, VACUUM | ||||
| 89420-52100 |
NSP151 |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-0D810 |
NSP151 JTEKT/DENSO |
1 | ||
| Common parts | ||||
| 90119-T0313 | ||||
| 90159-T0003 | ||||
| 90159-T0037 | ||||
| 90170-10017 | ||||
| 90178-T0007 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8202 | ||||

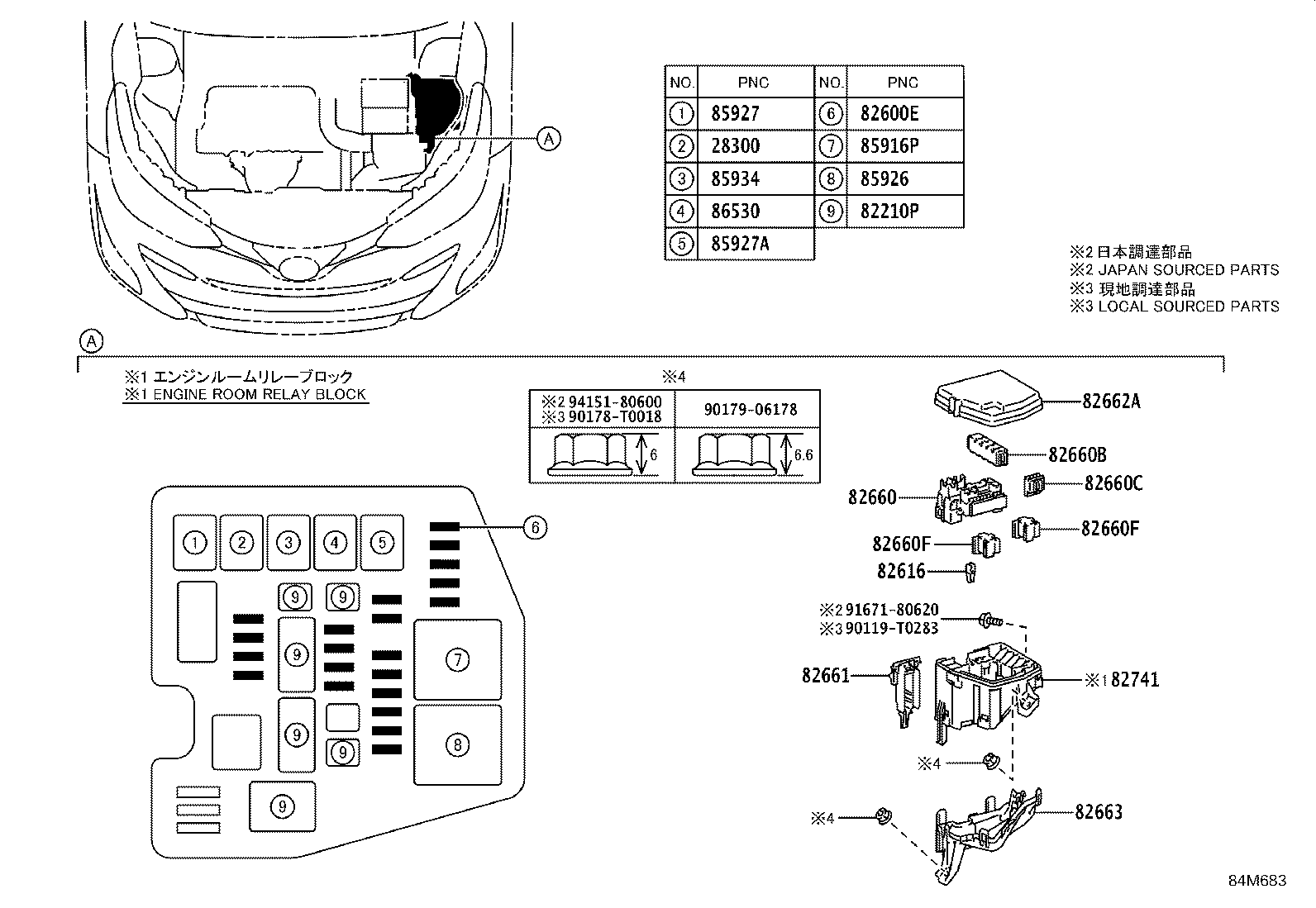

ILLUST NO. 3 OF 7(2012- )
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-0L011 |
2NRFE..NSP151 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08302 |
NSP151 50A-30A-50A,FEMALE |
1 | ||
| 90982-08274 |
NSP151 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08295 |
NSP151 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08300 |
NSP151 50A-30A-30A,FEMALE |
1 | ||
| 90982-08296 |
NSP151 50A,TERM.:FEMALE,RED |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09021 |
NSP151 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
NSP151 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
NSP151 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
NSP151 25A,MINI FUSE |
1 | ||
| 90982-09025 |
NSP151 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
NSP151 20A,MINI FUSE,YELLOW |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
NSP151 |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-0D040 |
NSP151 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0D050 |
NSP151 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-0D060 |
NSP151 |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
NSP151 |
2 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
NSP151 |
2 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-52050 |
NSP151 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-0D620 |
NSP151 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-0D090 |
NSP151 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-0D100 |
NSP151 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-T2002 |
NSP151 |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-T2002 |
NSP151 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-T2001 |
NSP151 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90080-87009 |
NSP151 |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
NSP151 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-T2001 |
NSP151 |
1 | ||
ILLUST NO. 1 OF 7(2101- )
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0156 | ||||
| 90105-T0178 | ||||
| 90119-T0237 | ||||
| 91651-40620 | ||||
ILLUST NO. 2 OF 7(2101- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91673-80616 | ||||
ILLUST NO. 3 OF 7(2101- )
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-T0283 | ||||
| 90178-T0018 | ||||
| 90179-06178 | ||||
| 91671-80620 | ||||
| 94151-80600 | ||||
ILLUST NO. 4 OF 7(2101- )
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-T0313 | ||||
| 90159-T0037 | ||||
| 90178-T0007 | ||||
| 90179-06274 | ||||
| 91673-80616 | ||||
| 91673-80620 | ||||
| 93315-14012 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 5 OF 7(2101- )
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 8417 | ||||
| 8435 | ||||
ILLUST NO. 6 OF 7(2101- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40113 | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 7 OF 7(2101- )4D
DOOR,ROOF,FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-T0279 | ||||
| 90159-60498 | ||||
| 90159-T0034 | ||||
| 90164-40103 | ||||
| 90164-T0005 | ||||
| 90166-70001 | ||||
| 90189-06197 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
