NSP151R-BEXRKE (2020)
Toyota Vios/Yaris
(2012- )

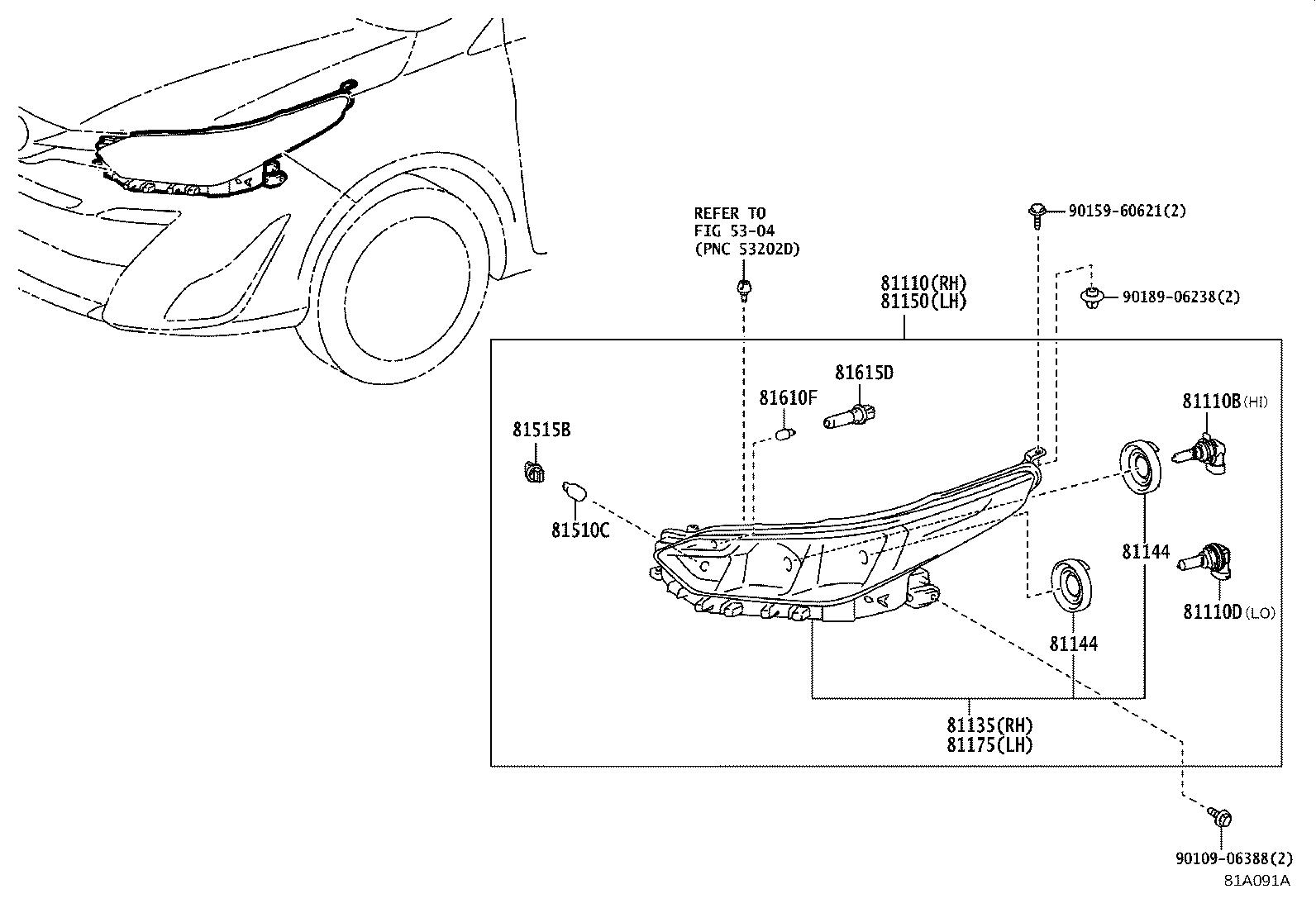

HALOGEN(MULTI REFLECTOR TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-0DP90 |
NSP151..D;NSP151..SED..R |
1 | ||
| 81110-YP240 |
NSP151 MLM PACKAGE |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13046 |
NSP151 12V65W(SAE),60W(ECE) |
2 | ||
| 90981-13046 |
NSP151 12V65W(SAE),60W(ECE),MLM PACKAGE |
1 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13075 |
NSP151 12V 55W,HALOGEN |
2 | ||
| 90981-13075 |
NSP151 12V 55W,HALOGEN,MLM PACKAGE |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-0DP90 |
NSP151..D;NSP151..SED..R |
1 | ||
| 81130-0DP90 |
NSP151..D;NSP151..SED..R MLM PACKAGE |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-65006 |
NSP151 |
4 | ||
| 90075-65006 |
NSP151 MLM PACKAGE |
2 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-65006 |
NSP151 |
4 | ||
| 90075-65006 |
NSP151 MLM PACKAGE |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-0DP90 |
NSP151..D;NSP151..SED..R MLM PACKAGE |
1 | ||
| 81150-0DP90 |
NSP151..D;NSP151..SED..R |
1 | ||
| 81150-YP240 |
NSP151 MLM PACKAGE |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-0DP90 |
NSP151..D;NSP151..SED..R |
1 | ||
| 81170-0DP90 |
NSP151..D;NSP151..SED..R MLM PACKAGE |
1 | ||
| 81510D - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
NSP151..D;NSP151..SED..R 12V 21W,AMBER,MLM PACKAGE |
1 | ||
| 90981-15021 |
NSP151..D;NSP151..SED..R 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
NSP151 |
2 | ||
| 90075-60028 |
NSP151 MLM PACKAGE |
1 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 90981-11069 |
NSP151..D;NSP151..SED..R 12V 5W |
2 | ||
| 90981-11069 |
NSP151..D;NSP151..SED..R 12V 5W,MLM PACKAGE |
1 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60089 |
NSP151..D;NSP151..SED..R MLM PACKAGE |
1 | ||
| 90075-60089 |
NSP151..D;NSP151..SED..R |
2 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
NSP151 |
2 | ||
| 90075-99120 |
NSP151 MLM PACKAGE |
1 | ||
| Common parts | ||||
| 90109-06388 | ||||
| 90159-T0009 | ||||
| 90189-T0007 | ||||
| Linked diagrams | ||||
| 5304 | ||||
(2012- )
HALOGEN(PROJECTOR TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-0DP90 |
NSP151..D;NSP151..SED..R |
1 | ||
| 81110-YP240 |
NSP151 MLM PACKAGE |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13046 |
NSP151 12V65W(SAE),60W(ECE) |
2 | ||
| 90981-13046 |
NSP151 12V65W(SAE),60W(ECE),MLM PACKAGE |
1 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13075 |
NSP151 12V 55W,HALOGEN |
2 | ||
| 90981-13075 |
NSP151 12V 55W,HALOGEN,MLM PACKAGE |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-0DP90 |
NSP151..D;NSP151..SED..R |
1 | ||
| 81130-0DP90 |
NSP151..D;NSP151..SED..R MLM PACKAGE |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-65006 |
NSP151 |
4 | ||
| 90075-65006 |
NSP151 MLM PACKAGE |
2 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-65006 |
NSP151 |
4 | ||
| 90075-65006 |
NSP151 MLM PACKAGE |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-0DP90 |
NSP151..D;NSP151..SED..R MLM PACKAGE |
1 | ||
| 81150-0DP90 |
NSP151..D;NSP151..SED..R |
1 | ||
| 81150-YP240 |
NSP151 MLM PACKAGE |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-0DP90 |
NSP151..D;NSP151..SED..R |
1 | ||
| 81170-0DP90 |
NSP151..D;NSP151..SED..R MLM PACKAGE |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
NSP151 12V 21W,AMBER |
2 | ||
| 90981-15021 |
NSP151 12V 21W,AMBER,MLM PACKAGE |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
NSP151 |
2 | ||
| 90075-60028 |
NSP151 MLM PACKAGE |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
NSP151 |
2 | ||
| 90075-99120 |
NSP151 MLM PACKAGE |
1 | ||
| Common parts | ||||
| 90109-06388 | ||||
| 90159-T0009 | ||||
| 90189-T0007 | ||||
| Linked diagrams | ||||
| 5304 | ||||

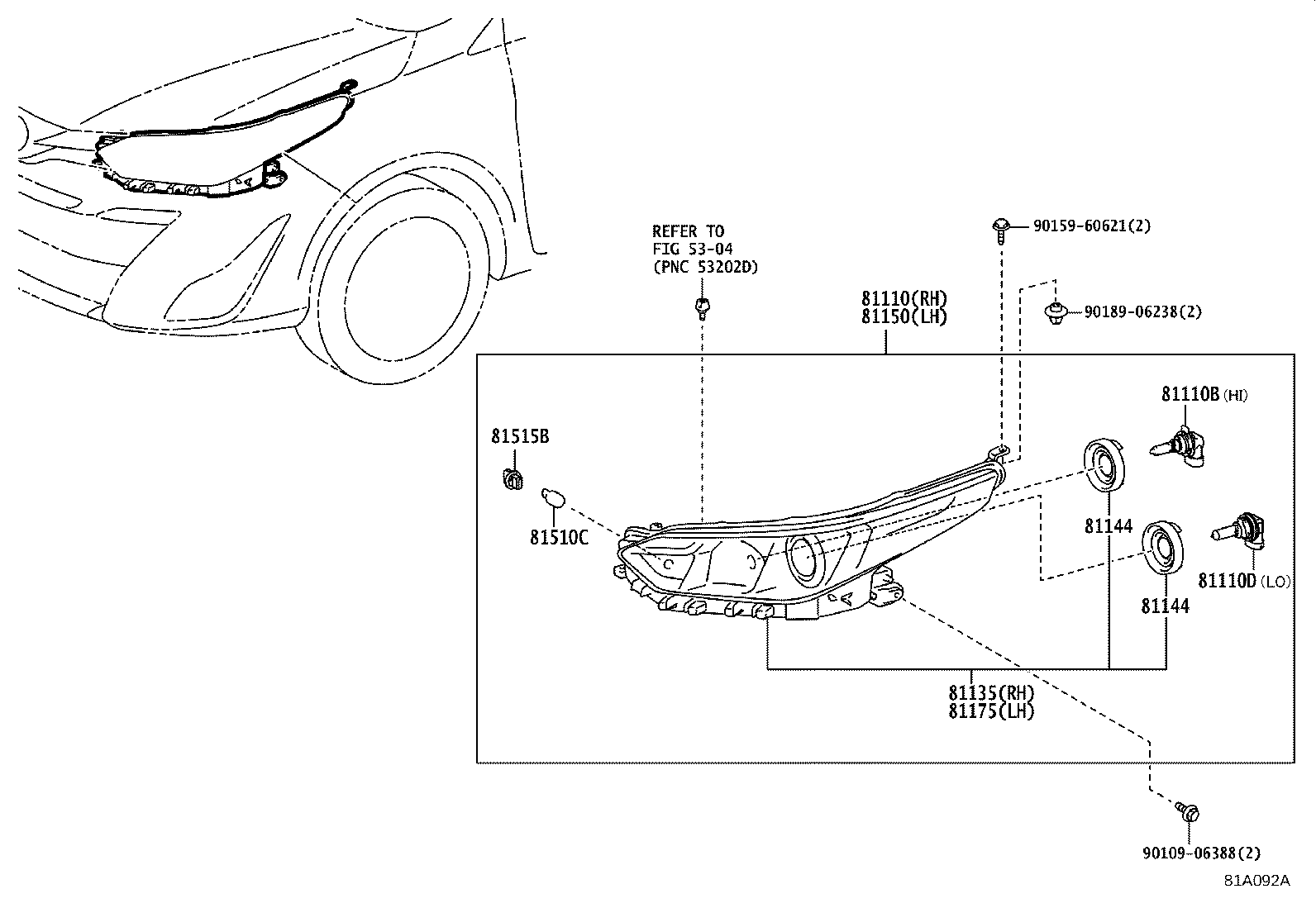

(2012- )
LED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-0DP90 |
NSP151..D;NSP151..SED..R |
1 | ||
| 81110-YP240 |
NSP151 MLM PACKAGE |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-0DP90 |
NSP151..D;NSP151..SED..R |
1 | ||
| 81130-0DP90 |
NSP151..D;NSP151..SED..R MLM PACKAGE |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-0DP90 |
NSP151..D;NSP151..SED..R MLM PACKAGE |
1 | ||
| 81150-0DP90 |
NSP151..D;NSP151..SED..R |
1 | ||
| 81150-YP240 |
NSP151 MLM PACKAGE |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-0DP90 |
NSP151..D;NSP151..SED..R |
1 | ||
| 81170-0DP90 |
NSP151..D;NSP151..SED..R MLM PACKAGE |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
NSP151 12V 21W,AMBER |
2 | ||
| 90981-15021 |
NSP151 12V 21W,AMBER,MLM PACKAGE |
2 | ||
| Common parts | ||||
| 90109-06388 | ||||
| 90159-T0009 | ||||
| 90189-T0007 | ||||
| Linked diagrams | ||||
| 5304 | ||||
(2101- )D,G,R
MULTI REFLECTOR TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-06388 | ||||
| 90159-60621 | ||||
| 90189-06238 | ||||
| Linked diagrams | ||||
| 5304 | ||||
(2101- )G,V
REFLECTOR TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-06388 | ||||
| 90159-60621 | ||||
| 90189-06238 | ||||
| Linked diagrams | ||||
| 5304 | ||||
