NSP151R-BEXRKE (2020)

Toyota Vios/Yaris

Production Dec 2020 - Sep 9999
Engine 2NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(2012- )

Click highlighted areas on diagram

ARMREST

diagram 74210 74220 74231 74232 74250 74260 74271A 74272A 9016840048 90467T0034 90467T0034 90467T0034 90467T0034 90467T0034
Part # Description Qty Price
74210 - ARMREST ASSY, FRONT, RH
74210-0D240C0

NSP151..D,R

BLACK,TRIM2#

 1
74220 - ARMREST ASSY, FRONT, LH
74220-0D240C0

NSP151..D,R

BLACK,TRIM2#

 1
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-0DB30

NSP151..HB;NSP151..SED..(G,R)

 1
74231-0DD70

NSP151..SED..D

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-0DB70

NSP151

 1
74250 - ARMREST ASSY, REAR RH
74250-0D230C0

NSP151..D,R

BLACK,TRIM2#

 1
74260 - ARMREST ASSY, REAR LH
74260-0D230C0

NSP151..D,R

BLACK,TRIM2#

 1
74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH
74271-0D580

NSP151

 1
74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH
74272-0D580

NSP151

 1
Common parts
90168-40048
90467-T0034

ILLUST NO. 2 OF 2(2012- )

Click highlighted areas on diagram

VISOR & ASSIST GRIP

diagram 74310 74320 74348B 74348C 74610A 74614C 74614C 74811B 90151T0002
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-0DF00B0

NSP151..SED

GRAY,TRIM2#

 1
74320 - VISOR ASSY, LH
74320-0DE50B0

NSP151..SED

GRAY,TRIM2#

 1
74348B - HOLDER, VISOR, RH
74348-0D130B0

NSP151..SED

GRAY,TRIM2#

 1
74348C - HOLDER, VISOR, LH
74348-0D130B0

NSP151..SED

GRAY,TRIM2#

 1
74610A - GRIP SUB-ASSY, ASSIST
74610-0D080B0

NSP151..SED

GRAY,TRIM2#

 4
74614C - PLATE, ASSIST GRIP LOCK
74614-02020

NSP151

 8
74614C - PLATE, ASSIST GRIP LOCK
74614-02020

NSP151

 8
Common parts
90151-T0002

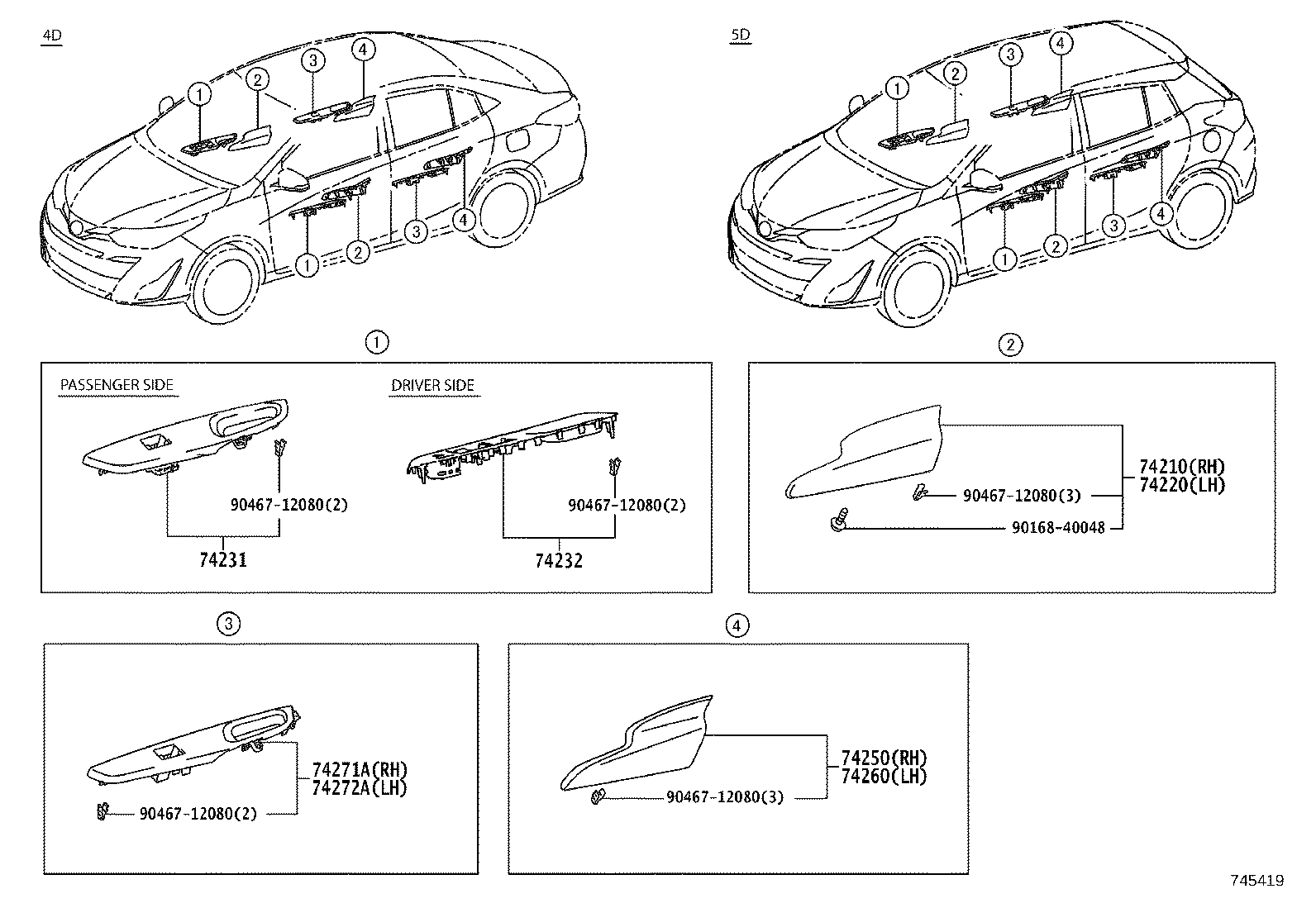

ILLUST NO. 1 OF 2(2101- )

Click highlighted areas on diagram

ARMREST

diagram 74210 74220 74231 74232 74250 74260 74271A 74272A 9016840048 9046712080 9046712080 9046712080 9046712080 9046712080
Part # Description Qty Price
Common parts
90168-40048
90467-12080

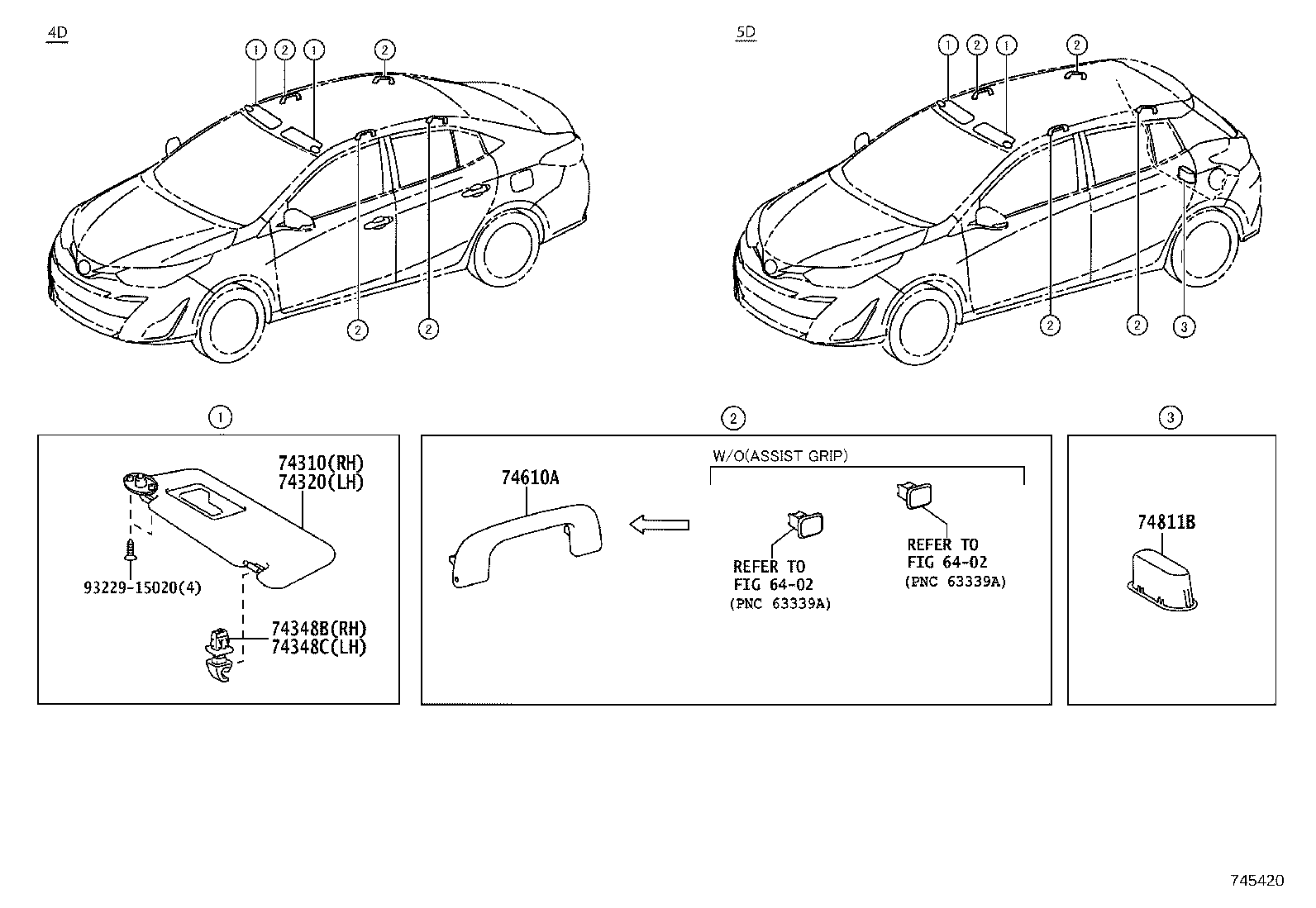

ILLUST NO. 2 OF 2(2101- )

Click highlighted areas on diagram

VISOR

diagram 6402 6402 74310 74320 74348B 74348C 74610A 74811B 9322915020
Part # Description Qty Price
Common parts
93229-15020
Linked diagrams
6402
