NSP151R-BEXRKE (2020)

Toyota Vios/Yaris

Production Dec 2020 - Sep 9999
Engine 2NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(2012- )

Click highlighted areas on diagram

FRONT SEAT BELT

diagram 73023 73024 73119 73200A 73210 73214 73219 73220 73230 73240 90105T0056 90105T0063 90105T0064 90109T0042 90178T0017 9017911010
Part # Description Qty Price
73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
73023-06080B0

NSP151..SED

GRAY,TRIM2#

 1
73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
73024-06110B0

NSP151..SED

GRAY,TRIM2#

 1
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

NSP151

 1
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-02140

NSP151

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-0D530C0

NSP151..SED

BLACK/GRAY,TRIM2#

 1
73214 - PLATE, FRONT SEAT BELT ANCHOR
73214-0K010

NSP151

 1
73219 - STOPPER, TONGUE PLATE
73219-33010

NSP151

BLACK

 1
73219-33020

NSP151

GRAY

 1
73219-33030

NSP151

BEIGE

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-0D520C0

NSP151..SED

BLACK/GRAY,TRIM2#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-0D790C0

NSP151

BLACK,TRIM2#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-0D680C0

NSP151

BLACK,TRIM2#

 1
Common parts
90105-T0056
90105-T0063
90105-T0064
90109-T0042
90178-T0017
90179-11010

ILLUST NO. 2 OF 2(2012- )SED

Click highlighted areas on diagram

REAR SEAT BELT

diagram 61815L 6403 73119 73143 73143 73219 73343 73344 73345 73360 73370 73439 73439 73439 73470B 73480 73719 73719 90105T0063 9356054012
Part # Description Qty Price
61815L - PROTECTOR, WIRING HARNESS, NO.1
61815-64010

NSP151

 1
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

NSP151

 1
73143 - SEAL, SEAT BELT HOLE
73143-52012

NSP151

 2
73143 - SEAL, SEAT BELT HOLE
73143-52012

NSP151

 2
73219 - STOPPER, TONGUE PLATE
73219-33010

NSP151

BLACK

 1
73219-33020

NSP151

GRAY

 1
73219-33030

NSP151

BEIGE

 1
73343 - GUIDE, REAR SEAT SHOULDER BELT, RH
73343-33020C1

NSP151..SED

BLACK,TRIM2#

 1
73344 - GUIDE, REAR SEAT SHOULDER BELT, LH
73344-33020C1

NSP151..SED

BLACK,TRIM2#

 1
73345 - GUIDE, REAR SEAT SHOULDER BELT, CENTER
73344-33020C1

NSP151..SED

BLACK,TRIM2#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-0D240C0

NSP151..SED

BLACK,TRIM2#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-0D200C0

NSP151..SED

BLACK,TRIM2#

 1
73439 - CUSHION, REAR SEAT BELT RETRACTOR
73439-0D020

NSP151..SED

CENTER

 1
73439-0D020

NSP151..SED

RH & LH

 2
73439 - CUSHION, REAR SEAT BELT RETRACTOR
73439-0D020

NSP151..SED

CENTER

 1
73439-0D020

NSP151..SED

RH & LH

 2
73439 - CUSHION, REAR SEAT BELT RETRACTOR
73439-0D020

NSP151..SED

CENTER

 1
73439-0D020

NSP151..SED

RH & LH

 2
73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH
73470-0D480C0

NSP151..SED

BLACK,TRIM2#

 1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-0D570C0

NSP151..SED

BLACK,TRIM2#

 1
73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR
73719-0D010

NSP151

 2
73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR
73719-0D010

NSP151

 2
Common parts
90105-T0063
93560-54012
Linked diagrams
6403

(2101- )

Click highlighted areas on diagram

FRONT SEAT BELT

diagram 73023 73024 73119 73200A 73210 732140K010 73219 73220 73230 73240 9010510523 9010511058 90105T0056 90105T0063 9010911060 90109T0042 90178T0017 9017911010 9155380612
Part # Description Qty Price
Common parts
73214-0K010
90105-10523
90105-11058
90105-T0056
90105-T0063
90109-11060
90109-T0042
90178-T0017
90179-11010
91553-80612

(2101- )4D

Click highlighted areas on diagram

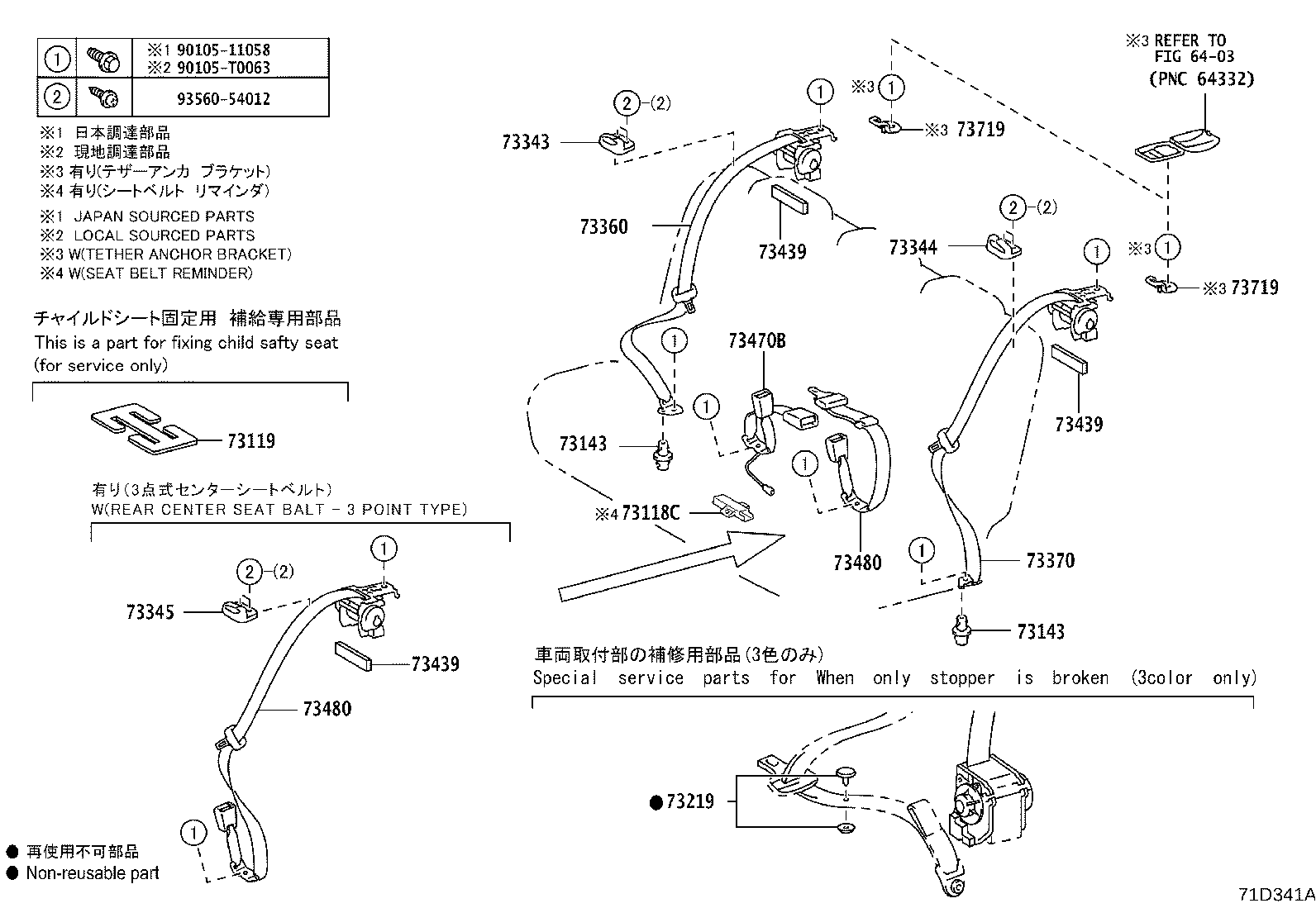

REAR SEAT BELT

diagram 6403 73118C 73119 73143 73143 73219 73343 73344 73345 73360 73370 73439 73439 73439 73470B 73480 73480 73719 73719 9010511058 90105T0063 9356054012
Part # Description Qty Price
Common parts
90105-11058
90105-T0063
93560-54012
Linked diagrams
6403
