NSP151R-BEXRKE (2020)

Toyota Vios/Yaris

Production Dec 2020 - Sep 9999
Engine 2NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2012- )

Click highlighted areas on diagram

CLIP & SEAT EDGE WIRE

diagram 7114930050 9046816019 9046818008
Part # Description Qty Price
Common parts
71149-30050
90468-16019
90468-18008

(2012- )SED

Click highlighted areas on diagram

FOLDING SEAT

diagram 66990 71017 71018 7104 7104 7104 7104 71075B 71077S 71078S 71480A 71480A 71611 71651S 71652S 71931A 71931A 71931A 71931A 71931A 71931A 71940A 71940A 71960B 72603 72604 72651D 72651E 72693 72830 72831B 72868B 73528 73707 90105T0175 90105T0175 90105T0175 9010908163 90119T0340 90119T0340 90119T0340 90119T0458 90119T0458 9020610016 9038610033
Part # Description Qty Price
66990 - HOLDER ASSY, CUP
66991-0D040C0

NSP151..SED..(G,R)

BLACK,TRIM2#

 1
71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH
71017-0D620

NSP151..SED..(G,R)

 1
71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH
71018-0D350

NSP151..SED..(G,R)

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-0U240C1

NSP151..SED..(D,R)

BLACK/GRAY,TRIM2#

 1
71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)
71077-0UC40C2

NSP151..SED..R

BLACK/GRAY,TRIM2#

 1
71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71078-0DP60C2

NSP151..SED..R

BLACK/GRAY,TRIM2#

 1
71480A - CLIP (FOR REAR SEAT BACK)
90467-T0045C0

NSP151..HB;NSP151..SED..(G,R)

BLACK

 2
90467-08186C3

NSP151..HB;NSP151..SED..(G,R)

BLACK

 2
71480A - CLIP (FOR REAR SEAT BACK)
90467-T0045C0

NSP151..HB;NSP151..SED..(G,R)

BLACK

 2
90467-08186C3

NSP151..HB;NSP151..SED..(G,R)

BLACK

 2
71611 - PAD, REAR SEAT CUSHION
71503-0D470

NSP151..SED

 1
71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)
71651-0D370

NSP151..SED..(G,R)

 1
71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71652-0D250

NSP151..SED..(G,R)

 1
71931A - SUPPORT, REAR SEAT HEADREST
71930-02370C1

NSP151..HB;NSP151..SED..(D,R)

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71931-02130C1

NSP151..HB;NSP151..SED..(D,R)

W/O(LOCK),BLACK,TRIM2#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71930-02370C1

NSP151..HB;NSP151..SED..(D,R)

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71931-02130C1

NSP151..HB;NSP151..SED..(D,R)

W/O(LOCK),BLACK,TRIM2#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71930-02370C1

NSP151..HB;NSP151..SED..(D,R)

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71931-02130C1

NSP151..HB;NSP151..SED..(D,R)

W/O(LOCK),BLACK,TRIM2#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71930-02370C1

NSP151..HB;NSP151..SED..(D,R)

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71931-02130C1

NSP151..HB;NSP151..SED..(D,R)

W/O(LOCK),BLACK,TRIM2#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71930-02370C1

NSP151..HB;NSP151..SED..(D,R)

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71931-02130C1

NSP151..HB;NSP151..SED..(D,R)

W/O(LOCK),BLACK,TRIM2#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71930-02370C1

NSP151..HB;NSP151..SED..(D,R)

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71931-02130C1

NSP151..HB;NSP151..SED..(D,R)

W/O(LOCK),BLACK,TRIM2#

 3
71940A - HEADREST ASSY, REAR SEAT
71940-0DM00C2

NSP151..SED..(D,R)

BLACK/GRAY,TRIM2#

 2
71940A - HEADREST ASSY, REAR SEAT
71940-0DM00C2

NSP151..SED..(D,R)

BLACK/GRAY,TRIM2#

 2
71960B - HEADREST ASSY, REAR SEAT, CENTER
71960-0D230C3

NSP151..SED..D

BLACK/GRAY,TRIM2#

 1
71960-0D250C7

NSP151..SED..R

BLACK/BLUE,TRIM2#

 1
72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH
72630-0D080

NSP151..HB;NSP151..SED..(G,R)

 1
72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH
72640-0D080

NSP151..HB;NSP151..SED..(G,R)

 1
72651D - ROD, REAR SEAT BACK LOCK, RH
72651-0D070C0

NSP151..SED..(G,R)

BLACK,TRIM2#

 1
72651E - ROD, REAR SEAT BACK LOCK, LH
72652-0D070C0

NSP151..SED..(G,R)

BLACK,TRIM2#

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-12080

NSP151

 2
72830 - ARMREST ASSY, REAR SEAT, CENTER
72830-0D300B0

NSP151..SED..R

GRAY/BLACK,TRIM2#

 1
72831B - PLATE, REAR SEAT CENTER ARMREST, NO.1
72831-47010

NSP151..SED..(G,R)

 1
72868B - COVER, CENTER ARMREST HINGE
72868-0D020C0

NSP151..SED..(G,R)

BLACK,TRIM2#

 1
73528 - CARPET, REAR SEAT SUB FLOOR, REAR
73528-0D110C0

NSP151..HB;NSP151..SED..(G,R)

BLACK,TRIM2#

 1
73707 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, INNER
73705-0D370

NSP151..SED..(G,R)

 1
73705-0D360

NSP151..SED..D

 1
Common parts
90105-T0175
90109-08163
90119-T0340
90119-T0458
90206-10016
90386-10033
Linked diagrams
7104

(2012- )SED

Click highlighted areas on diagram

FIXED SEAT

diagram 7104 7104 7104 7104 71075B 71077B 71398A 71611 71651B 71931A 71931A 71931A 71931A 71931A 71931A 71940A 71940A 71960B 72693 73707 90119T0329 90119T0340 90119T0340 90119T0340
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-0U240C1

NSP151..SED..(D,R)

BLACK/GRAY,TRIM2#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-0UC30C2

NSP151..SED..D

BLACK/GRAY,TRIM2#

 1
71398A - HOLDER, REAR SEAT BACK
71398-02040

NSP151..SED..D

 3
71611 - PAD, REAR SEAT CUSHION
71503-0D470

NSP151..SED

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71651-0D730

NSP151..SED..D

 1
71931A - SUPPORT, REAR SEAT HEADREST
71930-02370C1

NSP151..HB;NSP151..SED..(D,R)

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71931-02130C1

NSP151..HB;NSP151..SED..(D,R)

W/O(LOCK),BLACK,TRIM2#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71930-02370C1

NSP151..HB;NSP151..SED..(D,R)

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71931-02130C1

NSP151..HB;NSP151..SED..(D,R)

W/O(LOCK),BLACK,TRIM2#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71930-02370C1

NSP151..HB;NSP151..SED..(D,R)

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71931-02130C1

NSP151..HB;NSP151..SED..(D,R)

W/O(LOCK),BLACK,TRIM2#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71930-02370C1

NSP151..HB;NSP151..SED..(D,R)

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71931-02130C1

NSP151..HB;NSP151..SED..(D,R)

W/O(LOCK),BLACK,TRIM2#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71930-02370C1

NSP151..HB;NSP151..SED..(D,R)

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71931-02130C1

NSP151..HB;NSP151..SED..(D,R)

W/O(LOCK),BLACK,TRIM2#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71930-02370C1

NSP151..HB;NSP151..SED..(D,R)

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71931-02130C1

NSP151..HB;NSP151..SED..(D,R)

W/O(LOCK),BLACK,TRIM2#

 3
71940A - HEADREST ASSY, REAR SEAT
71940-0DM00C2

NSP151..SED..(D,R)

BLACK/GRAY,TRIM2#

 2
71940A - HEADREST ASSY, REAR SEAT
71940-0DM00C2

NSP151..SED..(D,R)

BLACK/GRAY,TRIM2#

 2
71960B - HEADREST ASSY, REAR SEAT, CENTER
71960-0D230C3

NSP151..SED..D

BLACK/GRAY,TRIM2#

 1
71960-0D250C7

NSP151..SED..R

BLACK/BLUE,TRIM2#

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-12080

NSP151

 2
73707 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, INNER
73705-0D370

NSP151..SED..(G,R)

 1
73705-0D360

NSP151..SED..D

 1
Common parts
90119-T0329
90119-T0340
Linked diagrams
7104

(2101- )

Click highlighted areas on diagram

CLIP

diagram 7114930050 9046816019 9046818008
Part # Description Qty Price
Common parts
71149-30050
90468-16019
90468-18008

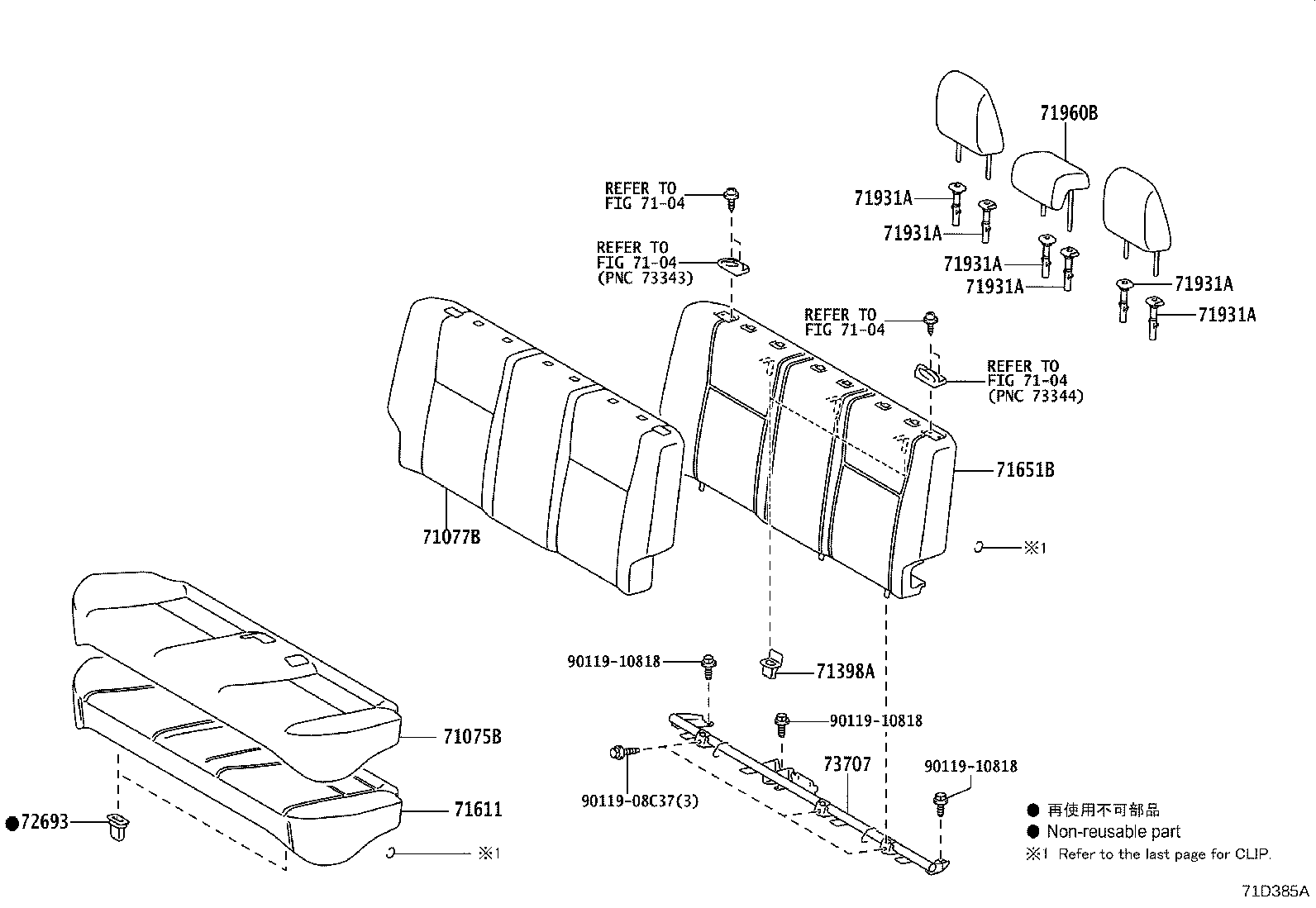

ILLUST NO. 1 OF 3(2101- )4D

Click highlighted areas on diagram

FIXED SEAT

diagram 7104 7104 7104 7104 71075B 71077B 71398A 71611 71651B 71931A 71931A 71931A 71931A 71931A 71931A 71960B 72693 73707 9011908C37 9011910818 9011910818 9011910818
Part # Description Qty Price
Common parts
90119-08C37
90119-10818
Linked diagrams
7104
