NSP151R-BEXRKE (2020)

Toyota Vios/Yaris

Production Dec 2020 - Sep 9999
Engine 2NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(2012- )

Click highlighted areas on diagram

RH SEAT

diagram 71013S 7104 7104 7104 71071S 71073S 71511S 71537G 71538A 71551S 71811D 71861 71873 71873B 71874A 71910A 71931 71931 72010 72125A 72125D 72137 72147 72211C 72265 72266 72494 72525A 73910A 90105T0176 90105T0176 90107T0003 90107T0003 90107T0003 9011910601 9011910601 9016740044 9016740044 9016850078 9417060600 9418560600
Part # Description Qty Price
71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH
71013-0D260

NSP151

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-0UJ10C2

NSP151..SED..(D,R)

BLACK/GRAY,TRIM2#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-0UM00C1

NSP151..SED..(D,R)

BLACK/GRAY,TRIM2#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-0DC20

NSP151..HB;NSP151..SED..(D,R)

 1
71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)
71537-0D130C0

NSP151..HB;NSP151..SED..(D,R)

BLACK,TRIM2#

 1
71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)
71538-0D120C0

NSP151..HB;NSP151..SED..(D,R)

BLACK,TRIM2#

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-0DB60

NSP151..HB;NSP151..SED..(D,R)

 1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-0D500C0

NSP151..HB;NSP151..SED..(D,R)

BLACK,TRIM2#

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-0D400C0

NSP151..HB;NSP151..SED..(D,R)

BLACK,TRIM2#

 1
71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-0D350

NSP151

 1
71873B - SHIELD, FRONT SEAT CUSHION, LOWER RH, NO.1
71873-06530

NSP151

 1
71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-06550

NSP151

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-0DA40C5

NSP151..SED..(D,R)

BLACK/GRAY,TRIM2#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-02370C1

NSP151..HB;NSP151..SED..(D,R)

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 2
71931-02130C1

NSP151..HB;NSP151..SED..(D,R)

W/O(LOCK),BLACK,TRIM2#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-02370C1

NSP151..HB;NSP151..SED..(D,R)

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 2
71931-02130C1

NSP151..HB;NSP151..SED..(D,R)

W/O(LOCK),BLACK,TRIM2#

 2
72010 - ADJUSTER ASSY, FRONT SEAT, RH
72010-0D760

NSP151

 1
72125A - COVER, SEAT TRACK, UPPER REAR
72125-0D030

NSP151

 2
72125D - COVER, SEAT TRACK, UPPER REAR NO.2
72125-0D080

NSP151

 2
72137 - COVER, SEAT TRACK, OUTER RH
72137-0D100C0

NSP151..HB;NSP151..SED..(D,R)

BLACK,TRIM2#

 1
72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH
72147-0D090

NSP151

 1
72211C - HANDLE, SEAT TRACK ADJUSTING
72211-0D310

NSP151

 2
72265 - COVER, SEAT TRACK UPPER RAIL, RH
72265-0D080

NSP151

 2
72266 - COVER, SEAT TRACK UPPER RAIL, LH
72265-0D080

NSP151

 2
72494 - HANDLE, VERTICAL ADJUSTING, RH
72494-0D110C0

NSP151..HB;NSP151..SED..(D,R)

BLACK,TRIM2#

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-06130C0

NSP151..HB;NSP151..SED..(D,R)

BLACK,TRIM2#

 1
73910A - AIR BAG ASSY, FRONT SEAT, RH
73910-0D100

NSP151

 1
Common parts
90105-T0176
90107-T0003
90119-10601
90167-40044
90168-50078
94170-60600
94185-60600
Linked diagrams
7104

ILLUST NO. 2 OF 2(2012- )

Click highlighted areas on diagram

LH SEAT

diagram 71014S 7104 7104 7104 71072S 71074S 71122 71512S 71537H 71538B 71552S 71812D 71862 71910A 71931 71931 72020 72125A 72125D 72138 72148 72211C 72265 72266 72526A 73920A 90105T0176 90105T0176 90107T0003 90107T0003 90107T0003 9011910601 9011910601 9016740044 9417060600 9418560600
Part # Description Qty Price
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-0D270

NSP151

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-0UF10C3

NSP151..SED..(D,R)

BLACK/GRAY,TRIM2#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-0UG30C1

NSP151..SED..(D,R)

BLACK/GRAY,TRIM2#

 1
71122 - BRACKET, FRONT SEAT CUSHION, LH
71122-0D130

NSP151

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-0D240

NSP151..HB;NSP151..SED..(D,R)

 1
71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)
71537-0D140C0

NSP151..HB;NSP151..SED..(D,R)

BLACK,TRIM2#

 1
71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
71538-0D130C0

NSP151..HB;NSP151..SED..(D,R)

BLACK,TRIM2#

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-0DB10

NSP151..HB;NSP151..SED..(D,R)

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-0D500C0

NSP151..HB;NSP151..SED..(D,R)

BLACK,TRIM2#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-0D400C0

NSP151..HB;NSP151..SED..(D,R)

BLACK,TRIM2#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-0DA40C5

NSP151..SED..(D,R)

BLACK/GRAY,TRIM2#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-02370C1

NSP151..HB;NSP151..SED..(D,R)

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 2
71931-02130C1

NSP151..HB;NSP151..SED..(D,R)

W/O(LOCK),BLACK,TRIM2#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-02370C1

NSP151..HB;NSP151..SED..(D,R)

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 2
71931-02130C1

NSP151..HB;NSP151..SED..(D,R)

W/O(LOCK),BLACK,TRIM2#

 2
72020 - ADJUSTER ASSY, FRONT SEAT, LH
72020-0D481

NSP151

 1
72125A - COVER, SEAT TRACK, UPPER REAR
72125-0D030

NSP151

 2
72125D - COVER, SEAT TRACK, UPPER REAR NO.2
72125-0D080

NSP151

 2
72138 - COVER, SEAT TRACK, OUTER LH
72138-0D090C0

NSP151..HB;NSP151..SED..(D,R)

BLACK,TRIM2#

 1
72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH
72148-0D100

NSP151

 1
72211C - HANDLE, SEAT TRACK ADJUSTING
72211-0D310

NSP151

 2
72265 - COVER, SEAT TRACK UPPER RAIL, RH
72265-0D080

NSP151

 2
72266 - COVER, SEAT TRACK UPPER RAIL, LH
72265-0D080

NSP151

 2
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-0D270C0

NSP151..HB;NSP151..SED..(D,R)

BLACK,TRIM2#

 1
73920A - AIR BAG ASSY, FRONT SEAT, LH
73920-0D100

NSP151

 1
Common parts
90105-T0176
90107-T0003
90119-10601
90167-40044
94170-60600
94185-60600
Linked diagrams
7104

(2012- )

Click highlighted areas on diagram

CLIP & SEAT EDGE WIRE

diagram 7114930050 9046816019 9046818008
Part # Description Qty Price
Common parts
71149-30050
90468-16019
90468-18008

(2101- )

Click highlighted areas on diagram

CLIP

diagram 7114930050 9046816019 9046818008
Part # Description Qty Price
Common parts
71149-30050
90468-16019
90468-18008

(2101- )

Click highlighted areas on diagram

LH SEAT

diagram 71014S 7104 7104 7104 71072S 71074S 71122 71512S 71537H 71538B 71552S 71812D 71862 71873B 71874 71874A 71910A 71931 71931 72020 72125A 72125D 72138 72148 72211C 72266 72495 72526A 7270252030 7270252030 7270252030 73920A 9011910601 9011910601 9016740044 9016740044 9016850078 9155310820 9155310820 9417060600 9418560600
Part # Description Qty Price
Common parts
72702-52030
90119-10601
90167-40044
90168-50078
91553-10820
94170-60600
94185-60600
Linked diagrams
7104

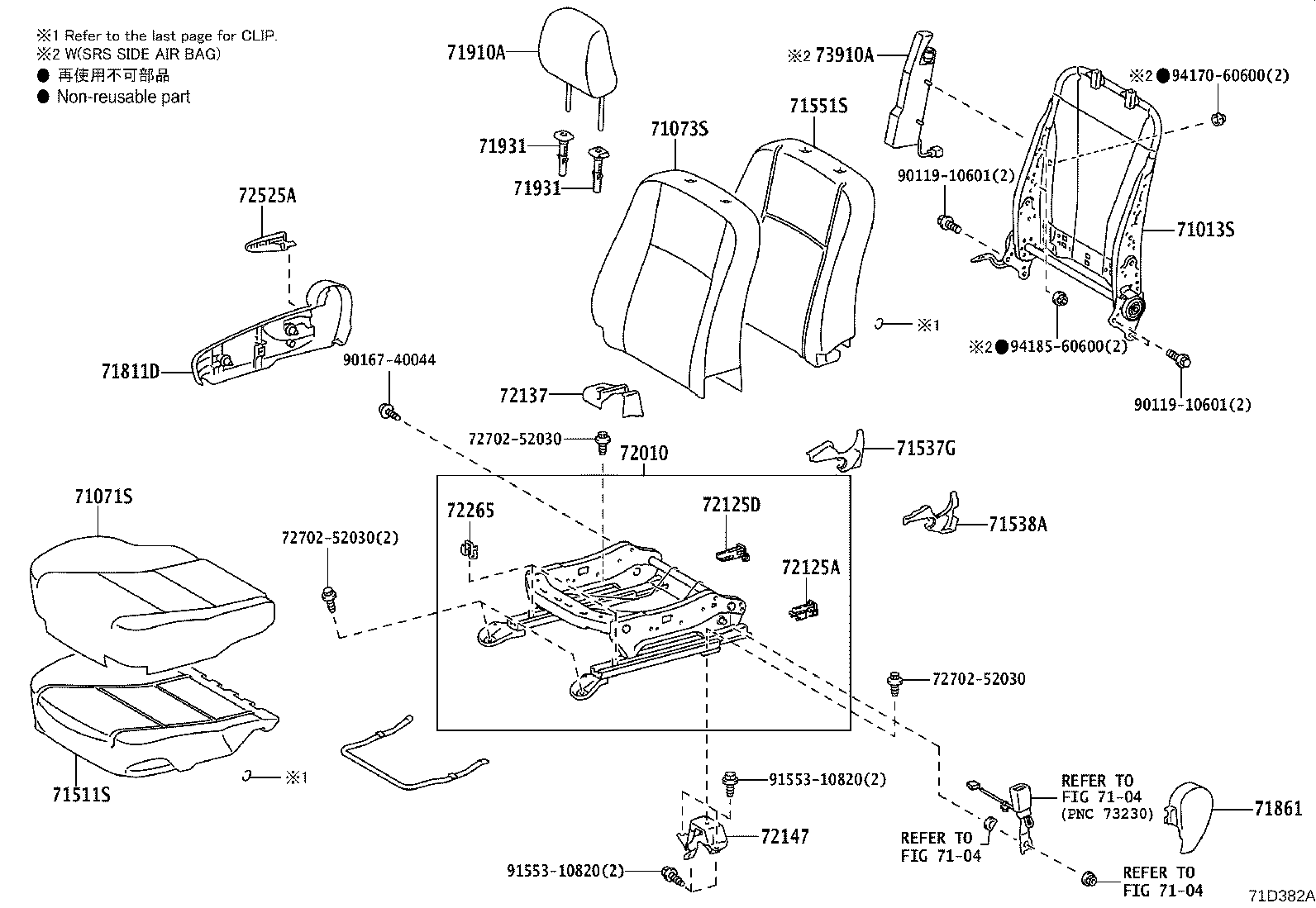

(2101- )

Click highlighted areas on diagram

RH SEAT

diagram 71013S 7104 7104 7104 71071S 71073S 71511S 71537G 71538A 71551S 71811D 71861 71910A 71931 71931 72010 72125A 72125D 72137 72147 72265 72525A 7270252030 7270252030 7270252030 73910A 9011910601 9011910601 9016740044 9155310820 9155310820 9417060600 9418560600
Part # Description Qty Price
Common parts
72702-52030
90119-10601
90167-40044
91553-10820
94170-60600
94185-60600
Linked diagrams
7104
