NSP151R-BEXRKE (2020)
Toyota Vios/Yaris
Production
Dec 2020
-
Sep 9999
Engine
2NRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(2012- )SED
Click highlighted areas on diagram
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-0D480 |
NSP151..SED |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-0D480 |
NSP151..SED |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-K0030 |
NSP151 |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-K0030 |
NSP151 |
1 | ||
| 67407H - BAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, RH | ||||
| 67407-0D270 |
NSP151..SED |
1 | ||
| 67408H - BAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, LH | ||||
| 67408-0D270 |
NSP151..SED |
1 | ||
| 67811A - PAD, REAR DOOR SILENCER | ||||
| 67811-0D010 |
NSP151..SED |
2 | ||
| 67837C - SEAL, REAR DOOR DUST PROOF | ||||
| 67837-0K090 |
NSP151 |
6 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-0D670 |
NSP151 |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-0D670 |
NSP151 |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
NSP151 |
16 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
NSP151 |
16 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-0D250 |
NSP151..SED |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-0D250 |
NSP151..SED |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68130-0D470 |
NSP151..SED |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68140-0D470 |
NSP151..SED |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-0D330 |
NSP151..SED |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-0D330 |
NSP151..SED |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-0D300 |
NSP151..SED |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-0D260 |
NSP151..SED |
1 | ||
| 68180C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH | ||||
| 68180-0D431 |
NSP151 |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-0D240 |
NSP151..SED |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-0D240 |
NSP151..SED |
1 | ||
| 68230C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH | ||||
| 68230-0D431 |
NSP151 |
1 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-0D170 |
NSP151 |
2 | ||
| 75923 - TAPE, BLACK OUT, NO.2 RH | ||||
| 75923-0D290 |
NSP151..SED |
1 | ||
| 75924 - TAPE, BLACK OUT, NO.2 LH | ||||
| 75924-0D290 |
NSP151..SED |
1 | ||
| Common parts | ||||
| 90109-T0011 | ||||
| 90119-T0141 | ||||
| 90151-T0003 | ||||
| 90950-06115 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 6707 | ||||
| 7503 | ||||
ILLUST NO. 2 OF 2(2012- )
Click highlighted areas on diagram
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-0DJ90C0 |
NSP151..D BLACK,TRIM2# |
1 | ||
| 67630-0DK01C0 |
NSP151..G,R BLACK,TRIM2# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-T0019 |
NSP151 |
10 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-T0019 |
NSP151 |
10 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-T0019 |
NSP151 |
10 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-T0021 |
NSP151 |
4 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-T0021 |
NSP151 |
4 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-0DJ90C0 |
NSP151..D BLACK,TRIM2# |
1 | ||
| 67640-0DK01C0 |
NSP151..G,R BLACK,TRIM2# |
1 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-0D040 |
NSP151 |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-0D040 |
NSP151 |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-0D321 |
NSP151 |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-0D321 |
NSP151 |
1 | ||
| Common parts | ||||
| 90164-50031 | ||||
| 90189-T0017 | ||||
| Linked diagrams | ||||
| 7401 | ||||

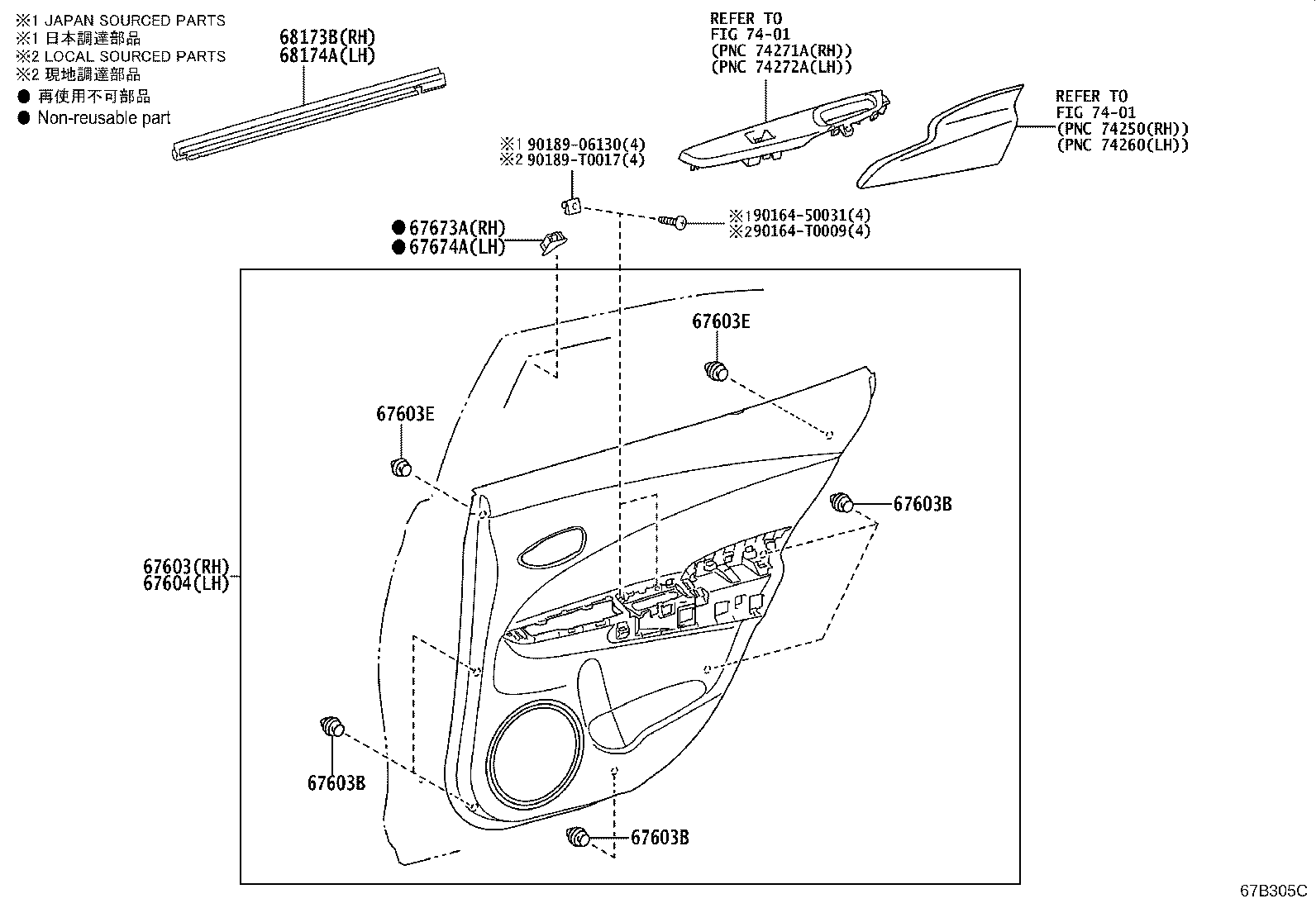

ILLUST NO. 2 OF 2(2101- )
Click highlighted areas on diagram
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90164-50031 | ||||
| 90164-T0009 | ||||
| 90189-06130 | ||||
| 90189-T0017 | ||||
| Linked diagrams | ||||
| 7401 | ||||

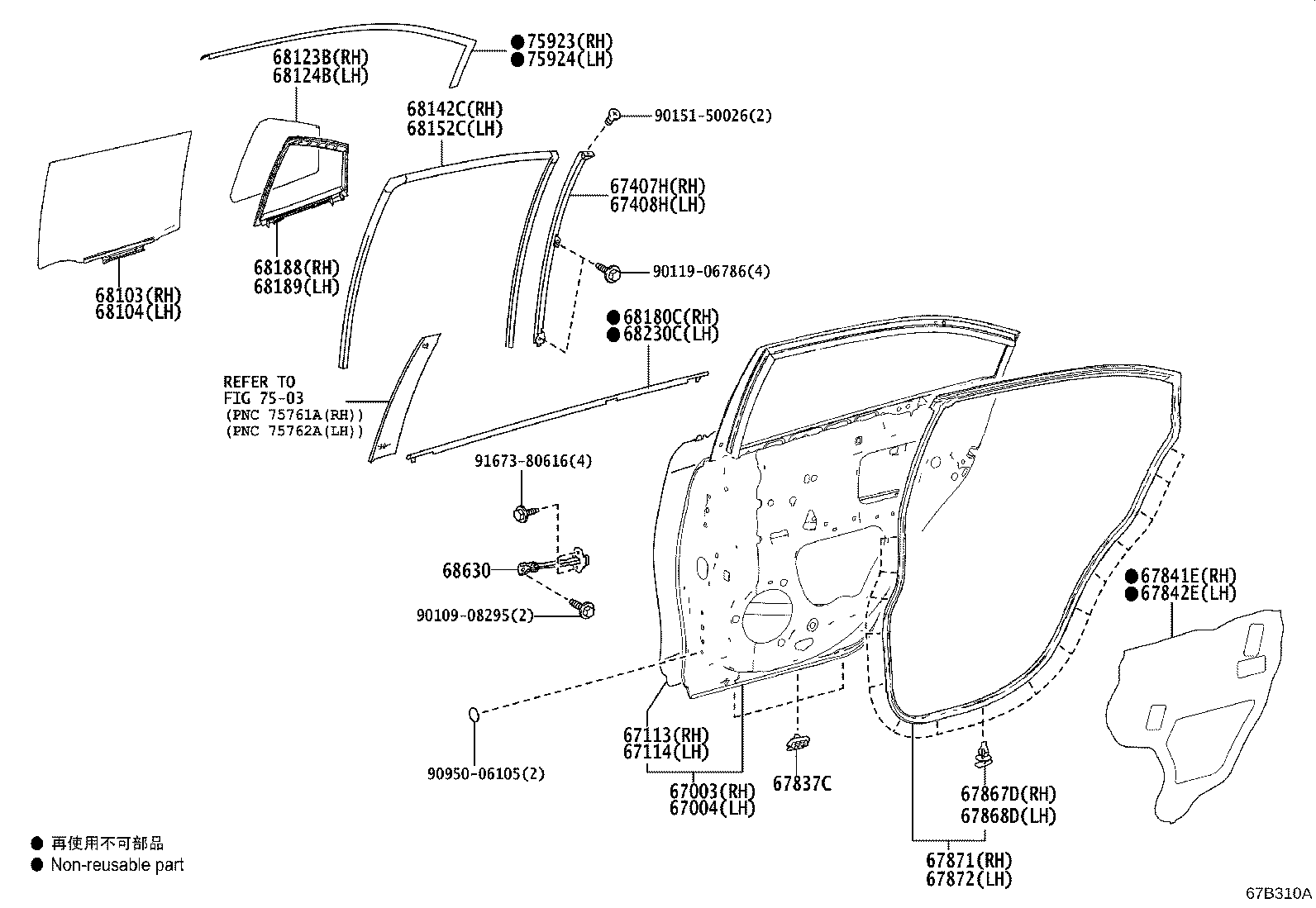

ILLUST NO. 1 OF 2(2101- )4D
Click highlighted areas on diagram
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-08295 | ||||
| 90119-06786 | ||||
| 90151-50026 | ||||
| 90950-06105 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 7503 | ||||
