NSP151R-BEXRKE (2020)
Toyota Vios/Yaris
Production
Dec 2020
-
Sep 9999
Engine
2NRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2012- )

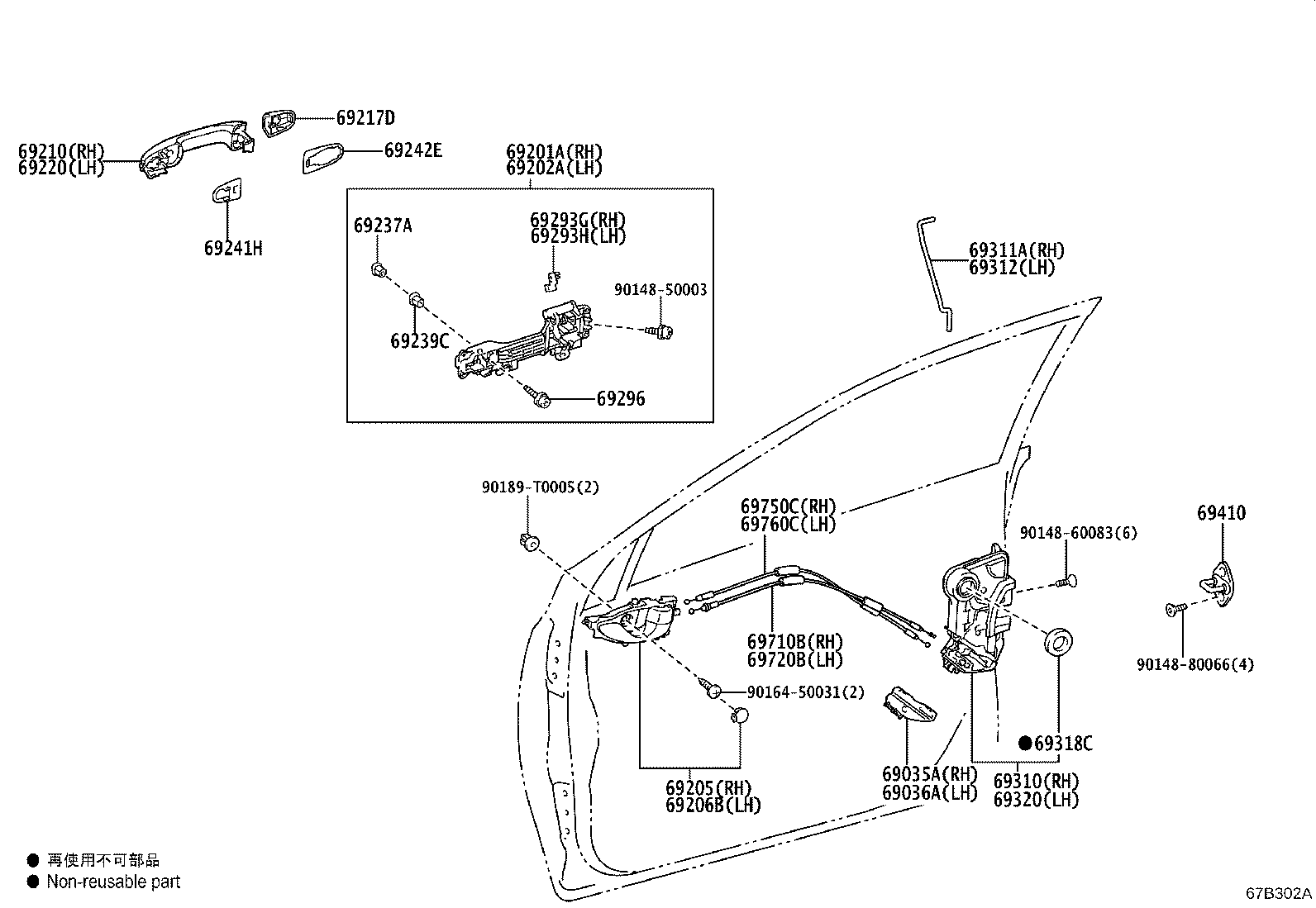

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-0K090 |
NSP151 |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-0K090 |
NSP151 |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-0D380C0 |
NSP151..D,R BLACK,TRIM2# |
1 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-0D380C0 |
NSP151..D,R BLACK,TRIM2# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-0D340J1 |
NSP151..SED..(D,R) DK.BLUE M.M.,8W7 |
1 | ||
| 69210-0D340D2 |
NSP151..SED..(D,R) RED M.M.,3R3 |
1 | ||
| 69210-0D340B0 |
NSP151..SED..(D,R) SILVER ME.,1D4 |
1 | ||
| 69210-0D340E0 |
NSP151..SED..(D,R) ORANGE ME.,4R8 |
1 | ||
| 69210-0D340A3 |
NSP151..SED..(D,R) PLATINUM WHITE PEARL MC.,089 |
1 | ||
| 69210-0D340C2 |
NSP151..D,R ATTITUDE BLACK MC.,218 |
1 | ||
| 69217D - COVER, FRONT DOOR OUTSIDE HANDLE | ||||
| 69217-0K923 |
NSP151..D,R LESS COLOR,DRIVER SIDE |
1 | ||
| 69217-0K924 |
NSP151..D,R LESS COLOR,PASSENGER SIDE |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69210-0K938 |
NSP151..D,R PAINT REQ. |
1 | ||
| 69237A - NUT, FRONT DOOR HANDLE | ||||
| 69237-0K060 |
NSP151 |
1 | ||
| 69239C - BUSH, FRONT DOOR HANDLE | ||||
| 69239-0K040 |
NSP151 |
1 | ||
| 69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-0K041 |
NSP151..D,R |
2 | ||
| 69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-0K030 |
NSP151..D,R |
2 | ||
| 69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69293-0K070 |
NSP151 |
1 | ||
| 69293H - SNAP, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69293-0K080 |
NSP151 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-0D370 |
NSP151 |
1 | ||
| 69311A - ROD, FRONT DOOR LOCK OPEN, RH | ||||
| 69311-0D230 |
NSP151 |
1 | ||
| 69312 - ROD, FRONT DOOR LOCK OPEN, LH | ||||
| 69312-0D230 |
NSP151 |
1 | ||
| 69318C - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
NSP151 |
2 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-0D410 |
NSP151 |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-0D070 |
NSP151 |
2 | ||
| 69710D - CABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVE | ||||
| 69710-0D280 |
NSP151 |
1 | ||
| 69720D - CABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVE | ||||
| 69710-0D280 |
NSP151 |
1 | ||
| 69750E - CABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK | ||||
| 69750-0D220 |
NSP151 |
1 | ||
| 69760B - CABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK | ||||
| 69750-0D220 |
NSP151 |
1 | ||
| Common parts | ||||
| 69296-0K040 | ||||
| 90148-50003 | ||||
| 90148-60022 | ||||
| 90148-T0015 | ||||
| 90164-50031 | ||||
| 90189-T0005 | ||||
(2101- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90148-50003 | ||||
| 90148-60083 | ||||
| 90148-80066 | ||||
| 90164-50031 | ||||
| 90189-T0005 | ||||
